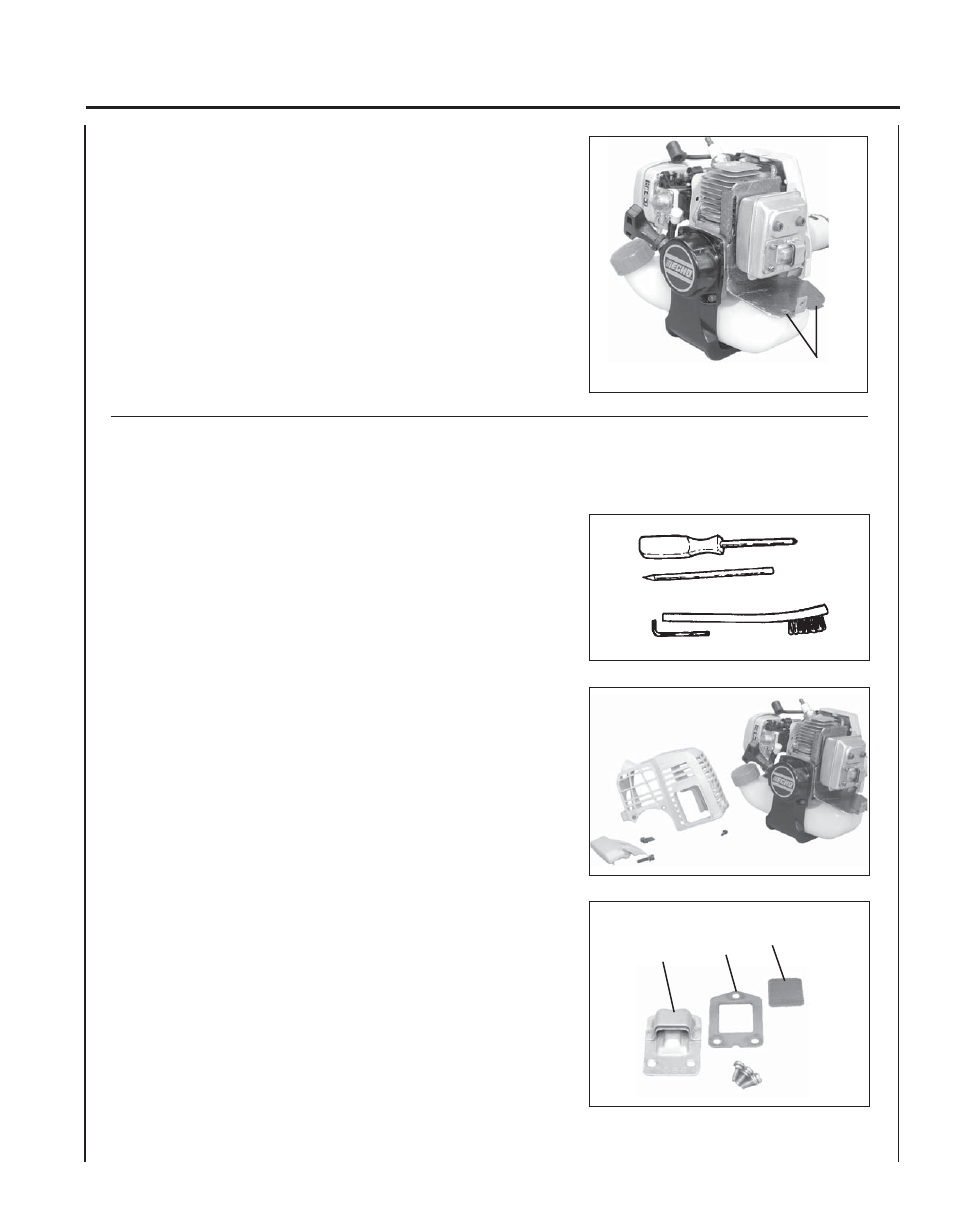

4. Use the wooden stick or brush to remove dirt from the cylinder fins.
5. Install engine cover properly, placing fuel vent tube into engine
cover and deflector shield tabs (A) into slots in engine cover.
6. Secure engine cover with three (3) screws.
7. Install top guard, and secure with one (1) screw.
8. Connect spark plug lead to spark plug.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft metal brush, Wooden
carbon scraper, 3 and 4 mm Hex Wrench
Parts Required: Spark arrestor screen, Gasket
1. Disconnect spark plug lead from spark plug.
2. Remove (1) screw from top guard, and remove guard.
3. Remove (3) screws from engine cover, and remove cover.
4. Remove screen holder (A), gasket (B) and screen (C) from muffler
body.
5. Clean carbon deposits from muffler components.
6. Replace screen if it is cracked, plugged or has holes burned
through.
7. Reassemble in reverse order of removal. Make sure screen is
positioned properly before tightening screws.
A
B
C
A
