30

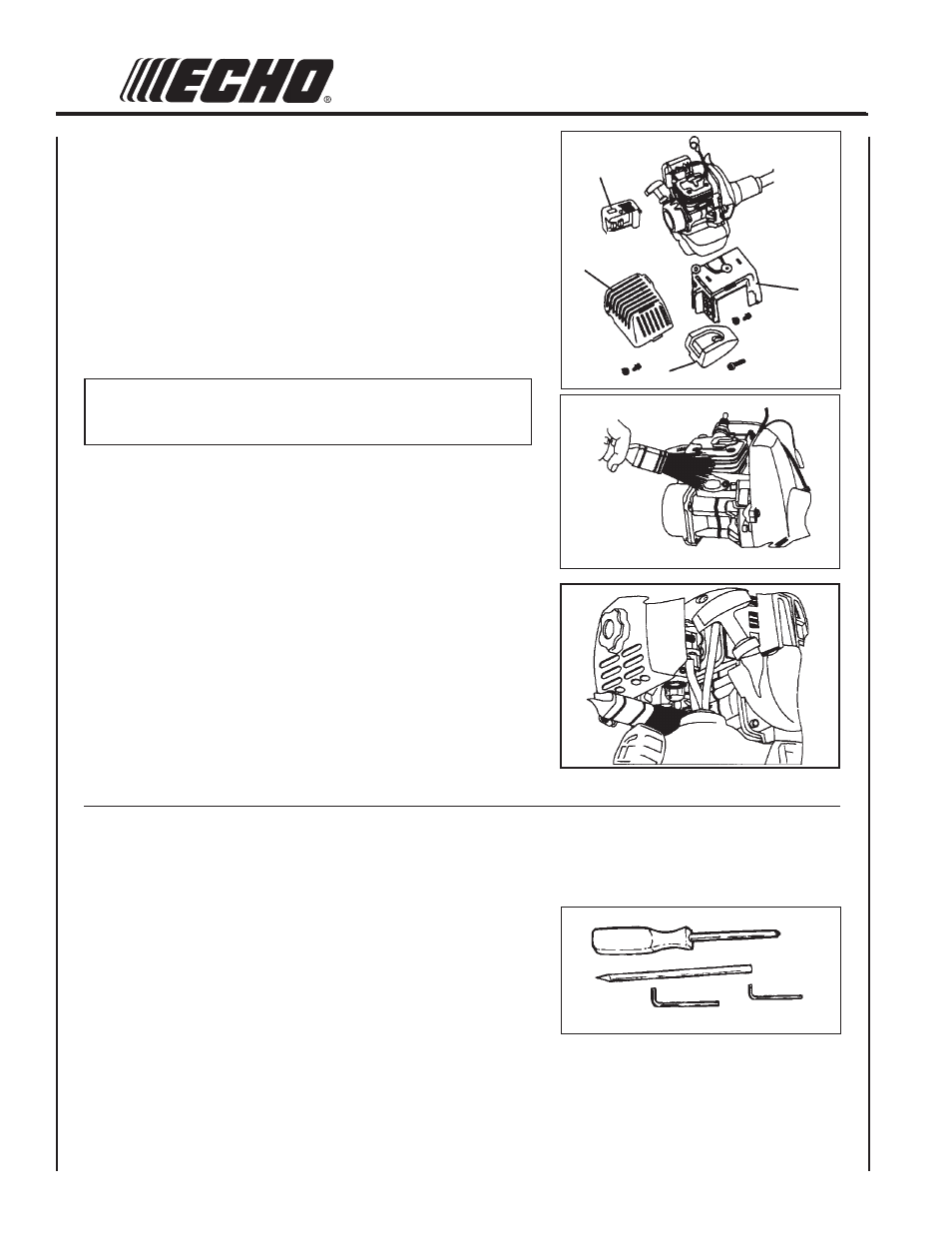

1. Remove air filter cover (A).
2. Remove spark plug lead.
3. Remove two (2) muffler cover screws and muffler cover (B).
4. Remove screw and arm rest (C).
5. Remove two (2) front cylinder cover screws and cylinder cover (D).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
6. Use brush to remove dirt from the cylinder fins.
7. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
EXHAUST SYSTEM
Spark Arrester Screen
Level 2.
Tools Required: Cross Head Screwdriver, Wooden carbon scraper,
3 and 4 mm Hex Wrench
Parts Required: Spark Arrestor Screen P/N 14586240630,
Gasket P/N 14586642031.
A
B
C
D
