- 17 -
NOTE: If time does not permit charging the battery, or if charging equipment is
not available, connect the negative battery cables and run the vehicle
continuously for 20 to 30 minutes to sufficiently charge the battery.
3.6 INSTALL MOTION CONTROL LEVERS
3.6.1
Loosen and remove the two (2) 3/8”x1” bolts and spring disk washers which attach
the motion control levers to the control arm shafts for shipping and the two (2) 3/8”
x 1” bolts and spring disk washers which are screwed into the control arm shafts.
a)
Install the left motion control lever onto the control arm shaft (See Figure 5) on
the left side of the console. Place the lever (with the mounting plate towards the
rear) on the outside of the control arm shaft and secure with the bolts and
washers. Position the lever so the bolts are in the center of the slots on the lever
mounting plate and tighten until snug. Repeat on opposite side of unit.
NOTE: There are two lever height options available. Place the levers in the top
two holes to increase height of the levers, or the bottom two holes to decrease
the height of the levers.
If the levers do not align with each other when in the neutral position (See Figure
6), loosen the hardware and make the appropriate adjustment by sliding/tilting the
lever(s) forward or backward until properly aligned and tighten hardware.

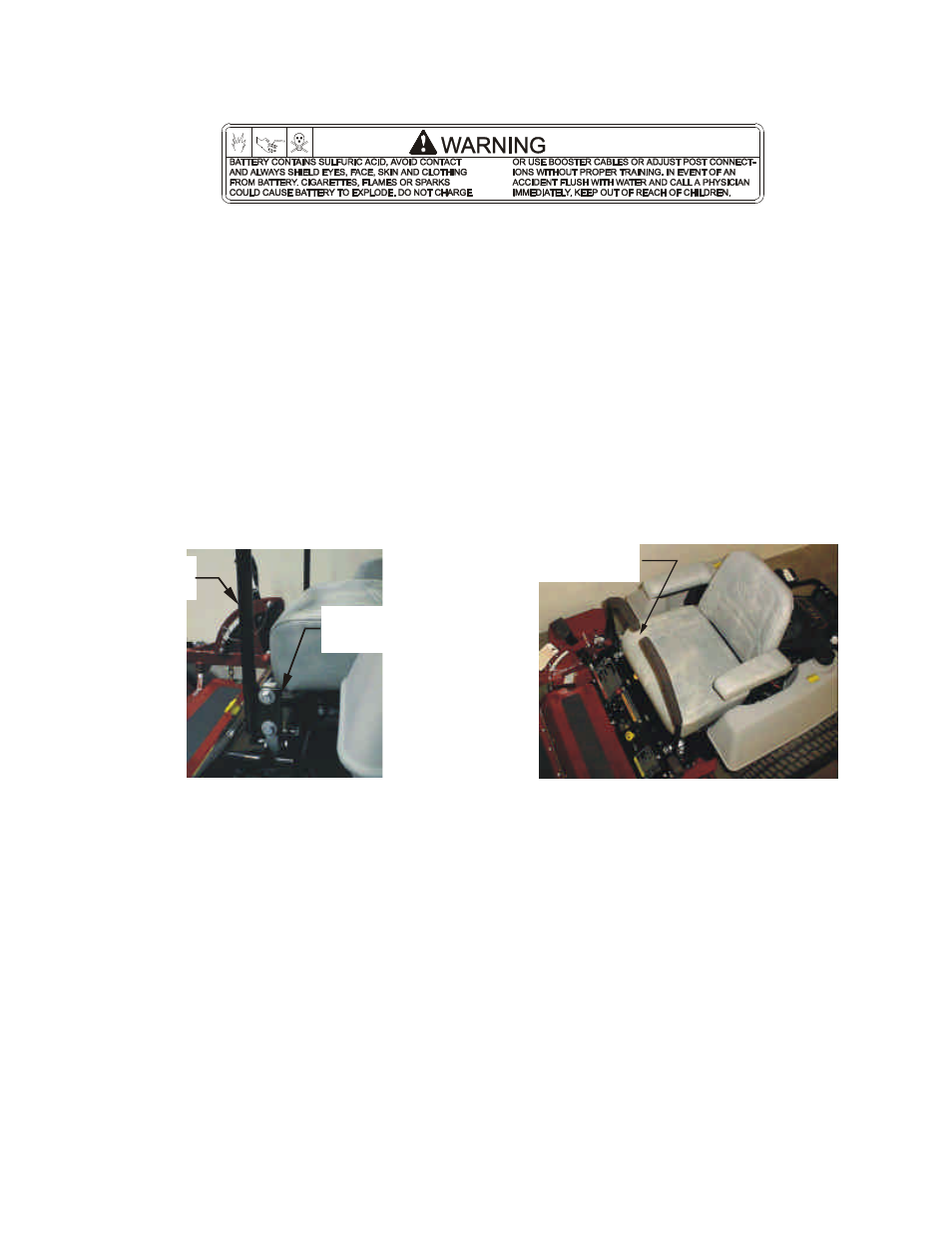

FIGURE 5
FIGURE 6
CONTROL ARM SHAFT
LEVER ALIGNMENT
b)
If the ends of the levers hit against each other while in the drive position (levers
rotated in as far as possible), make adjustments by moving the levers outwards
to the neutral lock position and carefully bend them outward. Move them back to
the drive position and check for clearance, repeat if necessary.
3.7 POSITION DISCHARGE CHUTE.
3.7.1
Loosen two (2) 5/16” nyloc nuts attaching discharge chute. Lower the discharge
chute into position. Retighten nyloc nuts until chute is snug but can pivot freely.
3.8 SERVICE ENGINE.
Engine is shipped with oil; check oil level and if necessary and fill to the
appropriate level with oil as specified in Engine Owner’s Manual.
3.9 SERVICE ENGINE COOLANT
Machine is shipped filled with engine coolant.
LEVERS IN
ALIGNMENT
MOUNT PLATE TO
THE REAR & OUTSIDE
OF ARM SHAFT
MOTION
CONTROL
LEVER
