26

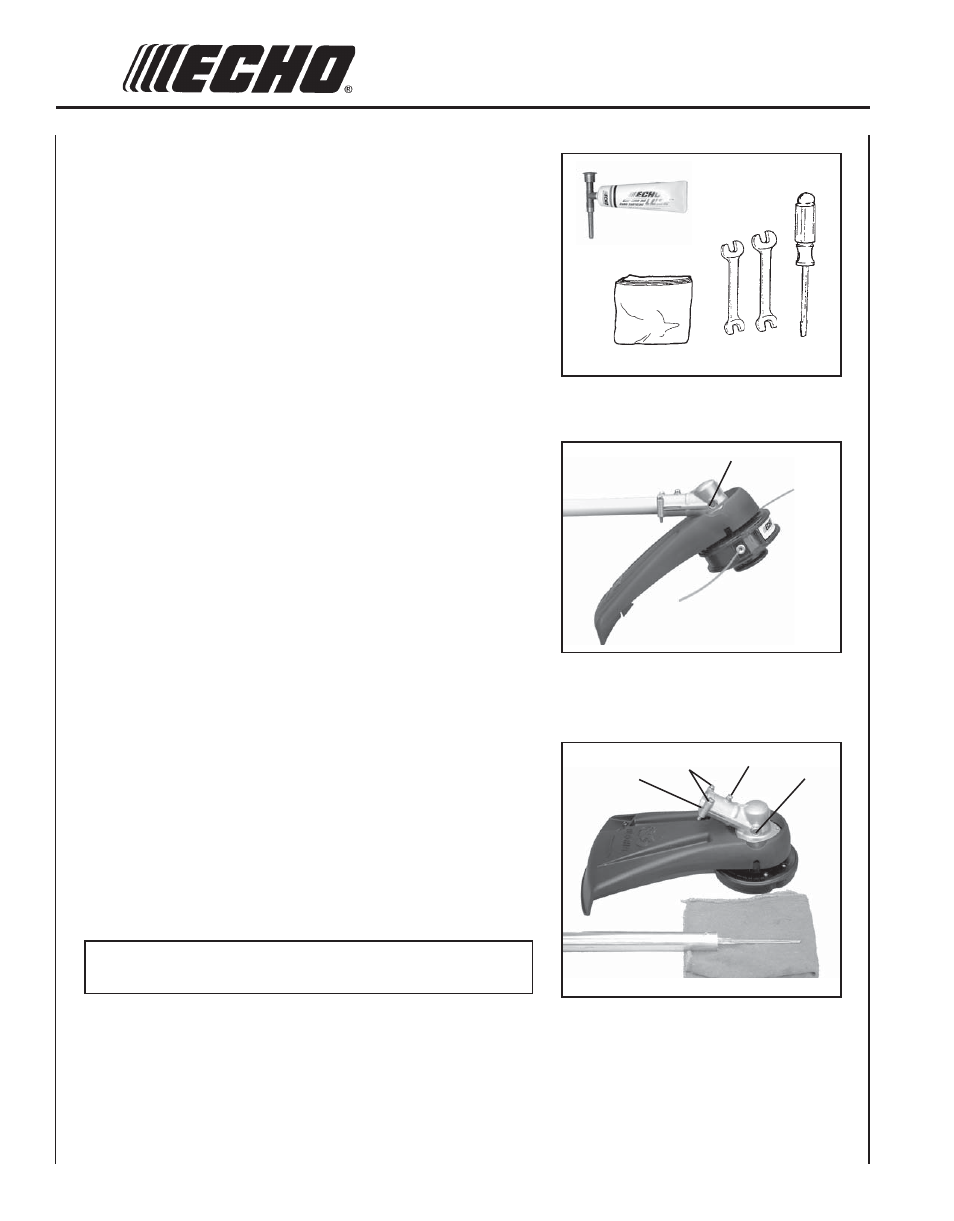

LUBRICATION
Level 1.
Tools required: 8 & 13 mm Open end wrench, cross head screwdriver,
clean rag, Grease gun P/N 91016
Parts Required: ECHO
®
LUBE TM 8 oz. (P/N 91014) or Lithium Base
Grease.
Gear Housing
1. Clean all loose debris from gear box.
2. Remove plug (A) and check level of grease.
3. Add grease if necessary, DO NOT over fill.
A
A
B
A
C
D
Drive Shaft
1. Loosen two (2) screws (B) and remove center locating screw (C).
Pull gear box and shield from drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean and
recoat with a thin coating [15 ml (1/2 oz.)] of grease.
3. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield assembly.
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
