If channel 3 is already occupied for broadcasting,
1) Set your TV to channel 4.
2) Insert a pre-recorded tape into the VCR.
3) Press the PLAY button once.
4) After a few seconds, press the PLAY button on the VCR for 3 seconds.

• The RF output channel will change to channel 4 from channel 3 and you will

see a playback picture.

• When a picture does not appear on the TV screen, repeat step [4].

5) Press the STOP button to stop playback.

You can use the AUDIO OUT jacks
and VIDEO OUT jack on the back of
the VCR if your TV has Audio/Video
Input jacks. In this case, you need to
set the TV to external Line Input Mode.
Please refer to your TV’s owner’s man-
ual.

- 1 -

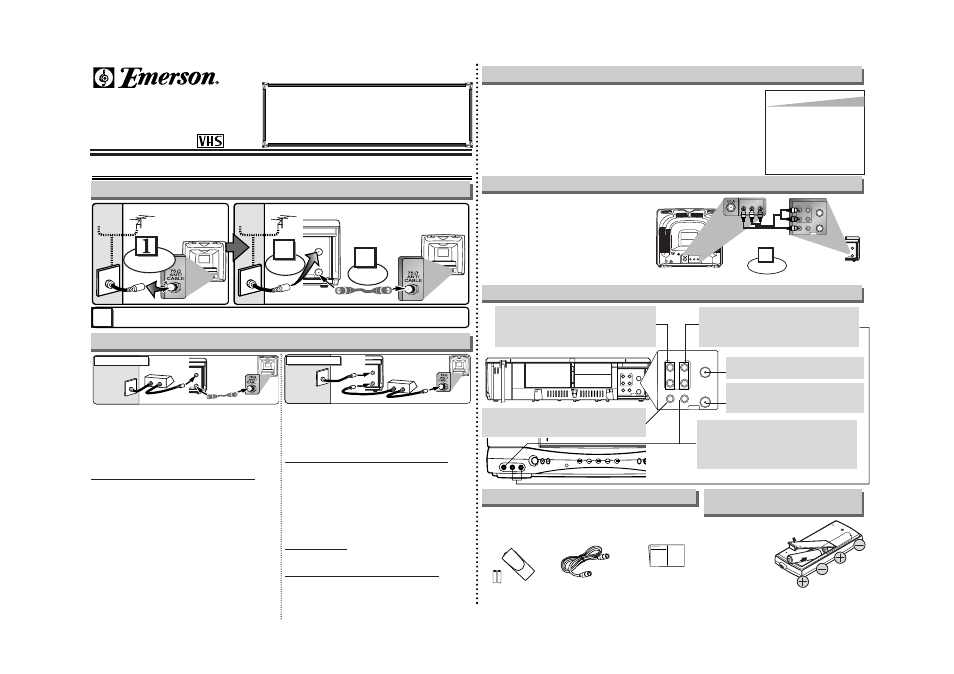

Owner’s Manual
Video Cassette Recorder

EWV603

If you need additional operating assistance after
reading this owner’s manual or to order replace-

ment accessories, please call

TOLL FREE : 1-800-256-2487

or visit our web site at http://www.funai-corp.com

0VMN03902 / HF440UD

★★★★★

Printed in China

ANT

AUDIO

VIDEO

IN

OUT

OUT

IN

OUT

L

R

IN

ANT

AUDIO

VIDEO

IN

OUT

OUT

IN

OUT

L

R

IN

AUDIO IN jacks
Connect the audio cables from the audio
out jacks of a camcorder, another VCR, or
an audio source.

VIDEO IN jack
Connect the video cable from the video out
jack of a camcorder, another VCR, or an
audio-visual source (laser disc player,
video disc player, etc.).

AUDIO OUT jacks
Connect the audio cables to the audio in
jacks of a camcorder, another VCR, a stereo
amplifier, or an audio system.

ANT IN jack
Connect your antenna or cable box.

ANT OUT jack
Connect the RF cable (supplied) to
the antenna input jack on your TV.

Front & Rear Terminals

Stereo TV Connection

ANT

IN

OUT

AUDIO

ANT

IN

OUT

VIDEO

OUT

L

R

IN

Connect

1

Audio/Video Cables

(not supplied)

L

R

AUDIO OUT

VIDEO

OUT

L

R

AUDIO IN

VIDEO

IN

(Back of TV)

IN

OUT

(Back of VCR)

• Remote control

(NA372UD) with
Two AA batteries

• RF Cable

(WPZ0901TM002)

• Owner’s Manual

(0VMN03902)

Supplied Accessory

Installing the Batteries for
the Remote Control

Install two AA batteries
(supplied) matching the
polarity indicated on
the bottom of the
remote control.

Hint

Hint

• The RF output channel may

not change when you adjust
tracking during playback. In
this case, stop the playback,
and start the playback again.
After that, press the PLAY
button on the VCR for 3 sec-
onds again.

VIDEO OUT jack
Connect the video cable to the video in jack
of a camcorder, another VCR, or a TV.

RF Output Channel

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS
OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.

MENU

CHANNEL

POWER

REC/

TAPE IN

VIDEO

L-AUDIO-R

TIMER

REC

VCR/TV

POWER

1. Before using your VCR

ANT

IN

OUT

RF Cable

(supplied)

(Back of VCR)

(Back of TV)

(Back of TV)

Plug the AC power cords of the VCR and TV into the AC outlets.

4

Disconnect

Antenna

or

2

Connect

3

Connect

Cable

Signal

Antenna

or

Cable

Signal

Basic VCR/TV Connection

Select this connection when you want to view or record a
scrambled channel. With this connection, channels cannot
be changed on the VCR. You can view or record ONLY the
channels you have selected on the cable box or the satellite
box.
• While you are recording, only the recorded channel can

be viewed.

To select channels of the cable box or satellite box
1)Turn on the VCR by pressing the POWER button, and

then, press the VCR/TV button.The POWER and the
VCR/TV indicators on the front panel will light on. Then,
press the CHANNEL buttons to select channel 3 or 4
(the same channel as the output channel of the cable
box or satellite box).

• If you use the channel 4, you need to change the VCR’s

RF output to channel 4. Refer to “RF Output Channel”.

2) At the TV, select channel 3 or 4 (the same channel as

you have selected at step 1).

3) At the cable box or satellite box, select the channel you

want to view or record.

Select this connection when you want to change channels
on the VCR. With this connection, you may watch one
channel while recording another.
• You may not view or record a scrambled channel.

To select channels of the cable box or satellite box
1)At the cable box or satellite box, select channel 3 or 4

(the same channel as the VCR’s RF output channel.)

• Refer to “RF Output Channel”.

2)At the TV, select the same channel as the output chan-

nel (3 or 4) of the cable box or satellite box.

3)Turn on the VCR by pressing the POWER button, and

then, press the VCR/TV button .The POWER and
VCR/TV indicators on the front panel will light on. Then,
select the channel you want to view or record.

To play back a tape
Follow the steps 1) to 2) above. Then, play back a tape.
• Refer to “Playback” on page 5.
To view one channel while recording another
1)While you are recording on the VCR, press the VCR/TV but-

ton so that the VCR/TV indicator disappears on the VCR.

2)At the cable box or satellite box, select the channel you

want to view.

Hint for Cable Box or Satellite Box

ANT

IN

OUT

RF Cable

(supplied)

(Back of VCR)

IN

OUT

E

(Back of TV)

Cable
Signal

Connection A

(Cable box or

Satellite box)

ANT

IN

OUT

RF Cable

(supplied)

RF Cable

(Back of TV)

IN

OUT

(Cable box or

Satellite box)

E

Cable
Signal

Connection B

(Back of VCR)
