4.4

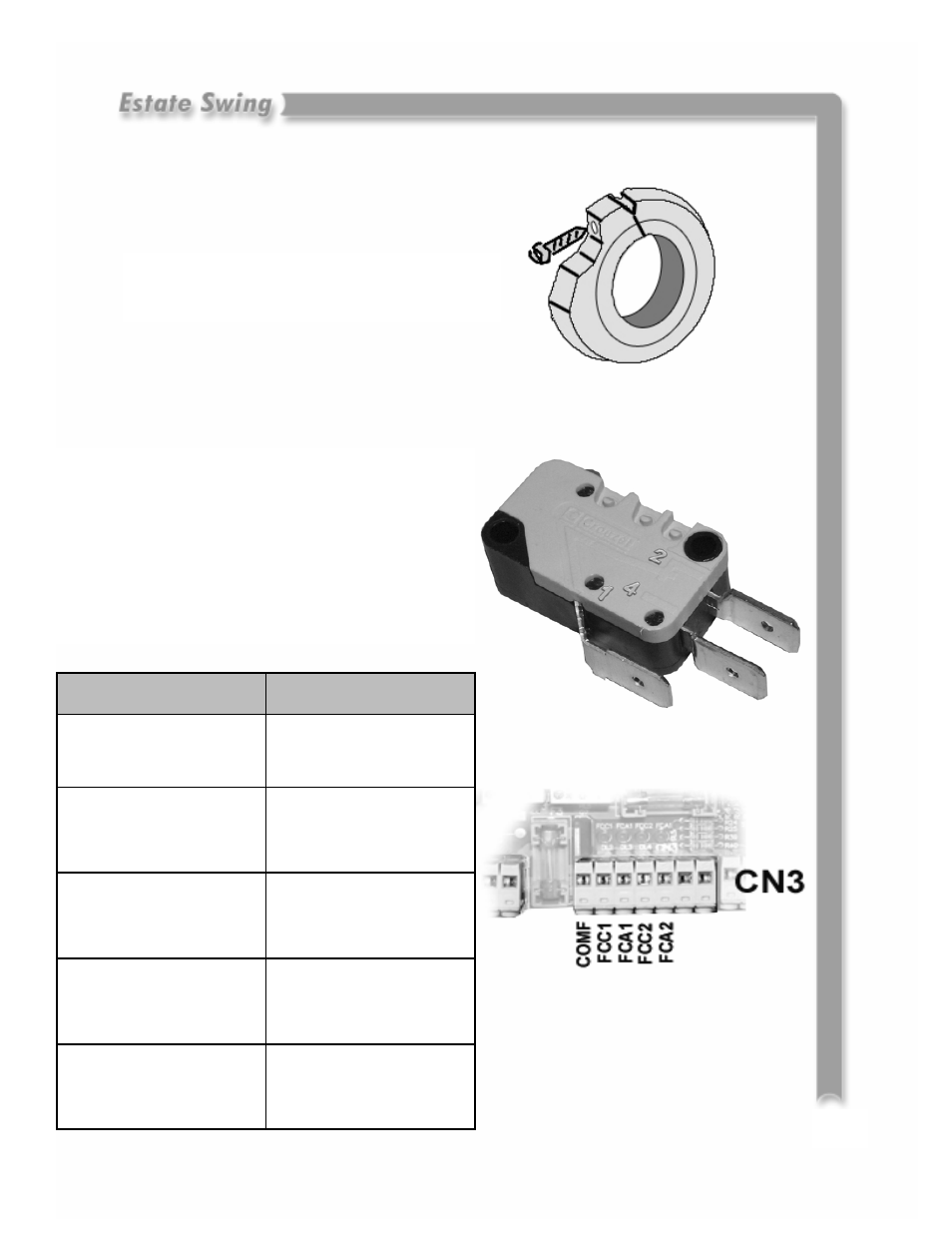

Wiring the Limit Switches
On the limit switch:
•
1 is Common
•
2 is N/C Limit Connection
•
4 is not used
Example of how to tighten the limit ring.
Terminal Block CN3
COMF Common from all
limit switches
FCC1 N/C Limit Connection
Closed Door Limit
Switch on Master
FCA1 N/C Limit Connection
Open Door Limit
Switch on Master
FCC2 N/C Limit Connection
Closed Door Limit
Switch on Slave
FCA2 N/C Limit Connection
Open Door Limit
Switch on Slave
