Serial connection option – Elo TouchSystems 1229L(WWW) User Manual
Page 18
2-13
Serial Connection Option

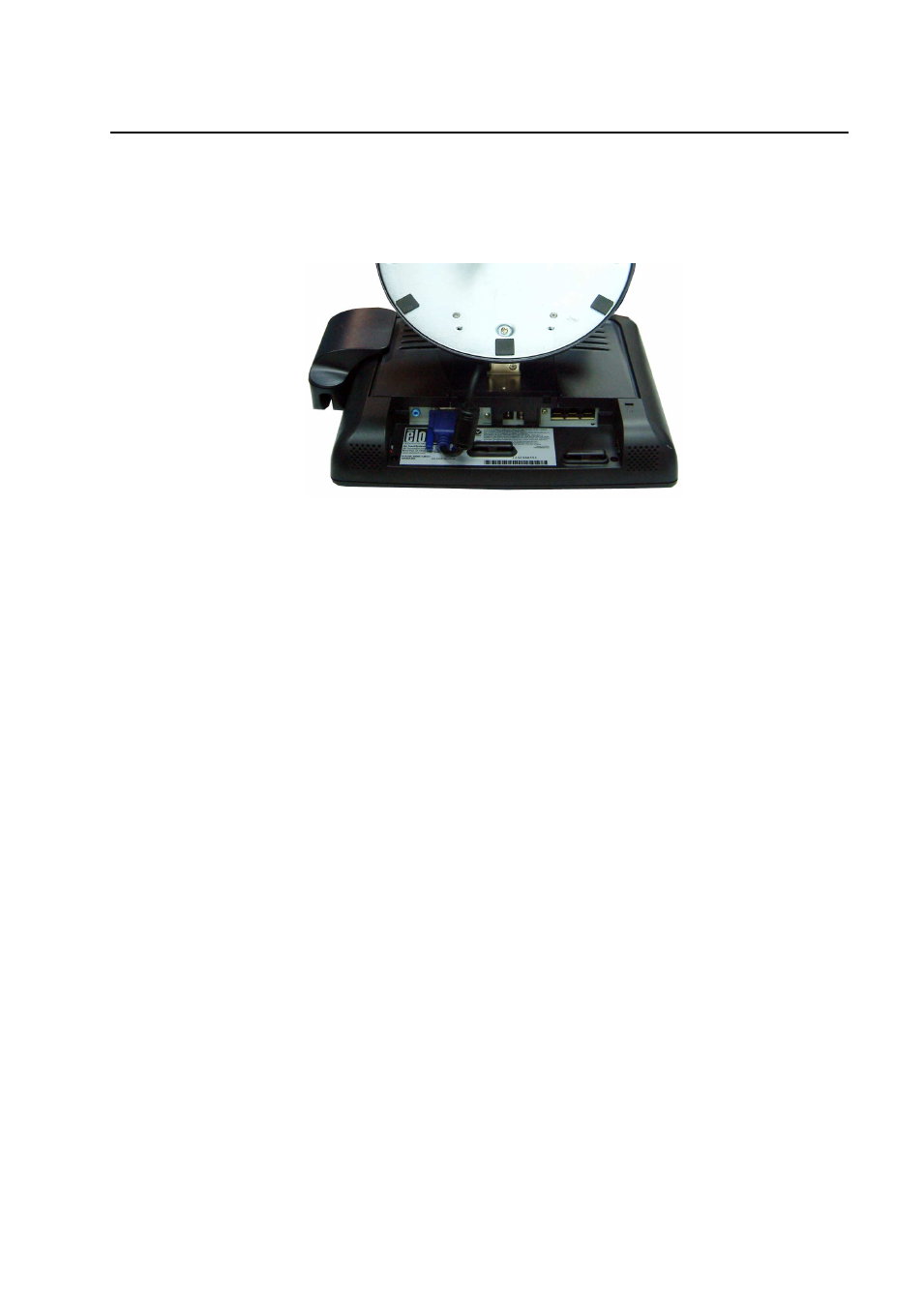

The following illustrations guide you step by step in connecting your
touchmonitor using a serial cable connection.
•
Connect one end of the video cable to the rear side of computer and the other
to the LCD monitor. Tighten by turning the two thumb screws clockwise to
ensure proper grounding.
