SPECIFICATIONS - (continued)

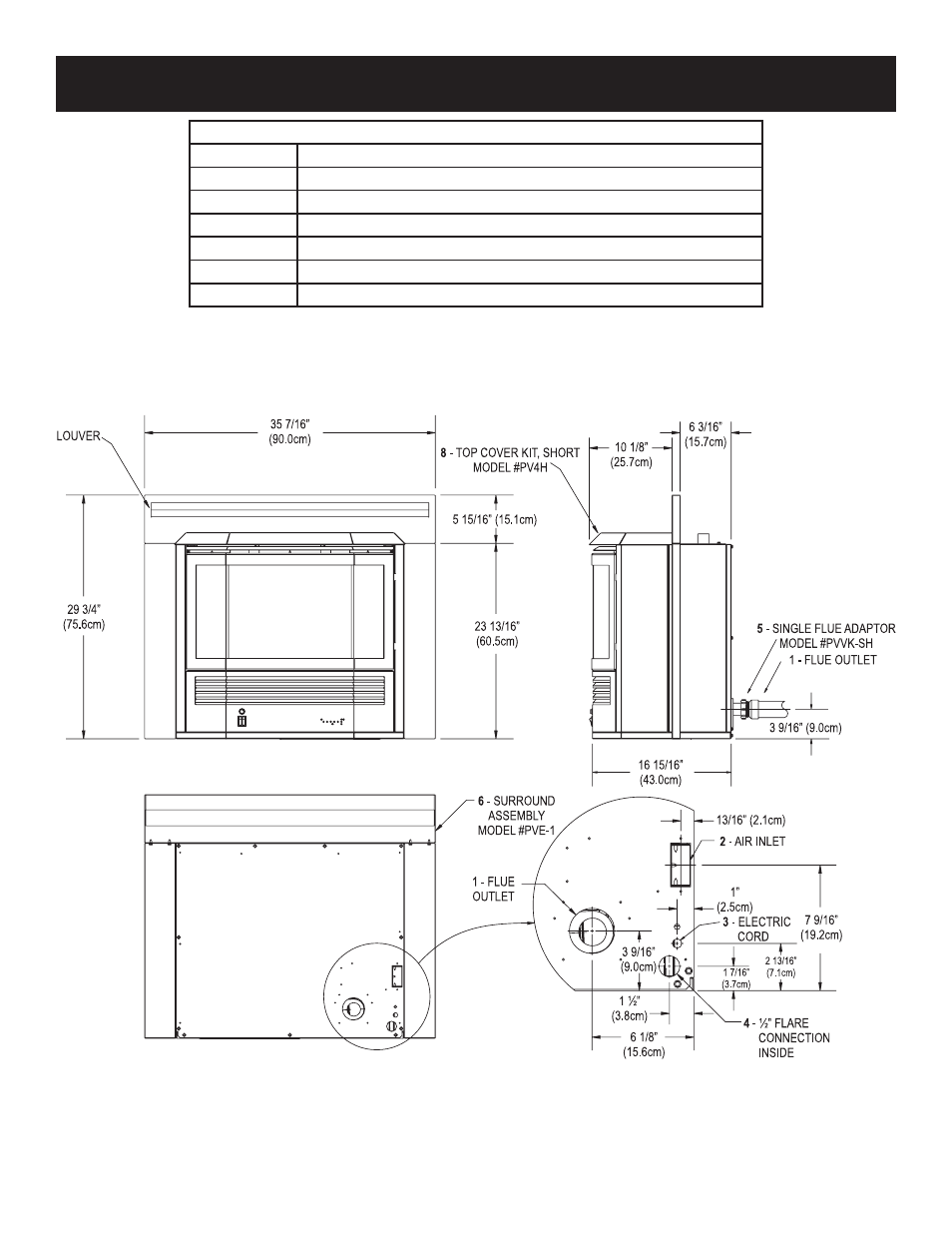

Figure 6
Fireplace Insert with Mantel Surround with Short Top Panel
1 Flue Outlet 1 1/2” PVC Pipe
2 Air Inlet
3 Electric Cord
4 3/8” Flare Connection (Inside)
5 Single Flue Adaptor Model #PVVK-SH (Required)
6 Surround Model #PVE-1
8 Top Cover Kit, Short Model #PV4H
Caution: Do not block louver in surround.
Note: Verify fireplace opening dimensions using Figure 9, page 15.
