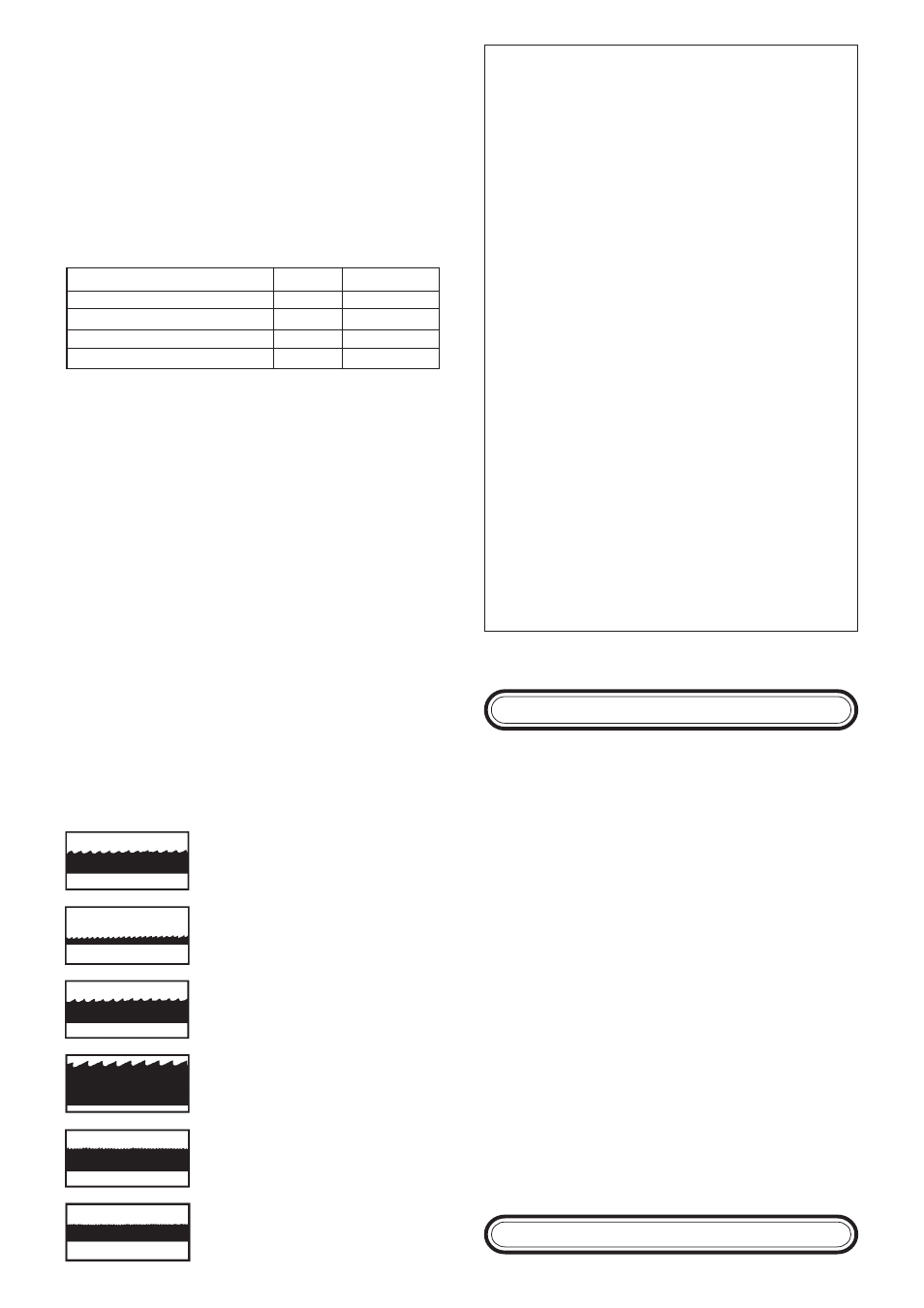

Blade for NF-metals
3380x15x0.5 mm
tooth spacing A 2 mm
Stock-no. 090 902 9210
Blade for carbon steel
3380x13x0.65 mm
tooth spacing 14 teeth/inch
Stock-no. 090 902 9229
Blade for cutting fire wood
3380x25x0.6 mm
tooth spacing A 8 mm
Stock-no. 090 900 0424
General purpose blade for straight and
contour cuts, 3380x15x0.5 mm
tooth spacing A 6 mm
Stock-no. 090 902 9171
Blade for wood contour cuts
3380x6x0.5 mm
tooth spacing A 4 mm
Stock-no. 090 902 9180
Blade for straight cuts
3380x25x0.6 mm
tooth spacing A 4 mm
Stock-no. 090 900 0416
11 Replacement Saw Blades
Standard delivery: blade with induction-hardened teeth
for a longer tool life.
10 Dust collection
Caution! Dust of certain wood spezies is carcinogenic.
➜ When operating your woodworking machine indoors
connect to a dust collector.
➜ If a woodworking machine is operated indoors for
more than 30 minutes, it is mandatory to connect it to a
dust collector.
Important information to consider when choosing a dust
collector:
Please note:
- The airflow at the suction port (of the woodworking
machine) should not be less than 20 m/s.
Check with your dealer on the different dust collectors
available from Elektra Beckum.
Unit Min. value
Port diameter mm 100
Mean air speed m/s 20
Vacuum Pa 1640
Volume flow rate m 3 /h 565
Caution! With extented daily use of your woodworking
machine an automatic start/stop device, which
automatically switches the dust collector on and off when
the woodworking machine is started/stopped, is required.
This automatic power relay is available in two different
versions from Elektra Beckum:
- Automatic Power Relay ALV 1
1~230 V
stock-no. 091 301 4626
12 U.K. Supplement to Operating
Instructions for Elektra Beckum Band
Saw BAS 500
Please note the following supplementary information
associated with this machine:
U.K. Legislation and Codes of Practice
When used industrially within the U.K. this machine
falls under the scope of
● Woodworking Machines Regulations 1974
and
● Use and Provisions of Work Equipment
Regulations 1992
We strongly advise you study and follow these
regulations.
Section 5.0 - Connection to Power Mains
230 V motor. Although the motors supplied with this
machine will run safely on a 13 A domestic ring main,
on starting the machine a high current of very short
duration is drawn, which could cause your 13 A fuse
to blow. If this persists we recommend to have the
machine connected to a 16 A separate radial circuit
using BS 4343 (CEE 17) plug and socket. Ensure the
installation is protected by a suitable fuse or miniature
circuit breaker.
This work should be undertaken only by a qualified
electrician!
Warning: This appliance must be earthed!
Wiring Instructions
If the plug, fitted to the power cable supplied with the
machine, has to be changed or replaced, connect the
mains lead conductors in accordance with the following
colour code.
Single-phase motors (110/115/220/230/240 volts):
Yellow/green - Earth
Blue - Neutral
Brown - Live
Three-phase motors (220/380/400/415/440 volts):
Machines with a 3-phase motor are connected to power
mains using a 5-pin industrial appliance-inlet/connector
according to VDE 0623/BS 4343/IEC 309.
4-wire mains lead Yellow/green - Earth
Brown - Phase (L1)
Black - Phase (L2)
Blue - Phase (L3)
5-wire mains lead Yellow/green - Earth
Brown - Phase (L1)
Black - Phase (L2)
Black - Phase (L3)
Blue - Neutral
I F IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN !
