7

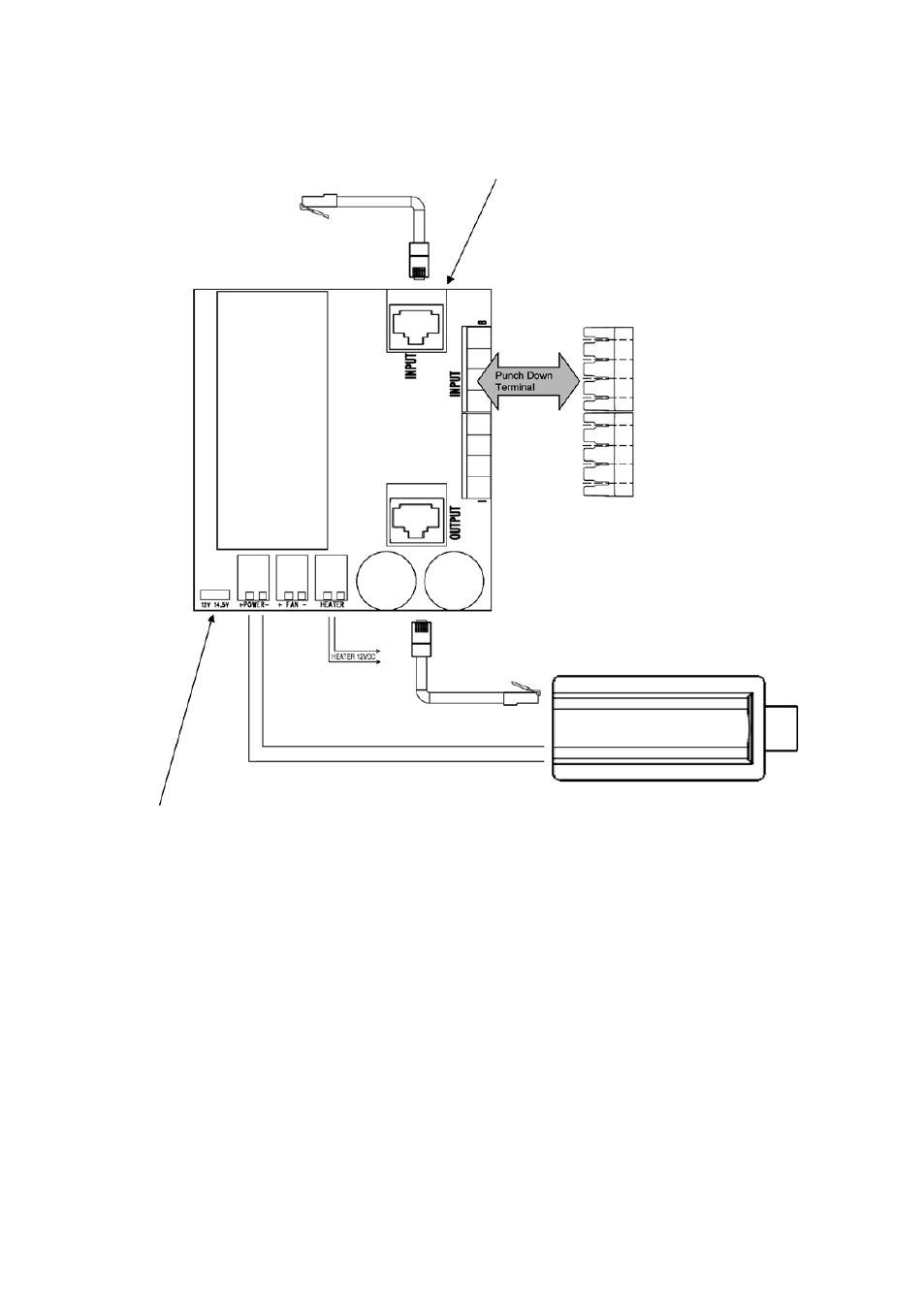

4.3 Power Connection
The RJ45 Ethernet Input can be used as an alternative
to the Punch Down Terminal Block
HiPoE
Ethernet
IP Camera
Punch Terminal Connection
Wire Colours
8 white/BLUE
7 BLUE
6 white/ORANGE
5 ORANGE
4 white/GREEN
GREEN
white/BROWN
BROWN
V - 4.5V Camera Power
V - 4.5V Camera Power
Voltage Selection Power
Output
• Connect the Ethernet cable to the camera.
• Select the voltage of the camera by using the appropriate jumper VDC/4.5VDC.
• Feed the camera using board’s clamps „+power–”.
• Camera feed: +VDC/4.5VDC – max. 5W
Input
• For the connection, use a CAT-5e cable or an upper one. The wiring harness maximum length is 00m.
• The RJ45 Ethernet Input can be used as an alternative to the Punch Down Terminal Block.
