31-DVIE33
37
ADJUSTING PRIMARY AIR

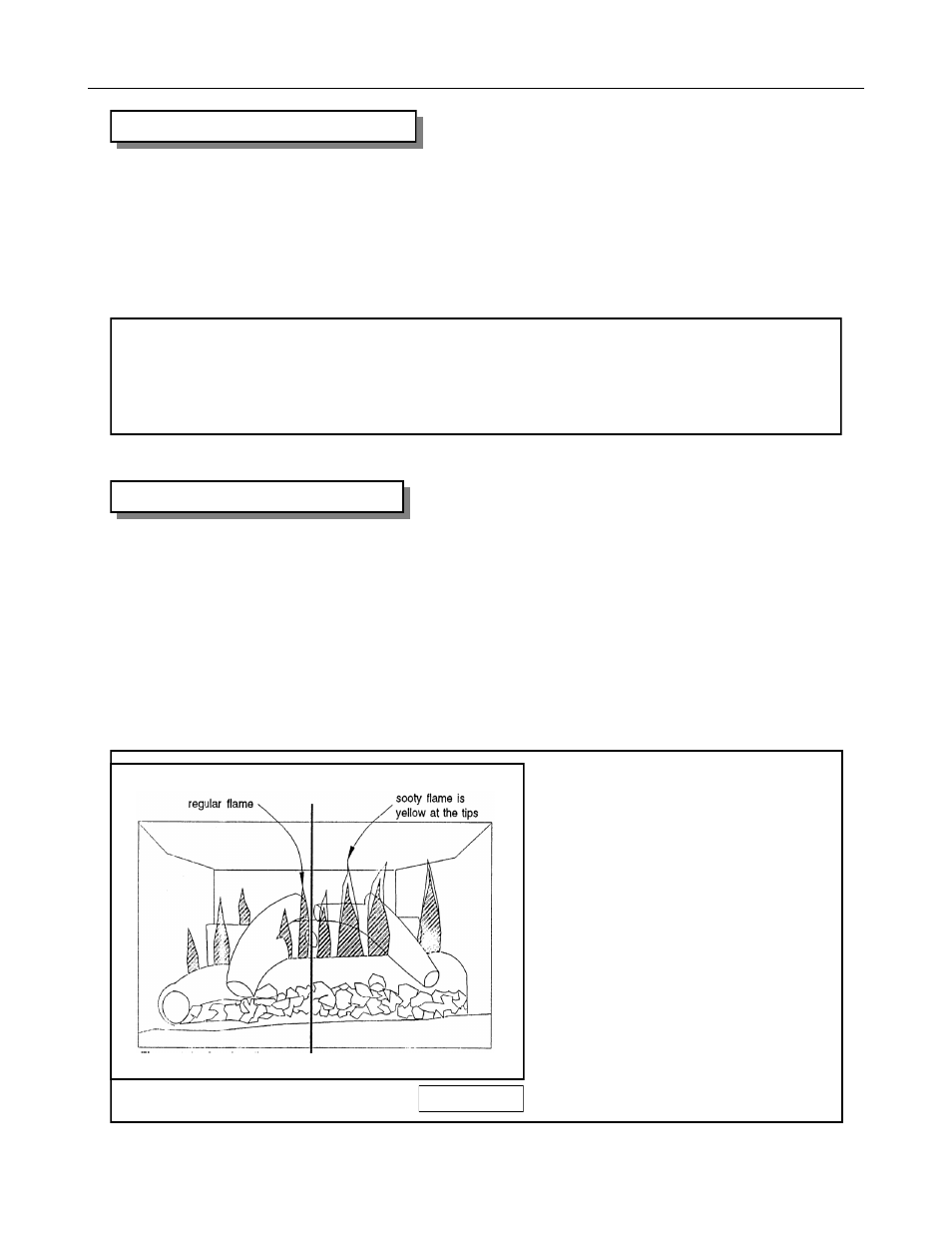

NOTE: Figure 1 is to give an example of what a correct or incorrect flame pattern looks like. It is
not a true representation of what the 31-DVIE33 will look like in your home environment.
The air shutter can be adjusted from the front of the unit while in operation. All adjustments
should be made after 20 minutes of operation.
1. Locate the Robertson screw below the glass door and left of center.
2. Turn the screw clockwise to give more air ( less yellow flame ). Turn the screw counter
clockwise to give less air (more yellow flame).
FLAMES
The left side shows correct adjustment.
The right side shows yellow sooty
flames requiring increase in shutter
opening or cleaning of shutter area,
due to lint buildup.
WARNING: Servicing of this appliance must be conducted by a qualified service
technician. Improper servicing, adjustment or alteration of this appliance may
cause property damage, personal injury or loss of life. All servicing should be
conducted with the appliance cold. All replacement parts must be authorized by
Archgard for suitability.
Before servicing, read the terms and conditions of the Archgard warranty at the back of the
manual. Contact the authorized Archgard dealer where you purchased the appliance from and
provide them with details of the problem, along with the initial installation information (from the
front of this manual).
SERVICING UNDER WARRANTY
FIGURE 1
