4-Channel Stereo System
2-Channels High-Pass, 2-Channels Low-Pass

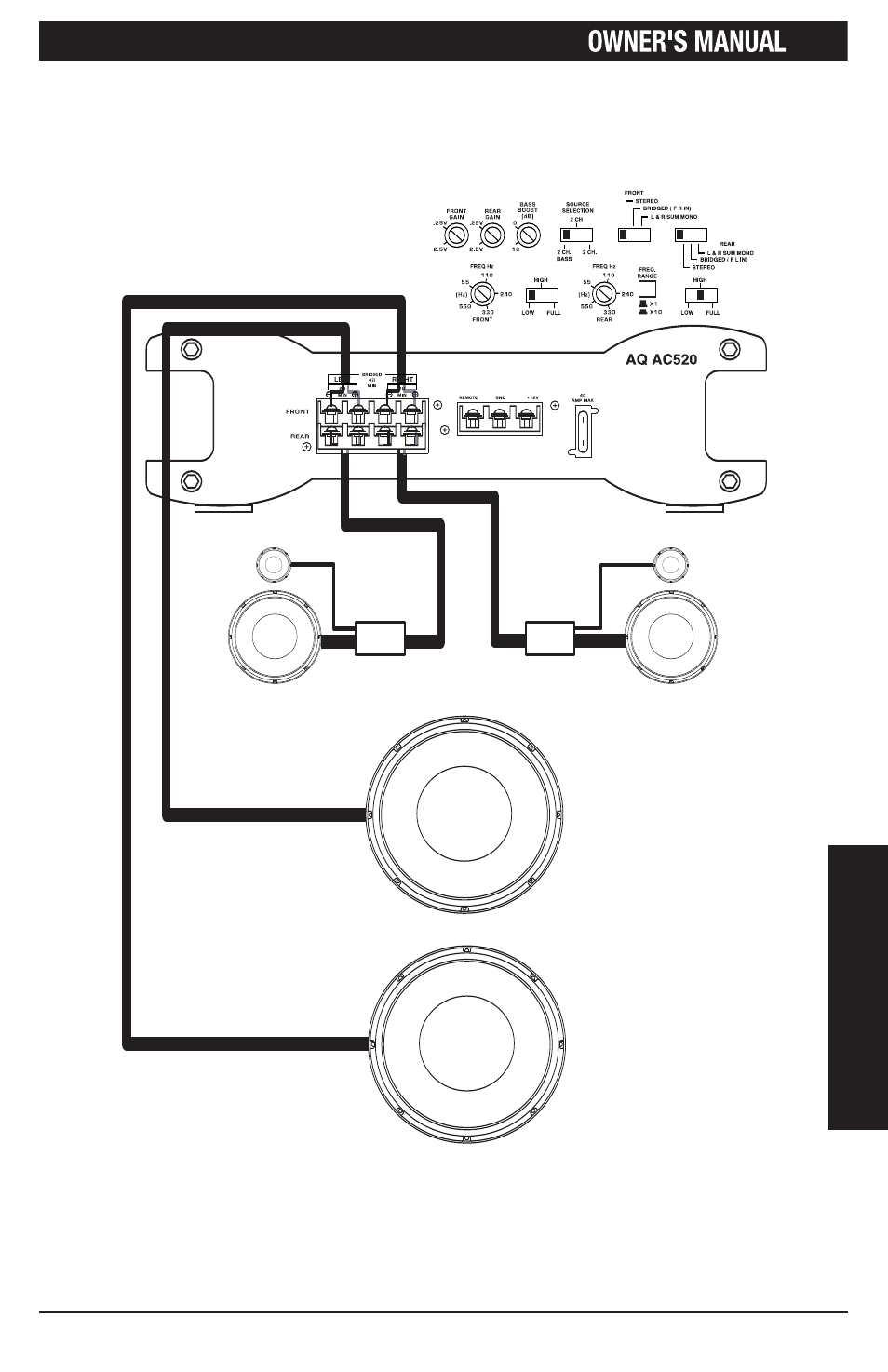

Figure 4 - In this 4-channel system, the Aquatic AV AQ-AC520 drives a pair
of stereo satellites for the front and a pair of stereo subwoofers for the rear.
Note the filter settings.
5
A
P
P
L
IC
A
T
IO
N
S
L Satellite
R Satellite
2-way Passive
Crossover
2-way Passive
Crossover
R Subwoofer
L Subwoofer
