Operation – Using the Control Panel

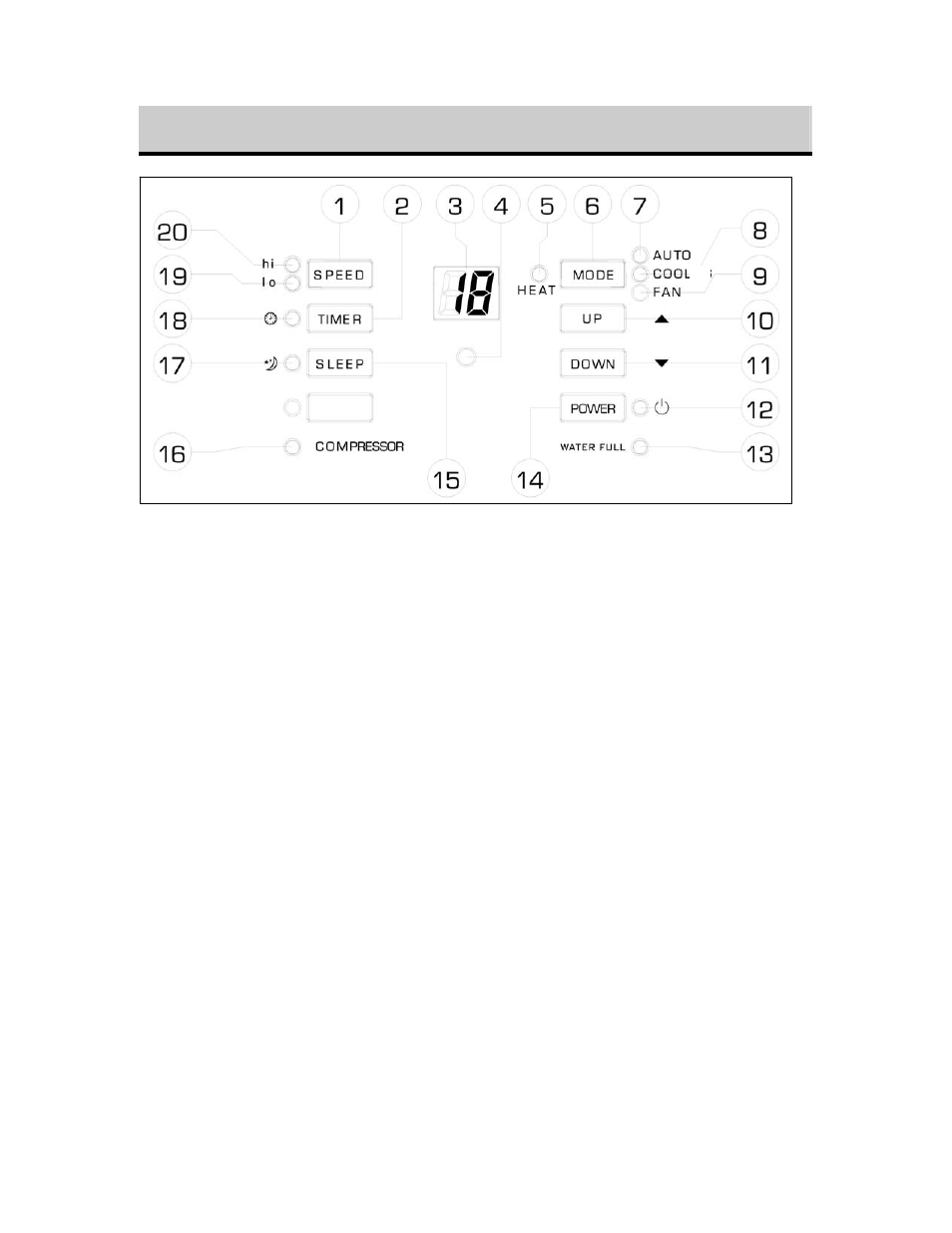

Control Panel Parts
FIG.10
11. Temperature down button 1. Fan speed button
12. Power indicator 2. Timer button
13. Water full indicator 3. Display window
14. Power button 4. Senor for remote control
15. Sleep mode button 5. Heat mode indicator
16. Compressor indicator 6. Mode (function) button
17. Sleep mode indicator 7. Automatic mode indicator
18. Timer indicator 8. Cooling mode indicator
19. Low fan speed indicator 9. Fan mode indicator
20. High fan speed indicator 10. Temperature up button
Turning the Unit On or Off
Press the ‘POWER’ button and the unit will start in auto mode. If the ambient temperature is:
- Higher than 73 o F, the unit will operate in cool mode.
- Higher than 68
o
F but below or equal to 73
o
F, the unit will operate in fan mode.
- Below 68
o
F, the unit will operate in heating mode.
An indicator will display next to the corresponding mode.
*NOTE: The display window shows the ambient room temperature from 32
o
F to 122
o
F
To turn the unit off, press the Power button again.
Selecting Between Automatic, Cooling, Heating, or Fan Modes
Press the MODE button to select the desired mode: automatic, cool, heat or fan.
The indicator of your selected mode comes on.
9
