DVI-D Out RGB Out RGB In RS-232C Composite
Out
S-Video
Out
DC12V In DIP switch

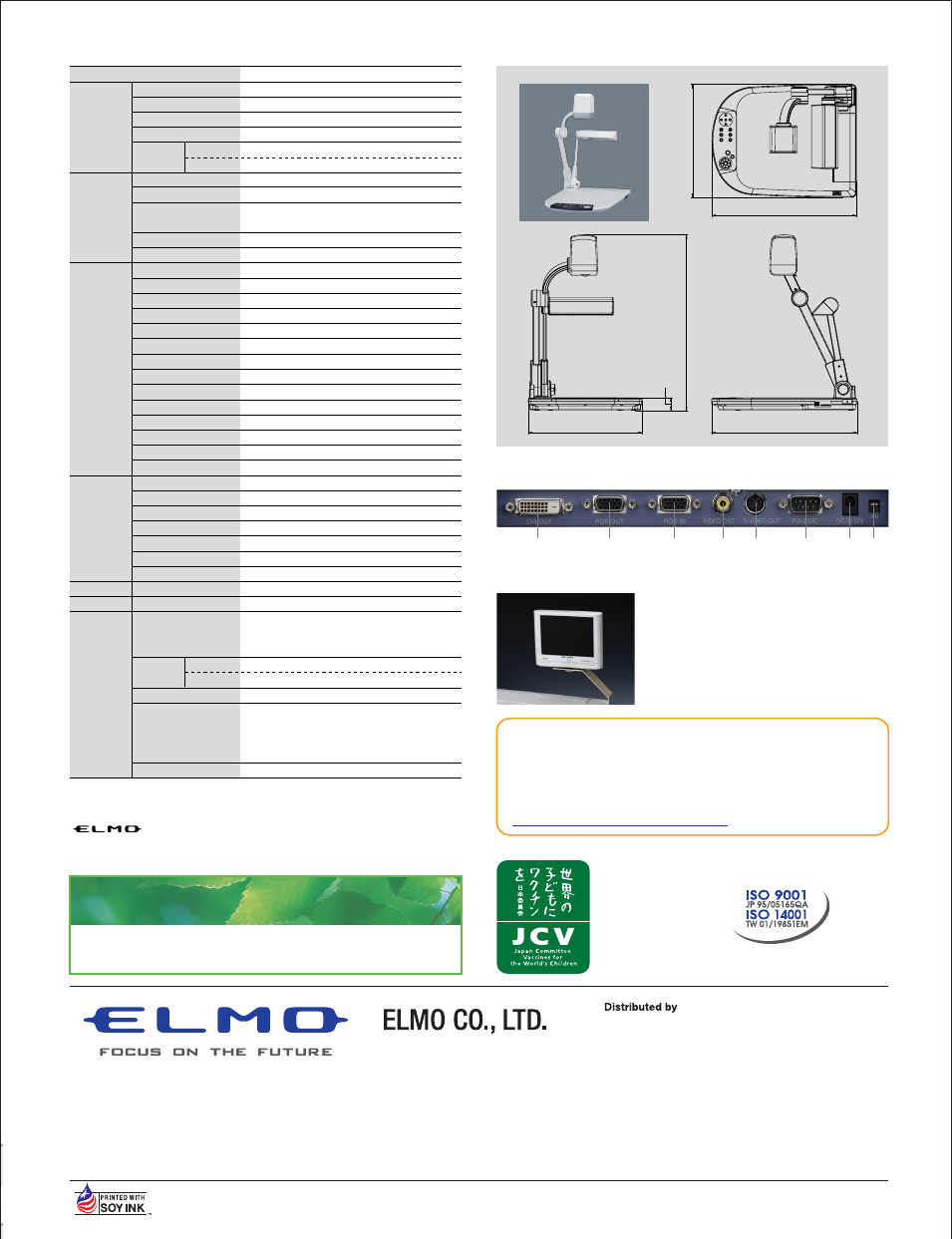

Model P10S
Camera Image pickup device 1/3" progressive scan CCD, 850,000 pixels
Total pixels 1077 (H) x 788 (V)
Effective pixels 1034 (H) x 779 (V)
Frame rate 20 frames/sec.
Resolution RGB output 600 (H) x 600 (V) TV lines
Video output 450 (H) TV lines
Optics Zoom Powered, 16X optical
Lens F2.8, f=4.7 to 75.2 mm
Shooting area Max. 16" x 12" (405 x 303 mm)
Min. 1
1 / 8 " x 7 / 8 " (29 x 22 mm)
Focus Auto/Manual (powered)
Iris Auto (with level adjustment)/Manual
Functions White balance Full-auto/One-push/Manual
Negative/positive conversion Provided
Text mode
Provided
Edge enhancement Provided
Color/B&W selection Provided
Pause mode Provided
Digital zoom Provided (8x)
Gamma adjustment Provided
Slideshow Provided (SD Memory Card image)
Split screen Provided (SD Memory Card image, 9-split, 16-split)
Image save Provided (onto SD Memory Card)
Image rotation Provided (0°, 180°)
State presetting Provided (up to 6 user settings)
Sync. system Internal
Interface Internal selection Int./RGB
Analog RGB output XGA (1024 x 768 @60 Hz)
Video output Composite (x 1), S-Video (x1)
DVI output Provided (x 1)
RGB input Provided (x 1)
RS-232C port Provided (x 1)
USB 2.0 port Provided (x 1)
Memory card SD Memory Card slot Provided
Lighting Upper lighting unit Provided (twin fluorescent lamp)
Others Supplied accessories AC adapter, Power cord, Video RCA cable, RGB cable,
S-Video cable, USB cable, Instruction manual,
IR remote control, Utility software (CD-ROM), Warranty card
Dimensions Set up 14 7 / 8 " x 19" x 23" (377 x 482 x 582 mm)
(W x D x H) Folded 14 7 / 8 " x 19" x 7 1 / 8 " (377 x 482 x 180 mm)
Weight Approx. 10.4 lbs (4.7 kg)
Application software Image Mate for Presentation, Image Mate for Movie
Creation, TWAIN driver (Windows
® 2000 [SP4 or later],
Windows ® XP [SP2 or later], Windows Vista ® [32-bit],
Mac OS X)
Power source DC 12V (AC adapter: AC 100 to 240V)
P10S Specifications Profile
Options
Rear Panel
ELMO’s Helping to Provide a Greener
Future for Our Children
This ELMO product complies with RoHS Directive 2002/95/EC (Restriction Of the
use of certain Hazardous Substances in electronic equipment). This compliance
helps to ensure a healthier and greener environment for all our children.
5.6-inch color LCD monitor
LM-5611A
Monitor shoe
MS-30
H: horizontal, V: vertical
Design and specifications are subject to change without prior notice.
The images in this brochure are simulated.
“ ” is a trademark of ELMO COMPANY, LIMITED.
SD logo is a trademark. Other brand names and product names may be trademarks or registered
trademarks of their respective owners.
ELMO CO., LTD. is one of the sponsors
for Japan Committee Vaccines for the
World’s Children (JCV).
JCV operates under basic guidelines and
objectives of the Children’s Vaccine
Initiative (CVI) founded in 1990 by
UNICEF, WHO, UNDP, the Rockefeller
Foundation, and the World Bank.
ELMO CO., LTD. (Head Office and Factory)’s
QMS/EMS has been registered to ISO 9001
& 14001 : 2004.
This brochure is printed on recycled paper with soy ink. Printed in Japan (O) 06/2008
6-14, Meizen-cho, Mizuho-ku
Nagoya, 467-8567, Japan
E-mail : [email protected]
Additional technical information is available from any of the following subsidiary companies:
What is a Document Camera ?
Please visit our new website introducing you to the useful and
effective ways of using the document camera. Let’s start ICT in
education with the document camera!
http://www.elmo.co.jp/doc-cam/
Neanderstr. 18
40233 Dusseldorf, Germany
Tel. (0211) 386470 Fax. (0211) 376630
E-mail : [email protected]
Web : http://www.elmoeurope.com
..
ELMO (Europe) G.m.b.H.
1478 Old Country Road
Plainview, NY 11803-5034, U.S.A.
Tel. (516) 501-1400 Fax. (516) 501-0429
E-mail : [email protected]
Web : http://www.elmousa.com
ELMO USA Corp.
Headquarters West Coast Branch
Cypress Pointe Business Park
5676 Corporate Avenue
Cypress, CA 90630, U.S.A.
Tel. (714) 828-8457 Fax. (714) 828-8429
All dimensions in inches (mm)
14 7 / 8 " (377) 19" (482)
19" (482)
1
5
/
8
" (42)
23" (582)
14
7
/
8
" (377)
