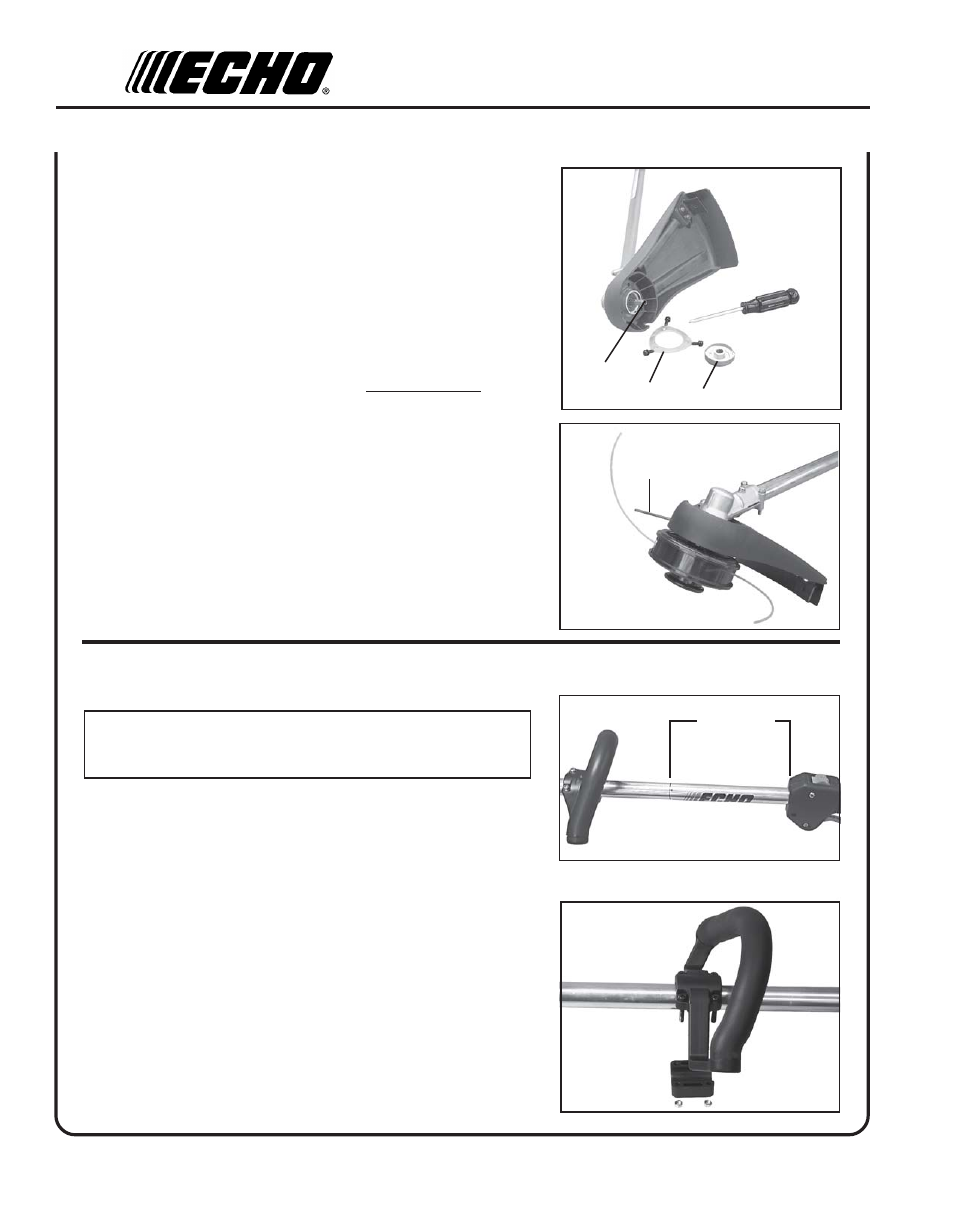

D
NYLON
LINE
HEAD
INSTALLATION
Tools Required: Head Locking Tool.
Parts Required: Nylon Line Head.
1.
Be sure adapter plate (C) remains on PTO shaft.
2.
Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (D).
3.
Thread line head onto shaft by turning it counter-clockwise until
head is tight against adapter plate (C).
4.
Remove locking tool.
FRONT
HANDLE
INSTALLATION
NOTE
Label shows minimum spacing for front handle location.
1.
Position front handle for comfortable operation and secure screws.
MIN
SPACING
A
B
C
