air-o-steam ®
Gas Combi Oven 61
Supply voltage:
260148 (AOS061GAP1)
120V/1ph/60Hz - 4A
Circuit breaker required
Electric
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
8-8-09

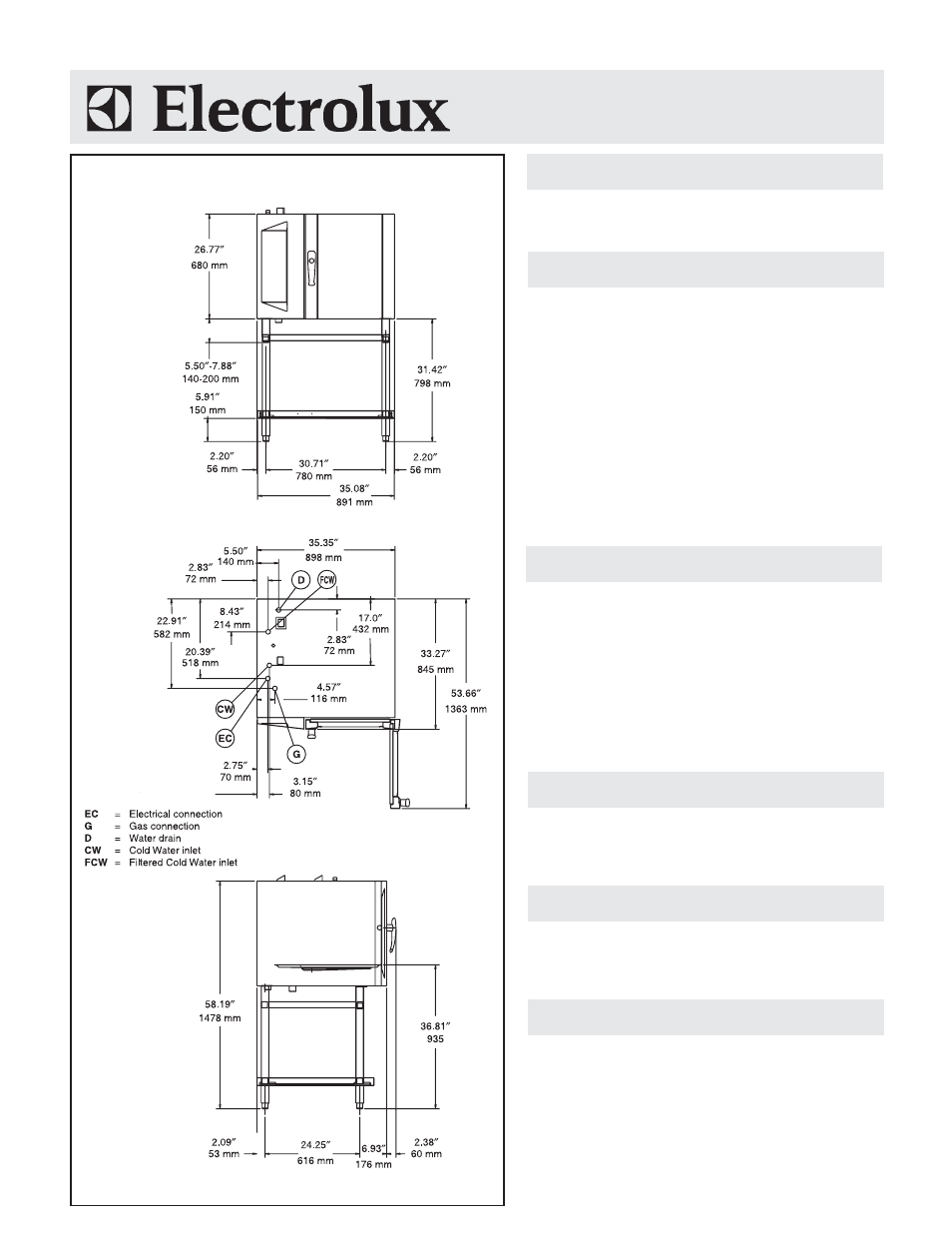

Front View
Top View
Side View
air-o-steam ®
Gas Combi Oven 61
Water
Clearance: Clearance: 2 ″ (5 cm) rear and right
hand sides.
Suggested clearance
for service access:
20” (50 cm) left hand side.
Installation
Gas (Natural or LPG)
ISO 7/1 Gas connection diameter:
½ ″ M
Gas regulator recommended. Supplied by others.
Max rated thermal load:
Natural Gas
Pressure: 7 ″ w.c. (17.4 mbar)
Steam generator: BTU 41,000 (12 kW)
Heating elements: BTU 41,000 (12 kW)
Total: BTU 82,000 (24 kW)
LPG
Pressure: 11 ″ w.c. (27.4 mbar)
Steam generator: BTU 37,600 (11 kW)
Heating elements: BTU 37,600 (11 kW)
Total: BTU 75,200 (22 kW)
Gas (Natural or LPG)
Net weight: 254 lbs. (115 kg)
Shipping weight: 287 lbs. (130 kg)
Shipping width: 37-5/8 ″ (955 mm)
Shipping height: 42-1/8 ″ (1070 mm)
Shipping depth: 38-3/4 ″ (985 mm)
Shipping volume: 35.67 cu. ft. (1.01 m 3 )
Key Information
Steam pans: 6 – 12 ″ x 20″
Half size sheet pans: 6 – 13 ″ x 18″
GN: 6 – 1/1 containers
Max load capacity: 66 lbs. (30 kg)
Capacity
Water Consumption (gal./hr.): Min: 2.25 Max: 11.89
Water inlet “CW” – ¾ ″″″″″ connection:
Unfiltered drinking water
Water inlet “FCW” - ¾
″″″″″ connection:
Total hardness: 5-50 ppm
Pressure: 22-36 psi (150-250kPa)
Drain “D”: 1-1/4 ″ connection
Electrolux recommends the use of treated water, based on
testing of specific water conditions.
Please refer to user manual for detailed water quality information.
