Exmark M216KA - Manual (Page 9)

3324–343
9
Sheet No.:5
1
9
20
4
7
6
8
5
17
12
16
14
3
15
19
10
18
11
2
13
16:5
16:1
16:2
16:3

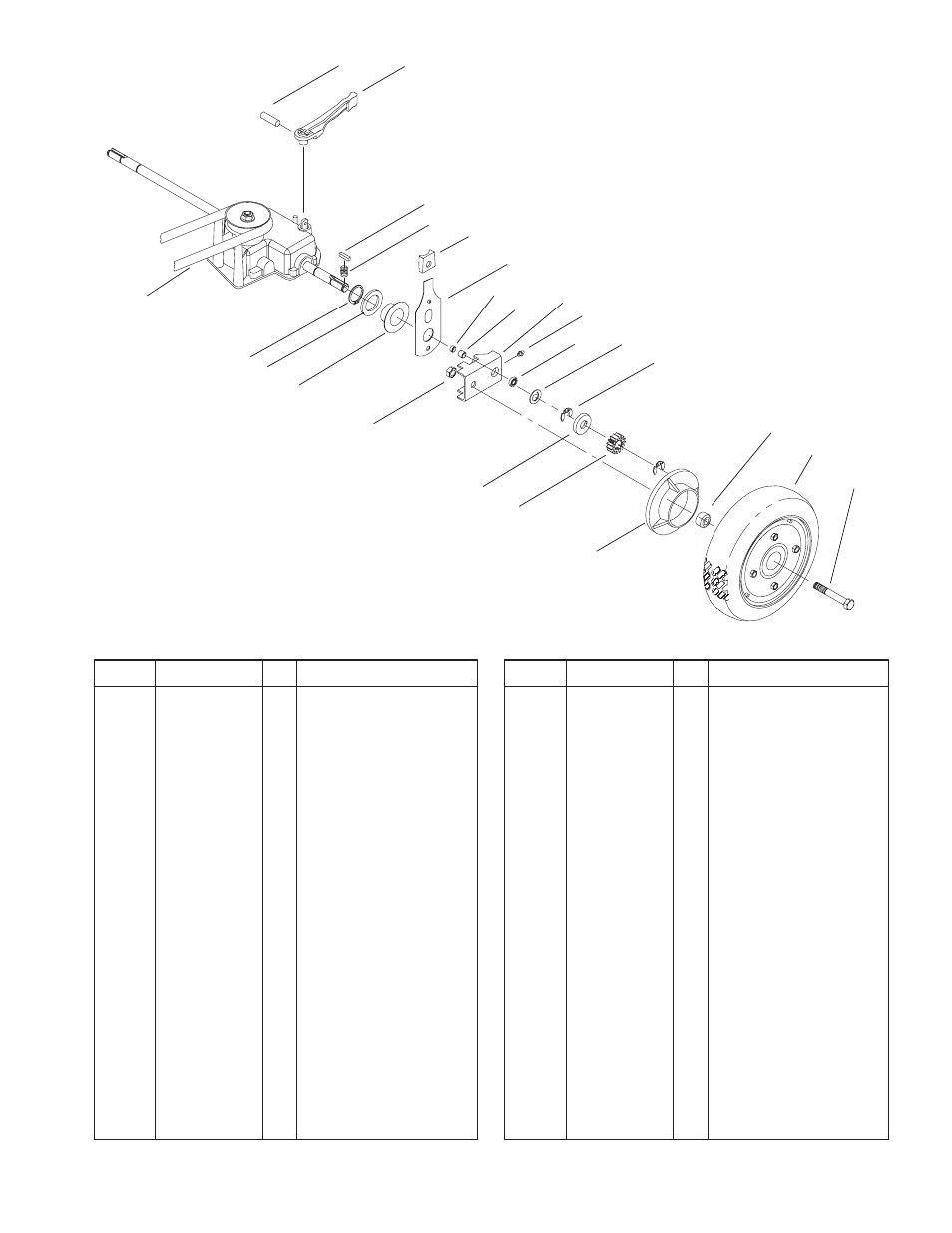

Rear Axle Assembly
Description Part No. Qty. Ref. No. Description Part No. Qty. Ref. No.
1 213237 1 V–Belt
2 32151–36 2 Ring–Retaining
3 74–1810 2 Washer
4 48–2170 2 Cap–End
5 32152–2 2 Nut–Conelock
6 62–3830 2 Washer–Thrust, Outer
7 39–9160 2 Gear–Pinion
8 74–1640 2 Cover–Wheel
9 74–1720 2 Wheel & Tire ASM
10 323–13 2 Screw–HH
11 74–1650 2 Spacer–Cover, Wheel
12 39–9650 2 Spring–Comp
13 612066 2 Key
14 32151–68 4 Ring–Retaining
15 49–7700 2 Washer–Thrust, Outer
16 74–1851 2 Pivot Arm ASM
16:1 47–6730 1 Seal–Oil
16:2 48–2060 1 Bearing–Roller
16:3 52–2450 1 Bearing–Wheel
16:5 92–6316 1 Zerk–Drive, Special
17 66–7561 2 Rear Spring Arm ASM
18 25–7740 2 Knob–Arm
19 74–1960 1 Lever–Shift
20 32121–99 1 Pin–Coil
* 100–2512 1 Tube–Oil Drain
