Tools Required: Screwdriver, Cross-Head Screwdriver

Parts Required: Power Pruner

TM

, Hedge Clipper Attachment

WARNING

DANGER

Hedge Clipper cutting blades are very sharp! Always wear gloves
when handling assembly, otherwise serious personal injury may
result.

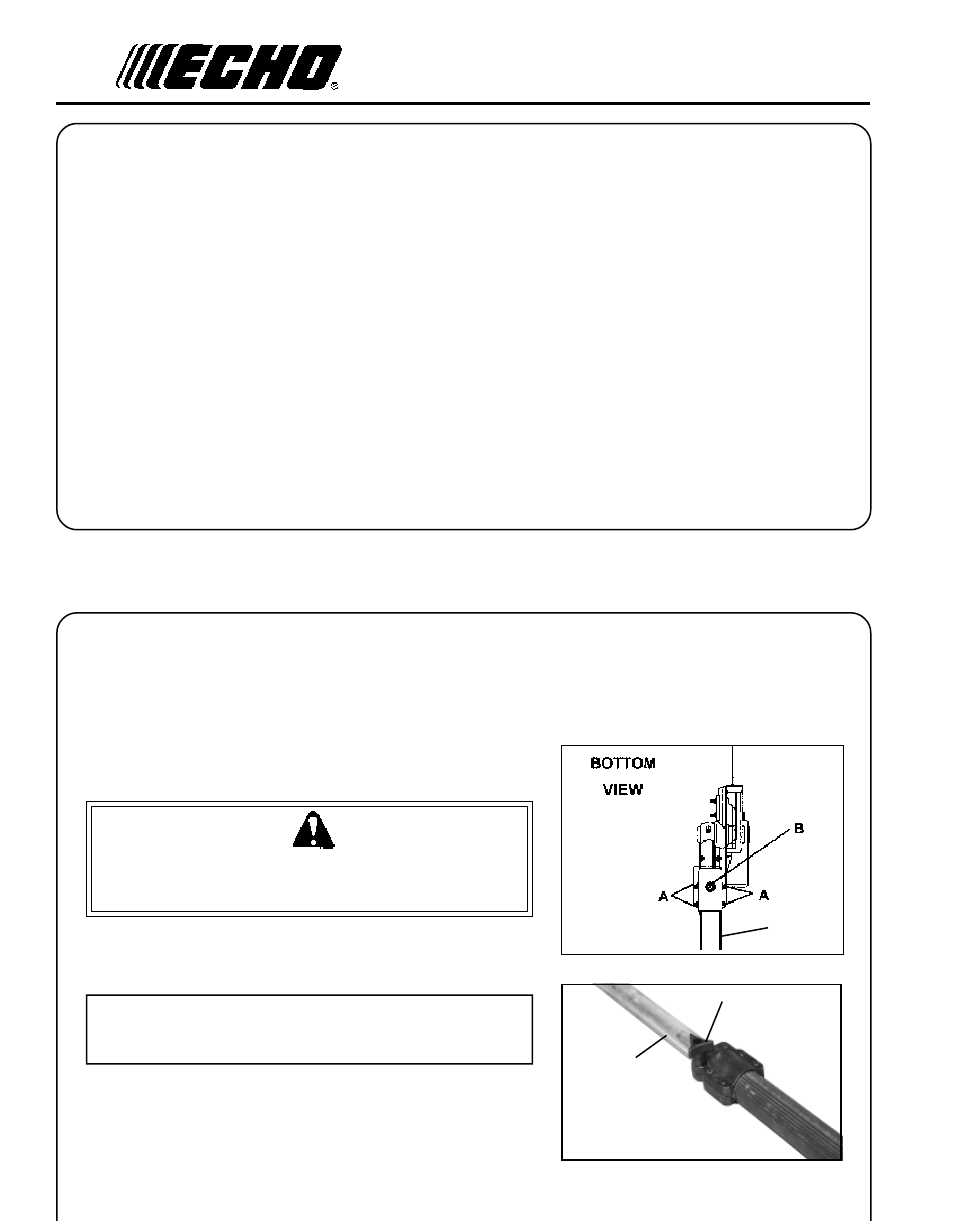

1. Loosen the four (4) screws (A) and locator screw (B) on Chain Saw

Cutting Attachment, then slide attachment off upper shaft tube (C).

NOTE
Do not remove locator screw (B) completely from cutting attach-
ment, otherwise inner lock nut will come off and be lost.

(Models: PPT Models Only)

2.

Loosen center clamp knob (D).

A

SSEMBLY

CUTTING

ATTACHMENT

TO

SHAFT

TUBE

INSTALLATION

S

PECIFICATIONS

Approved for use with the following Power Pruner

TM

models only.

PPT-230/231

PPT-260/261

PPT-2100/2400

PPFD-2400

MODEL ---------------------------------------------------- HEDGE CLIPPER ATTACHMENT

Length ------------------------------------------------------- 775 mm (30.5 in.)

Width -------------------------------------------------------- 121 mm (4.75 in.)

Weight ------------------------------------------------------ 2.45 kg (5.4 lbs.)

Gear Case Ratio -------------------------------------------- 3.5 : 1

Cutter -------------------------------------------------------- Double Reciprocating Blade - Double Edge

Cutter Length ----------------------------------------------- 450 mm (17.7 in.)

Cutter Pitch ------------------------------------------------- 28 mm (1.1 in.)

Maximum Diameter Cut ------------------------------------ 9.5 mm (3/8 in.)

C

D

C
