Video ProceSSinG

Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 bit digital

Digital sampling . . . . . . . . . . . . . . . . . 24 bit, 8 bits per color; 13.5 MHz standard (video), 140 MHz standard (RGB)

Colors .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.78 million

Horizontal filtering . . . . . . . . . . . . . . 4 levels

Vertical filtering .. . . . . . . . . . . . . . . . . 8 levels

Video oUtPUt

Number / Signal type . . . . . . . . . . . 2 scaled RGBHV, RGBS

Connectors . . . . . . . . . . . . . . . . . . . . . . . 2 x 5 BNC female, (2) 15-pin HD female

Nominal level . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p for RGB

Minimum / Maximum levels .. . 0 V to 0.7 Vp-p

Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms

Scaled resolutions . . . . . . . . . . . . . . 640x480

1,3,4,6

, 800x600

1,3,4,6

, 832x624

3,4,6

, 848x480

3,6

, 852x480

3,6

1024x768

1,3,4,5,6

, 1280x768

2,6

, 1280x1024

1,3

, 1360x765

3,6

, 1365x1024

3,6

1366x768

3,6

, 1400x1050

1,3,6

, 576p

1,6

, 720p

3,6

, 1080p

3,6

, 1080i

1,3,6

= at 50 Hz,

= at 56 Hz,

= at 60 Hz,

= at 75 Hz,

= at 85 Hz,

= locked to the current input’s vertical refresh rate (Accu-RATE Frame Lock

)

Return loss . . . . . . . . . . . . . . . . . . . . . . . -30 dB @ 5 MHz

DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV with input at 0 offset

Switching type . . . . . . . . . . . . . . . . . . . Seamless switching (cut or dissolve)

Sync

Input type . . . . . . . . . . . . . . . . . . . . . . . . . Autodetect RGBHV, RGBS, RGsB, RGBcvS

Output type . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS

Standards . . . . . . . . . . . . . . . . . . . . . . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM

Input level . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 5.0 Vp-p

Output level . . . . . . . . . . . . . . . . . . . . . . 0 V to 5.0 Vp-p

Input impedance . . . . . . . . . . . . . . . . 510 ohms

Output impedance . . . . . . . . . . . . . . 75 ohms

Max input voltage . . . . . . . . . . . . . . . 5.0 Vp-p

Max. propagation delay . . . . . . . . 20 ns

Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative (selectable)

aUdio

Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unbalanced output: 0 dB; balanced output: +6 dB

Frequency response . . . . . . . . . . . . 20 Hz to 20 kHz, ±0.05 dB

THD + Noise . . . . . . . . . . . . . . . . . . . . . . 0.03% @ 1 kHz at nominal level, 0 dB gain

S/N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >90 dB at maximum output (unweighted)

Crosstalk . . . . . . . . . . . . . . . . . . . . . . . . . . <-80 dB @ 1 kHz, fully loaded

Stereo channel separation . . . . >90 dB @ 1 kHz

CMRR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >75 dB @ 20 Hz to 20 kHz

aUdio inPUt

Number / Signal type . . . . . . . . . . . 8 stereo, balanced/unbalanced

Connectors . . . . . . . . . . . . . . . . . . . . . . . (8) 3.5 mm captive screw connectors, 5 pole

Impedance .. . . . . . . . . . . . . . . . . . . . . . . >10k ohms unbalanced/balanced, DC coupled

Nominal level . . . . . . . . . . . . . . . . . . . . +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Maximum level . . . . . . . . . . . . . . . . . . +19.5 dBu, (balanced or unbalanced) at 1%THD+N

Input gain adjustment . . . . . . . . . . –24 dB to +9 dB, adjustable per input

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu.

aUdio oUtPUt

Number / Signal type . . . . . . . . . . . 2 stereo, balanced/unbalanced

Connectors . . . . . . . . . . . . . . . . . . . . . . . (2) 3.5 mm captive screw connectors, 5 pole

Impedance .. . . . . . . . . . . . . . . . . . . . . . . 50 ohms unbalanced, 100 ohms balanced

Gain error . . . . . . . . . . . . . . . . . . . . . . . . . ±0.1 dB channel to channel

Maximum level (Hi-Z) . . . . . . . . . . . >+21 dBu, balanced or unbalanced at 1%THD+N

Maximum level (600 ohm) . . . . . >+15 dBm, balanced or unbalanced at 1%THD+N

control / remote — Switcher

Serial control port . . . . . . . . . . . . . . . RS-232, 9-pin female D connector

Baud rate and protocol . . . . . . . . . 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin

configurations . . . . . . . . . . . . . . . . . . . 2 = TX, 3 = RX, 5 = GND

Ethernet control port . . . . . . . . . . . 1 RJ-45 female connector

Ethernet data rate . . . . . . . . . . . . . . . 10/100Base-T, half/full duplex with autodetect

Ethernet protocol . . . . . . . . . . . . . . . . ARP, ICMP (ping), TCP/IP, Telnet

Program control . . . . . . . . . . . . . . . . . Extron’s control/configuration program for Windows

Extron’s Simple Instruction Set (SIS

™

)

Microsoft

Internet Explorer, Telnet

General

Power .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 60 watts, internal, universal

Temperature / Humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes

Enclosure type . . . . . . . . . . . . . . . . . . . Metal

Enclosure dimensions . . . . . . . . . . 5.25" H x 17.5" W x 11.2" D (3U high, full rack wide)

13.3 cm H x 44.5 cm W x 28.4 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)

Product weight . . . . . . . . . . . . . . . . . . 11.2 lbs (5.1 kg)

Shipping weight . . . . . . . . . . . . . . . . . 17 lbs (8 kg)

DIM weight . . . . . . . . . . . . . . . . . . . . . . . 21 lbs

Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)

Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL

Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class B

MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor

NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.

SPeciFicationS

Video inPUt

Number / Signal type . . . . . . . . . . . 8 RGBHV, RGBS, RGsB, RGBcvS, component video, S-video, composite video

Connectors . . . . . . . . . . . . . . . . . . . . . . . 8 x 5 female BNC

Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB
0.3V Vp-p for R-Y and B-Y of component video, and for C of S-video

Minimum / Maximum levels .. . 0 V to 1.0 Vp-p with no offset

Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms

Horizontal frequency. . . . . . . . . . . . Autoscan 15 kHz to 100 kHz (RGB)

Vertical frequency . . . . . . . . . . . . . . . Autoscan 50 Hz to 100 Hz

Resolution range . . . . . . . . . . . . . . . . Autoscan 720x525 to 1600x1200

deScriPtion

The Extron

ISS 408 Integration Seamless Switcher provides truly seamless, glitch-free

switching between eight inputs, each of which is fully configurable for all video types. It
combines flawless switching between all video signal types and scaling with proprietary Extron
technologies including 3:2 and 2:2 pulldown, DMI

™

- Dynamic Motion Interpolation, and

AFL

™

- Accu-RATE Frame Lock. With features such as 16 auto-memory presets per input, test

patterns for projector setup, and IP Link

, the ISS 408 is the ideal solution for professional A/V

applications that incorporate digital projectors and displays, such as boardrooms, conference
rooms, classrooms, churches, and auditoriums where glitch-free, seamless switching and
professional transitions between A/V sources are essential.

The ISS 408 offers eight inputs configurable for RGBHV, RGBS, RGsB, component video, S-video,
and/or composite video on female BNC connectors and two high resolution RGB outputs on
female BNC and/or female 15-pin HD connectors. Balanced or unbalanced stereo audio is
accepted on eight captive screw connectors and is output as balanced or unbalanced on two
captive screw connectors. The ISS 408 accepts HDTV and supports 42 different output rates,
up to 1400x1050 and including 720p, 1080i, and 1080p/60.

To deliver the most flexibility for system integrators, the ISS 408 features a Preview and a
Program output. The Program output is what the audience sees. The second output is the
Preview output for viewing the "next to switch" source by the switch operator on a local monitor,
touch screen control panel, or other viewing device. For professional transitions between inputs,
the ISS 408 offers two different effects: a seamless cut and a dissolve. Both are accessible
through buttons on the front panel. When the dissolve transition is selected for a switch that
includes audio and video, the switcher will cross-fade the audio inputs, which lowers the audio of
the switched-out source while simultaneously bringing up the audio of the activated source.

The ISS 408 can be controlled and monitored through the RS-232 port or the IP Link Ethernet
port. IP Link is a high performance intelligent network integration solution specifically developed
by Extron to meet the needs of professional A/V environments. Ethernet-enabled A/V products,
such as the ISS Series, can be managed and supported by a technician or administrator at any
time from any computer with a Web browser.

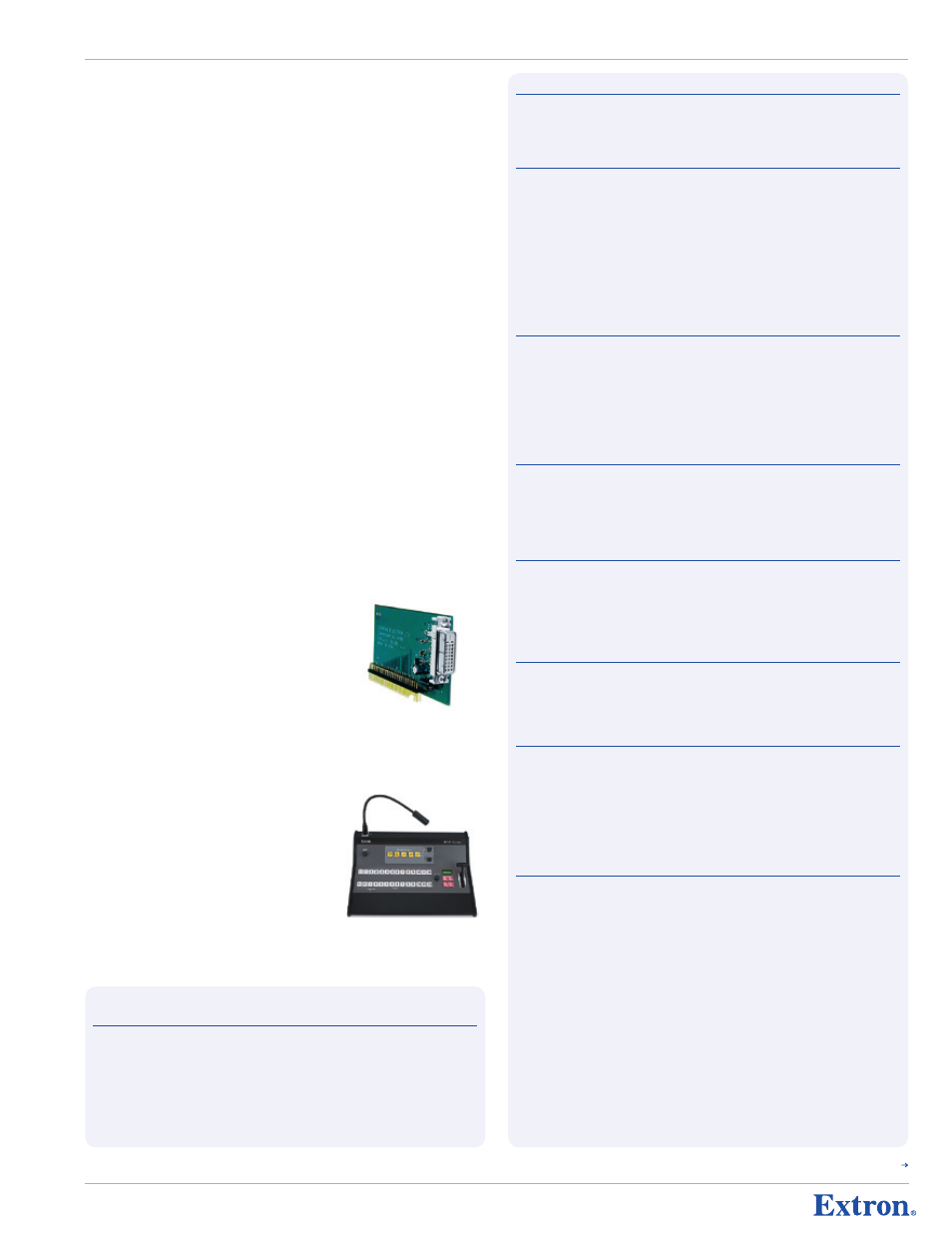

The ISS 408 accepts an optional output board for DVI-D -
Digital Visual Interface. The DVI output enables the connection
of DVI-equipped digital display devices and acts as an
additional display output when the two analog outputs are
fully utilized.

The Extron RCP 2000 Remote Control Panel is an optional
accessory device that can be used to operate the ISS 408
via an Ethernet connection. The RCP 2000 enables a user to select inputs, change transition
effects, and make adjustments to the transition duration and picture settings — all from a
remote location. In addition to input, transition, and picture buttons, the RCP 2000 is equipped
with a T-bar for manual control of dissolve speed, as well as a
gooseneck lamp for low-light environments. The ISS 408 can
be controlled simultaneously by the RCP 2000 and through
RS-232, offering the user more flexibility.

RCP 2000

DVI Output Board

ISS 408
