12
c
ontents

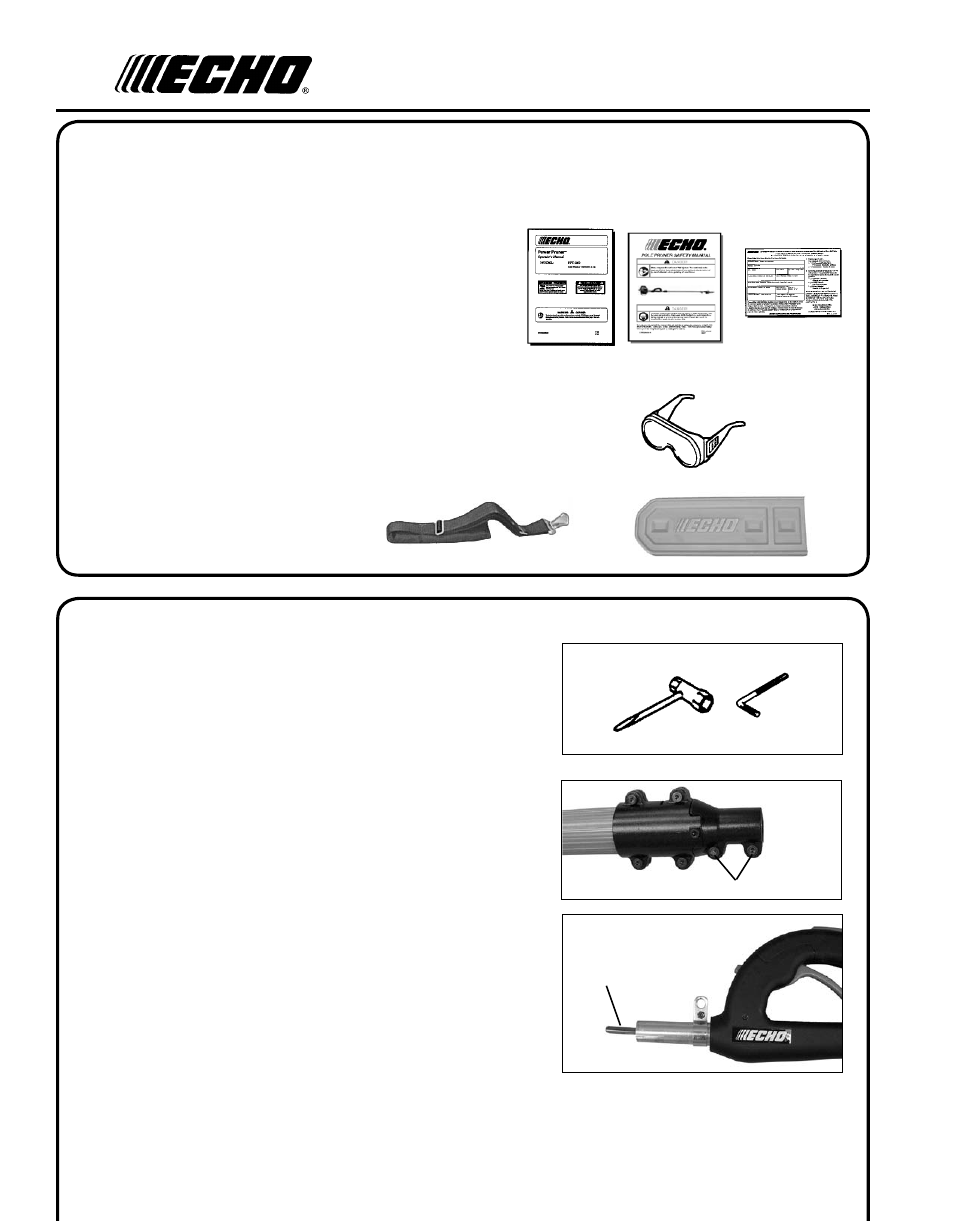

Due to packaging restriction the ECHO product you have purchased requires some assembly.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
___ Power Head
___ Handle Shaft Assembly (PPT-265 Only)
___ Drive Shaft Assembly
___ Cutting Attachment W/ Guide Bar and Saw Chain
___ Operator's Manual
___ Safety Manual
___ Warranty Registration Card
___ Assembly Tool (s)
___ Safety Glasses
___ Shoulder Harness
___ Guide Bar Cover
a
ssembly
Parts Required: Power Head, Handle Shaft Assembly, Drive Shaft
Assembly, Cutting Attachment
handle shaft
/
drIve shaft
(PPT-265 Model Only)
1. Remove protective caps from handle shaft assembly.
2. Loosen clamping bolts (A) on drive shaft.
3. Pull flexible drive shaft coupler (B) 2 -3 inches out of handle shaft.
A
B
