Electrolux ERN 1573 User Manual
Page 17
17
D724

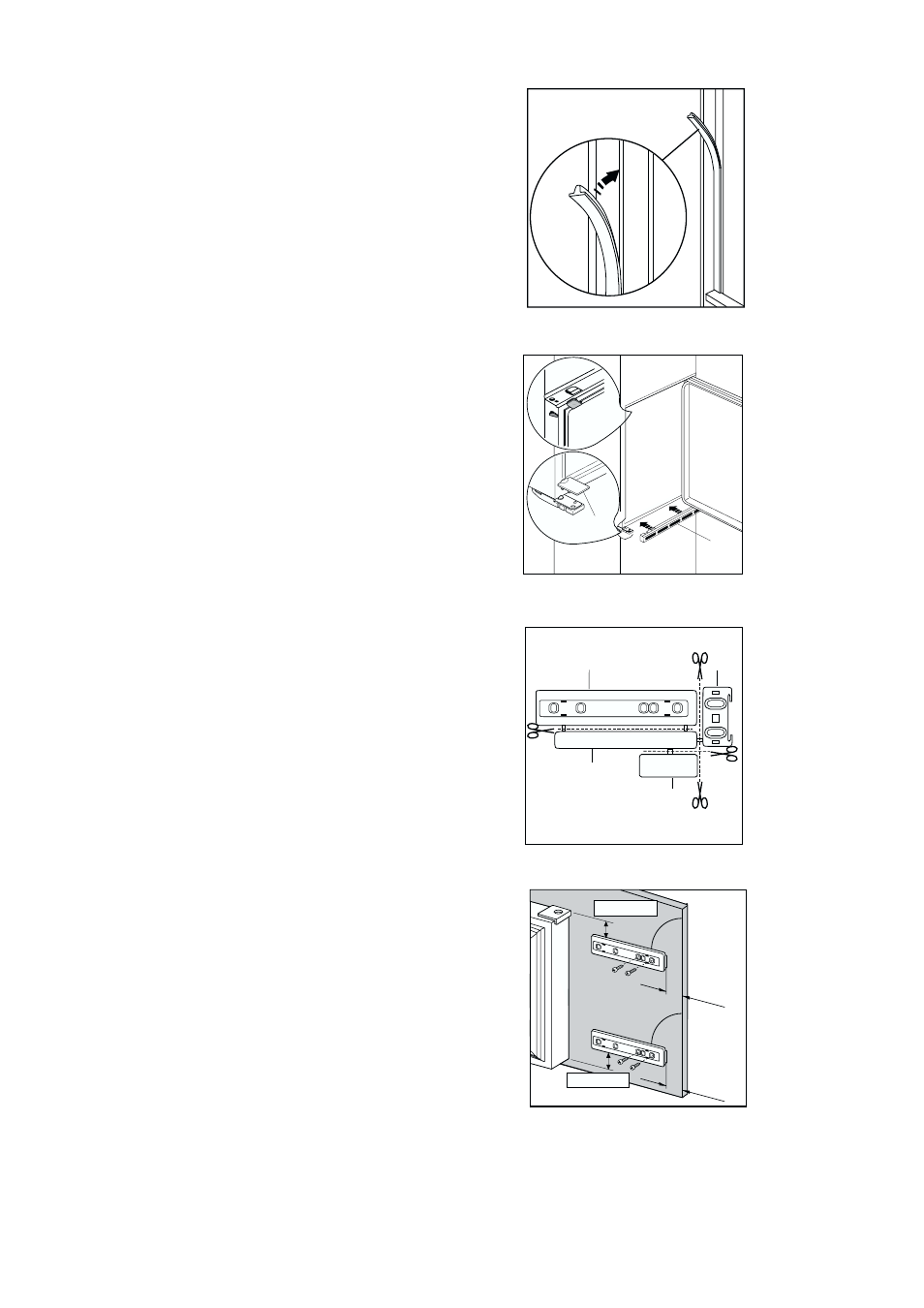

Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
PR266
Ha
Hb
Hc
Hd
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
B
E
C
D
Place guide (Ha) on the inside part of the furniture
door, up and down as shown in the figure and mark
the position of external holes. After having drilled
holes, fix the guide with the screws supplied.
21 mm
21 mm
ca. 50 mm
90°
90°
ca. 50 mm
