Continued

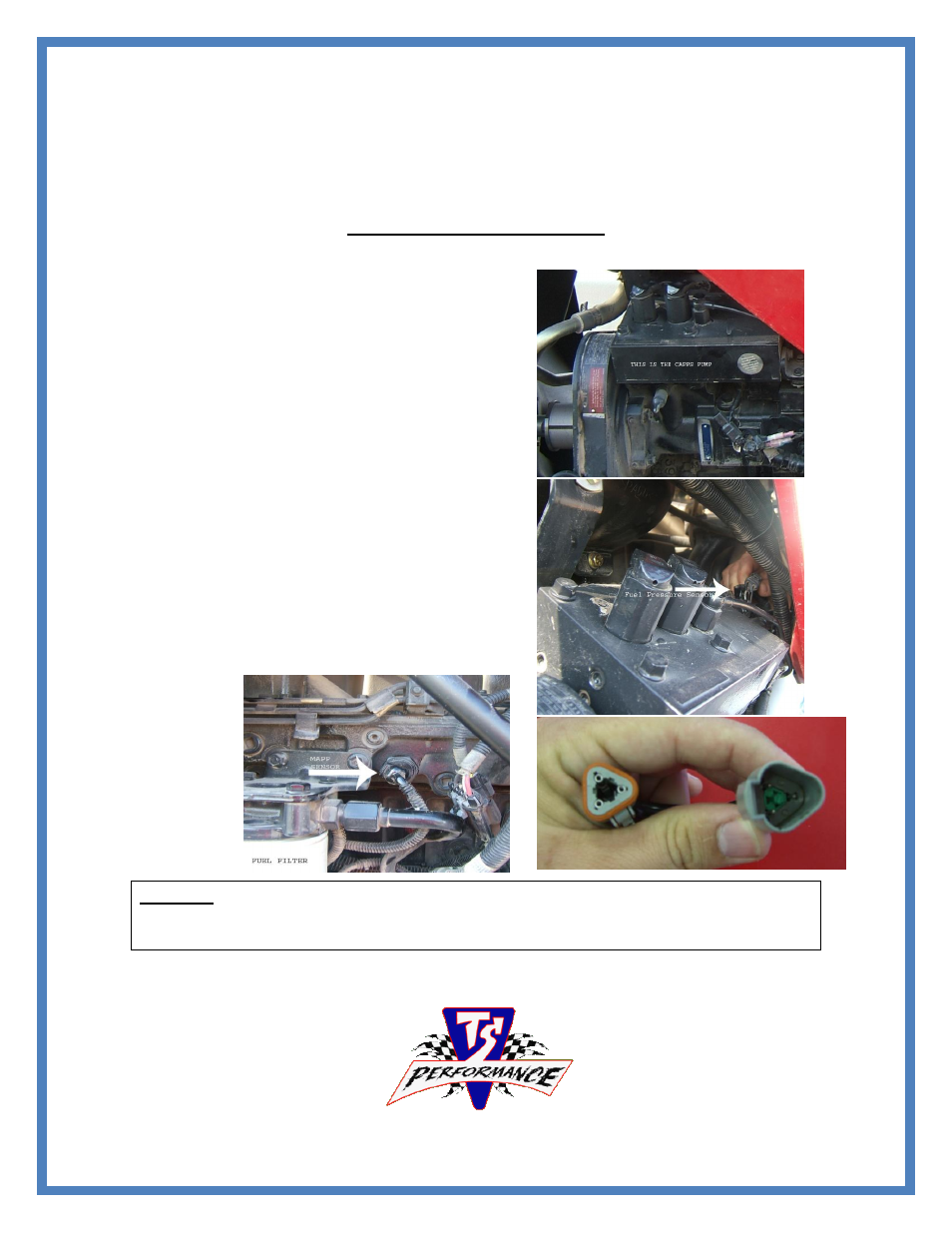

Instructions for Installation
Place Di-Electric Grease onto every electrical connection.
1. Locate the CAPS Fuel Pump. It will be located on the
side of the engine with six steel lines that run to the
injectors.
2. Now locate the fuel pressure sensor. This will be
found on the on the back side of the pump and will be
the only connector that looks the same as the
SUPPLIED harness as shown below.
3. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
4. Now plug the factory harness in to the left over
connector.
5. NEXT locate the map sensor shown in picture below.
6. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
7. Now plug the factory harness in to the left over
connector.
8. The MODULE comes with two zip ties to secure the
box.
9. Route the cables away from any moving parts or
places that might damage the cable with the zip ties
supplied.
10. The switch may be mounted in the cab or under the
hood.
DO NOT un-plug the TS PERFORMANCE MODULE unit while the engine is
running. This may cause the engine to shut down and may log codes in the
computer.
If you have any questions contact TS Performance @ 270-746-9999
