Use proper extension cords. Make sure your extension
cord is in good condition and is a 3-wire extension cord
which has a 3-prong grounding type plug and matching
receptacle which will accept the machine’s plug. When
using an extension cord, be sure to use one heavy
enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage,
resulting in loss of power and overheating. Fig. D, shows
the correct gauge to use depending on the cord length.
If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.

EXTENSION CORDS

OPERATING INSTRUCTIONS

FOREWORD

The Delta ShopMaster Model SA150 Belt/Disc Sander is a handy machine for sanding wood, metal, plastic, or ceramic
workpieces. This machine incorporates a 1" belt sander and a 5" disc sander, and uses an induction motor for long-
lasting performance. Features include automatic belt tensioning, removable belt platen, built-in dust port, and a power
take-off for mounting an accessory flexible shaft to do specialized work.

UNPACKING AND CLEANING

Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.

NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT

PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE

ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR

ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.

5

Fig. D

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES

Ampere

Total Length

Gauge of

Rating

Volts

of Cord in Feet

Extension Cord

0-6

120

up to 25

18 AWG

0-6

120

25-50

16 AWG

0-6

120

50-100

16 AWG

0-6

120

100-150

14 AWG

6-10

120

up to 25

18 AWG

6-10

120

25-50

16 AWG

6-10

120

50-100

14 AWG

6-10

120

100-150

12 AWG

10-12

120

up to 25

16 AWG

10-12

120

25-50

16 AWG

10-12

120

50-100

14 AWG

10-12

120

100-150

12 AWG

12-16

120

up to 25

14 AWG

12-16

120

25-50

12 AWG

12-16

120

GREATER THAN 50 FEET NOT RECOMMENDED

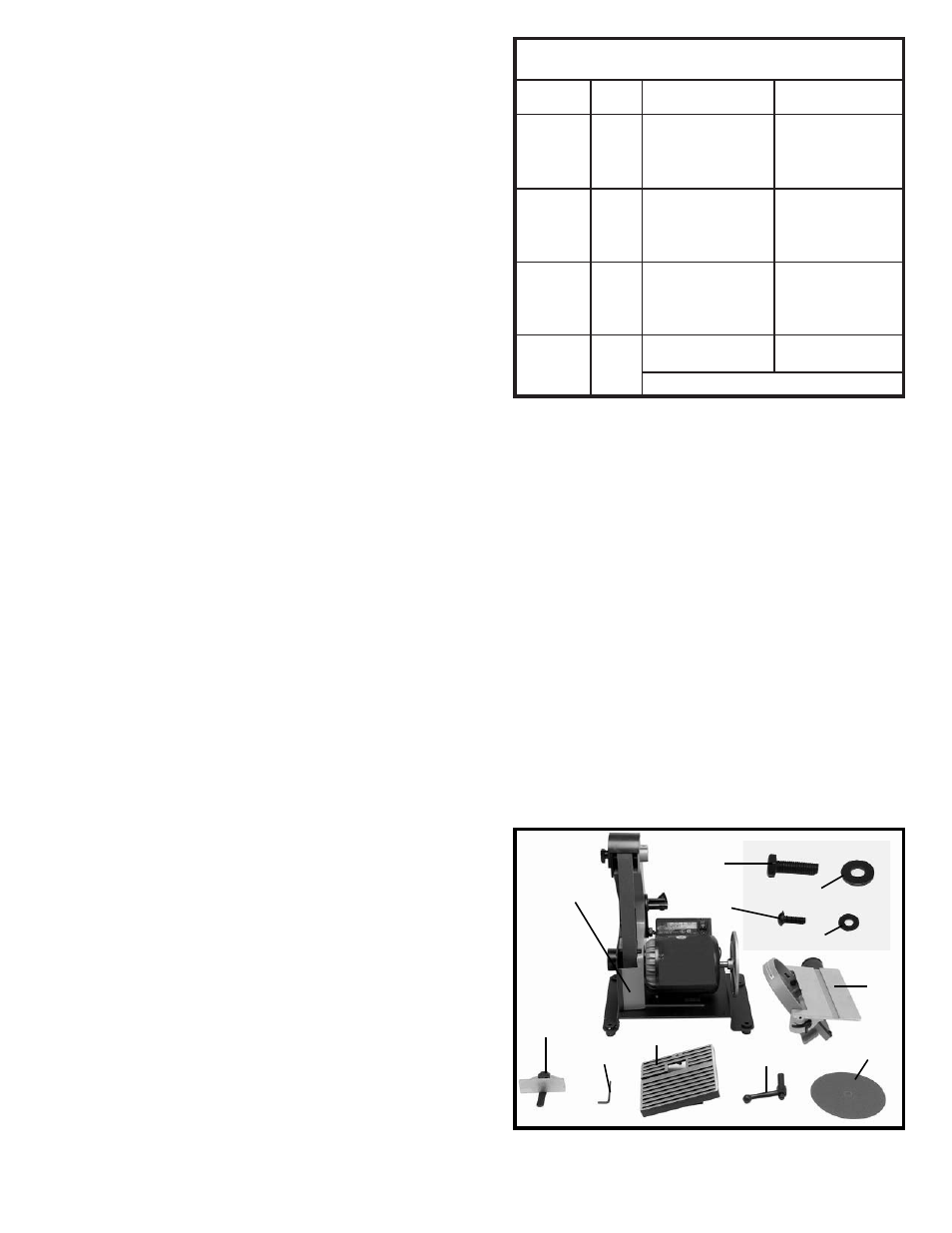

BELT / DISC SANDER PARTS

Fig. 1

1.

Motor and Base

2.

Miter Gage

3.

3mm Hex Wrench

4.

Belt Table

5.

Handle

6.

Sanding Disc

7.

Disc Guard and Table

8.

M8x1.25x30mm Hex Head Screw (1)

9.

10-24x3/8" Pan Head Screw (2)

10. M8.4 Flat Washer (1)

11. 3/16" Flat Washer (2)

1

2

3

4

5

6

7

8

9

12

13
