TS Performance 4110105 User Manual
Page 2
Continued
Installation of the TS Performance John Deere Agri-
Power module.
Read all instructions and fully understand them before installing you TS Performance John Deere
Agri-power module. Disconnect the battery terminals and remove keys from ignition before
installation.
Place Di-Electric Grease onto every electrical connection.

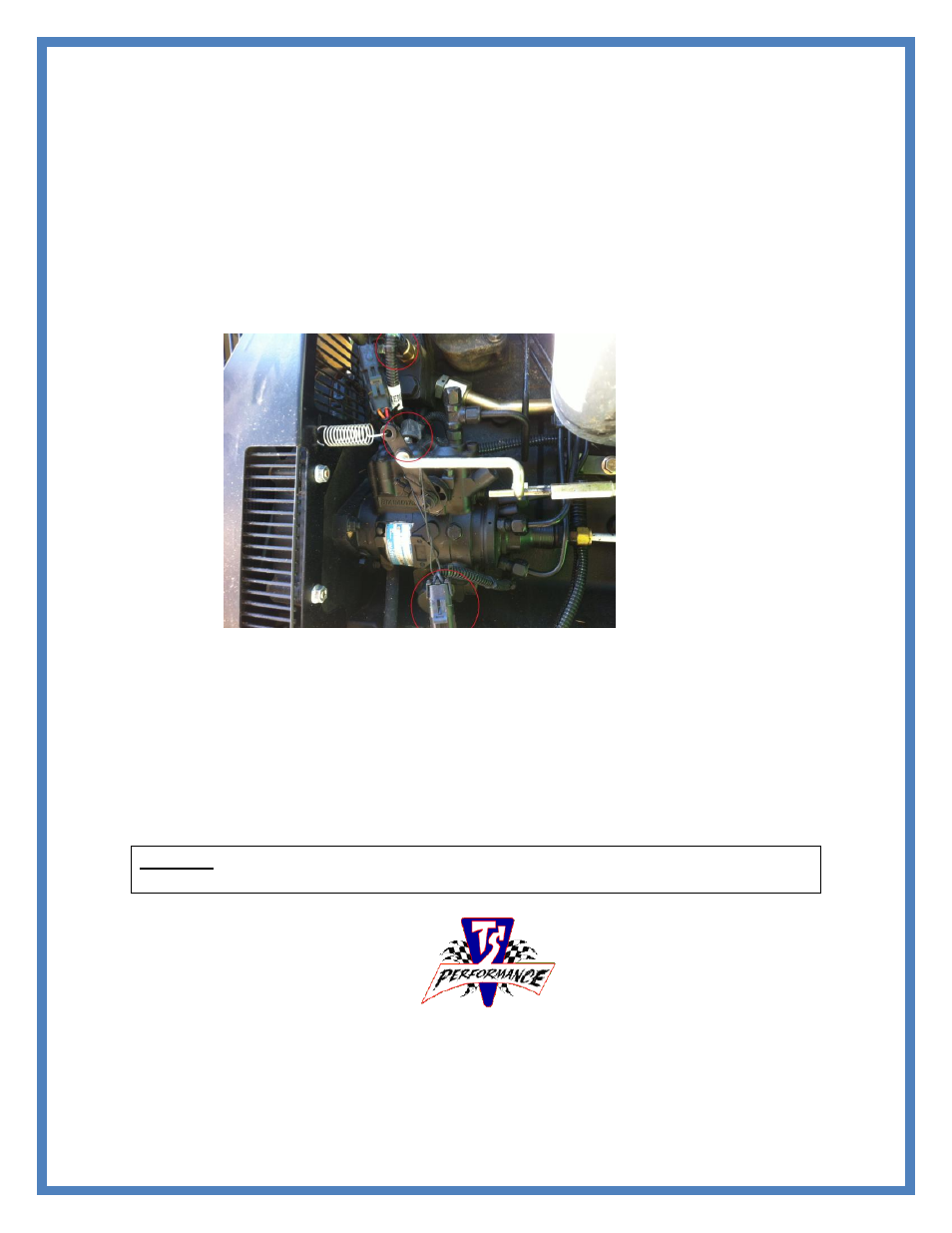

1. Locate the Fuel Temperature Sensor on the side of the motor above the pump. Attach the
matching connector on our harness to the sensor and to the factory harness going to the computer.
This is identified as the top connector in the picture above.
2. Locate the Fuel Pump Connector coming off the side of the fuel pump. Attach the matching
connectors on our harness to both sides of the harness. This is identified as the circled connector
in the bottom of the picture above.
3. Route the Red wire in our harness to a 12 volt power source. We recommend the power going to
the pump identified by the circle in the middle of the picture above.
4. Route the black wire in our harness to a clean chassis ground.
DO NOT unplug the MP-8 Module while the engine is running. This may result in
engine or component failure and may void warranty on the engine or MP-8.
If there are any questions on the product or installation of the module give us a call at TS Performance
(270) 746-9999
