Instructions for Installation
Place Di-Electric Grease onto every electrical connection.

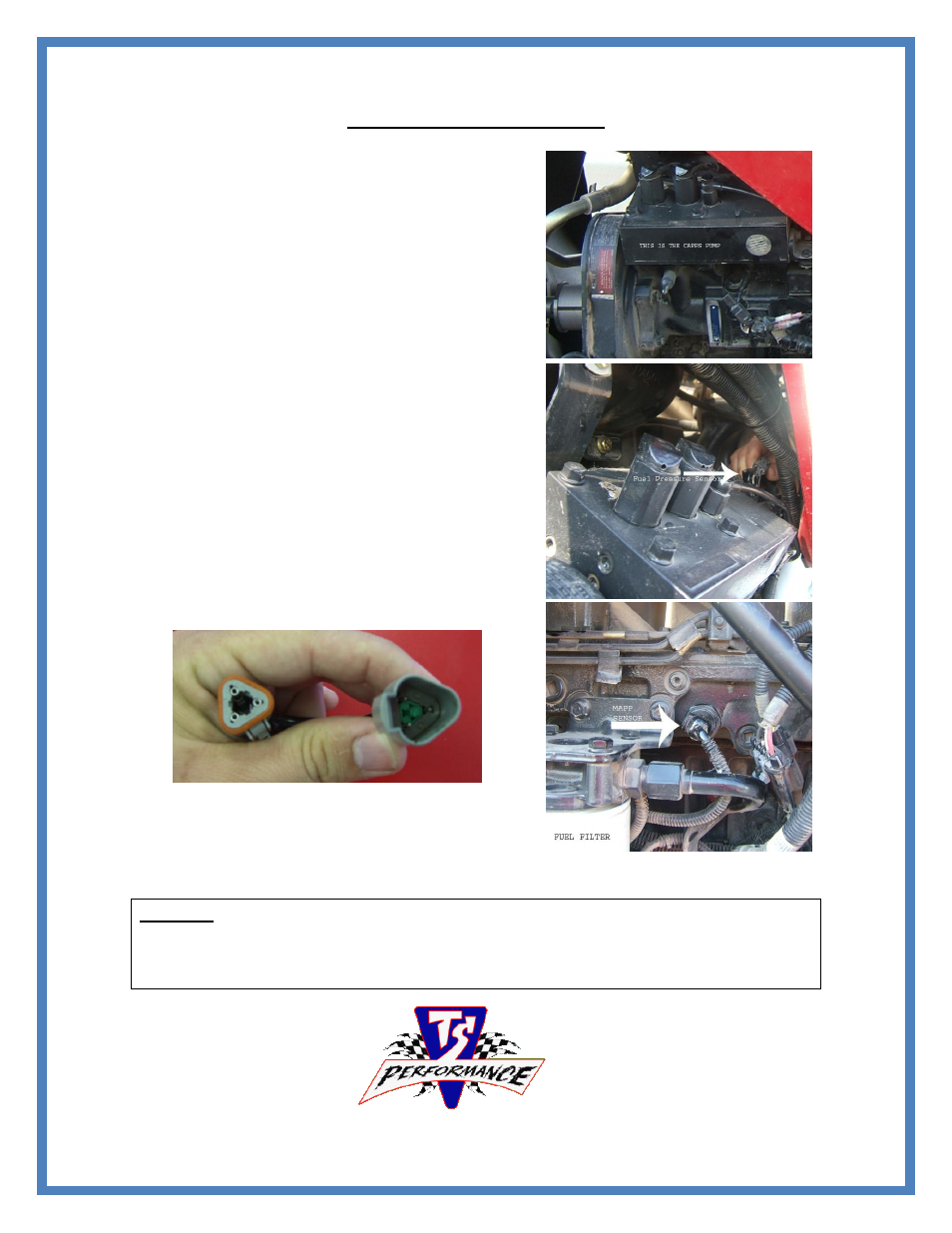

1. Locate the CAPS Fuel Pump. It will be located on the
side of the engine with six steel lines that run to the
injectors.
2. Now locate the fuel pressure sensor. This will be found
on the on the back side of the pump and will be the only
connector that looks the same as the SUPPLIED
harness as shown below.
3. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
4. Now plug the factory harness in to the left over
connector.
5. NEXT locate the map sensor shown in picture below.
6. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
7. Now plug the factory harness in to the left over
connector.
8. The MODULE comes with four zip ties to secure the
box.
9. Route the cables away from any moving parts or places
that might damage the cable with the 4” zip ties
supplied and mount the box in a dry cool location.
10. The switch may be mounted in the cab or under the
hood.
DO NOT unplug the TS PERFORMANCE MODULE unit while the engine is
running. This may result in engine or component failure and may void warranty on
the engine or the unit.
