Desa RCP80 - Manual (Page 4)

4
099684
PRODUCT
IDENTIFICATION
SPECIFICATIONS Rating (BTU/Hr)
High ................................................................................ 73,000
Low ................................................................................. 30,000
Fuel ...................................................................................... Propane Vapor Only
Fuel Consumption
Gallons/Hour .................................................................. 1.1
Pounds/Hour ................................................................... 3.7
Supply Pressure (To Regulator)
Maximum ........................................................................ 200 psi
Minimum, for input adjustment ...................................... 10 psi
Manifold Pressure (inches of water column)
High ................................................................................ 14
Low ................................................................................. 15.2
Ignitor Gap ........................................................................... 0.120"
Weight (Pounds) .................................................................. 15
Shipping Weight (Pounds) .................................................. 19
Size - L x W x H (Inches) .................................................... 18 1/2 x 16 x 23 1/8

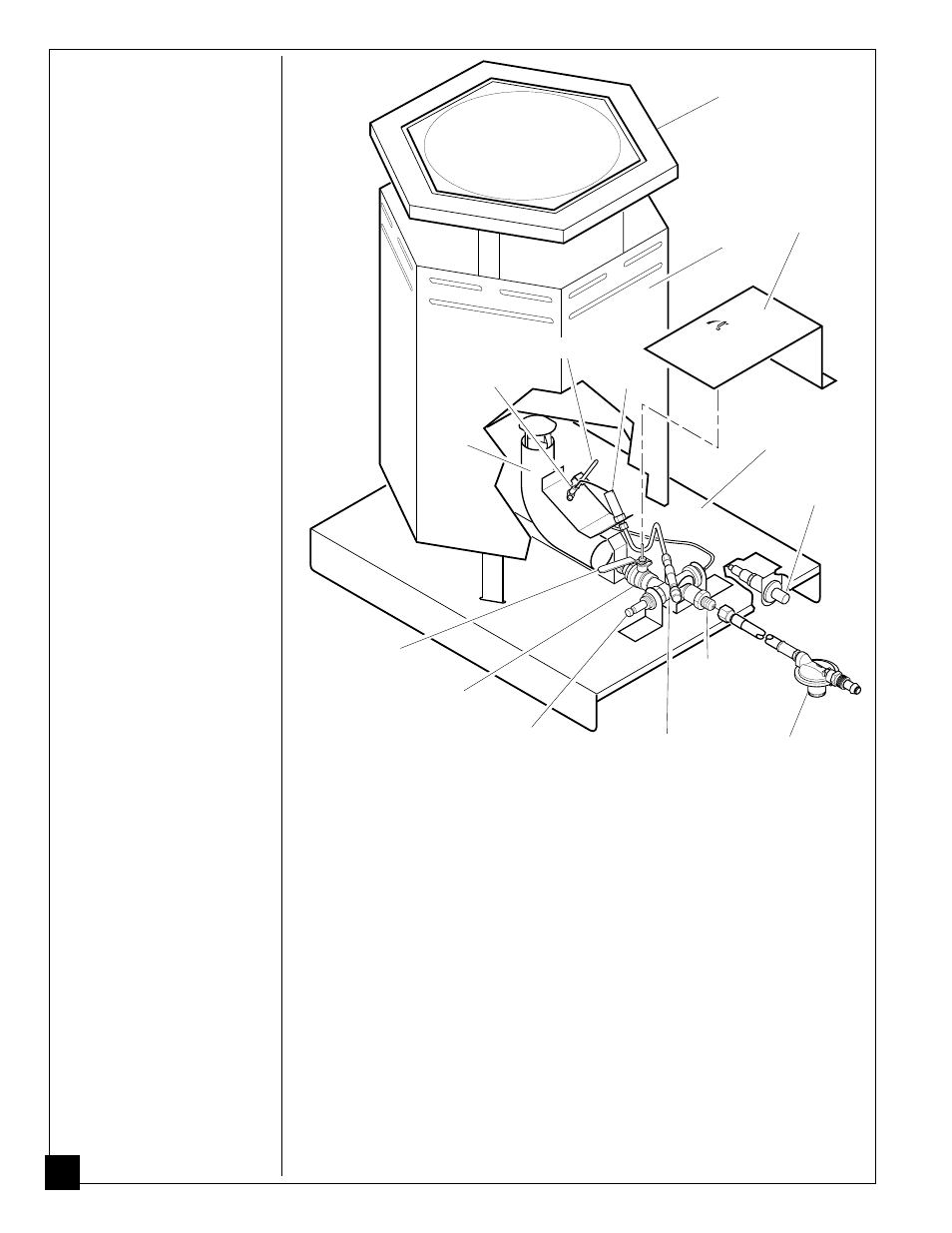

Figure 1 - Product Identification
HIGH
LOW OFF
INDICATOR
Top
Debris
Shield
Shell
Ignitor
Electrode
Pilot
Burner
Tube
Thermocouple
Base
Piezo Ignitor
Button
Main Burner
Valve
Main Burner
Valve Handle
Automatic
Control Valve
Button
Inlet
Connector
Hose/Regulator
Assembly Automatic
Control Valve
