10
English
InSTALLATIon

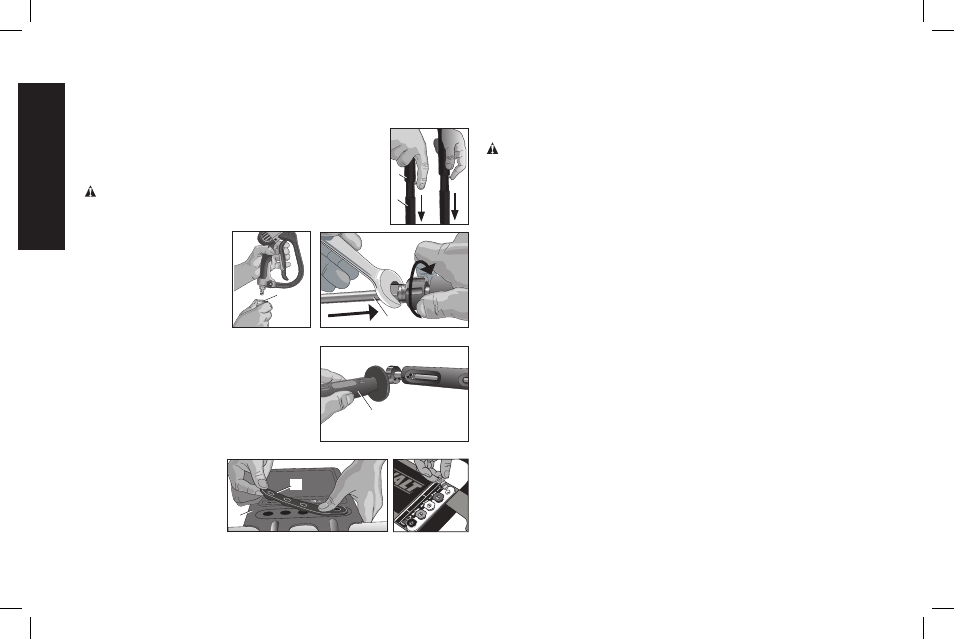

Pressure Washer Assembly (Fig. 1)
1. Place handle assembly (O) onto frame, depress
F
O
the snap buttons, and slide the handle assembly
onto the frame (F) until snap buttons are secured
in place.
CAUTION: Risk of personal injury. Avoid placing
hands between handle and frame when assembling
to prevent pinching.
2. Attach high-pressure
E
P
hose (P) to spray gun.
Make sure it is
secure.
3. Connect wand (E) to
spray gun. Make sure
connection is secure.
4. Thread the side handle (D) into spray
D
gun extension and tighten to desired
position.
5. Place the nozzle holder (B) onto the
panel assembly (A) and push each
nozzle holder into place.
6. Remove the five colored quick-connect
nozzles from the plastic bag and
insert them into
B
A
correct grommet on
the nozzle holder.
Nozzles are color
coded to match
colored nozzles on
panel assembly.
note: The high pressure pump is maintenance free and requires
no oil, if there is a problem with the pump contact a D e WALT factory
service center, a D e WALT authorized service center or other qualified
service personnel.
WARNING: Risk of bursting. Use a tire pressure gauge to check the
tires pressure before each use and while inflating tires; see the tire side-
wall for the correct tire pressure.
note: Air tanks, compressors and similar equipment used to inflate
tires can fill small tires similar to these very rapidly. Adjust pressure
regulator on air supply to no more than the rating of the tire pressure.
Add air in small increments and frequently use the tire gauge to
prevent over inflation.
oPErATIon
Pressure Adjustments
The pressure setting is preset at the factory to achieve op ti mum pres-
sure and cleaning. To lower the pres sure, follow these instructions.
1. Back away from the sur face to be cleaned. The further away you
are, the less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less
powerful stream of water and a wider spray pattern. Refer to
spray Wand nozzles.
CAUTION: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage pump.
3. Reduce the speed of the gasoline engine (RPM). Slow the
engine down and the water pressure will go down with it.
Spray Wand nozzles (Fig. 1)
The nozzles for the spray wand are stored in the nozzle holder (B) on
the panel assembly (A). Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the correct
nozzle for the job to be performed.
