2°
3°
22

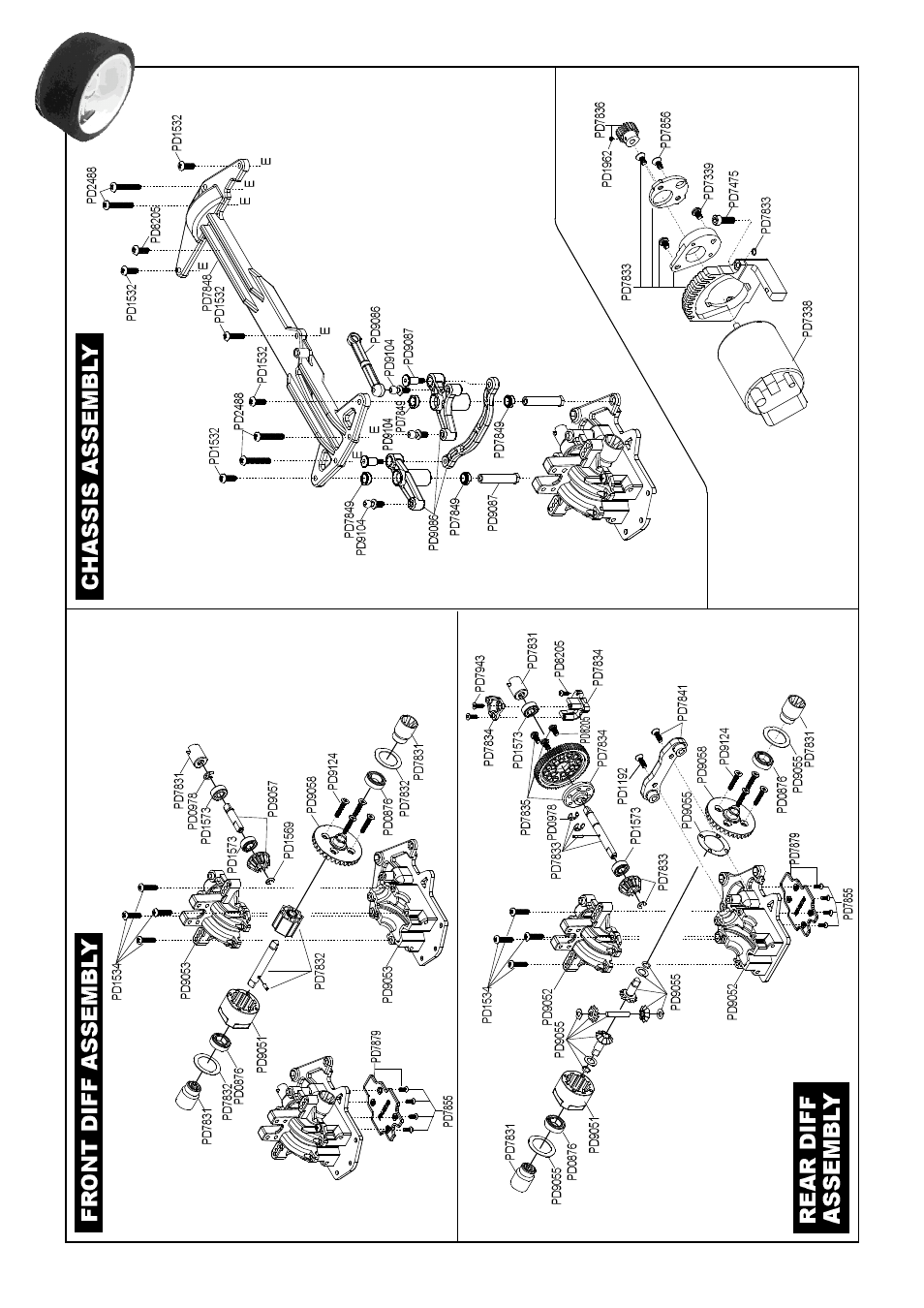

SPARROWHAWK VX PART 零件表
PD7834 SPUR GEAR MOUNT W/B.B
中央軸承座組
PD7833 DRIVE PINION&INPUT SHAFT
差速輪軸組
PD7835 SPUR GEAR HUB,72T
主齒輪組(72T)
PD7832 SOLID AXLE
中差固定塊組
PD7836 PINION GEAR, 26T
馬達齒輪
PD7838 REAR SUSPENSION ARMS
後擺臂
PD7837 MOTOR MOUNT
馬達固定座
PD7831 OUTDRIVE CUP SET
傳動軸套
PD7839 FRONT SUSPENSION ARMS
前擺臂
PD7840 UPPER LINK SET
拉桿組
PD7841 SUSP. TOE PLATE
投影板
PD7842 FRONT DOGBONES
前傳動狗骨
PD7843 REAR DOGBONES
後傳動狗骨
PD7844 MAIN DRIVESHAFT
中央傳動軸
PD7845 CHASSIS
車底盤
PD7846 SERVO MOUNT
伺服機座
PD7847 BATTERY BRACE
電池夾片
PD7848 TOP PLATE
二樓板
PD7849 NYLON BUSHINGS
轉向支柱襯套
PD7850 SHOCK SET
避震器組
PD7851 SHOCK BODY
避震器套筒組
PD6682 WHEELS (W)
輪轂組（白色)
PD7338 MOTOR W/DECAL SET
馬達零件包（540）
1/10 BBS WHEEL / BBS 輪轂
PD0855 GRAY
, 灰色 ,26mm
PD1011 WHITE
, 白色 ,26mm
PD6736 CHROME
, 鍍銀 ,26mm
PD1011-S SILVER
, 銀色 ,26mm
PART# DESCRIPTION NOTE
SPARROWHAWK VX PARTS LIST 零件表
PD0388
PD0458
PD0668
PD0876
PD0973
PD0978
PD1191
PD1192
PD1244
PD1532
PD1533
PD1534
PD1569
PD1573
PD1683
PD1962
PD2488
PD7193
PD7338
PD7339
PD7469
PD7475
PD7712
PD7831
PD7832
PD7833
PD7834
PD7835
PD7836
PD7837
PD7838
PD7839
PD7840
PD7841
PD7842
PD7843
PD7844
PD7845
PD7846
PD7847
PD7848
PD7849
PD7850
PD7851
PD7852
PD7853
PD7854
PD7855
PD7871-B
PD7879
PD7943
PD8205
PD9051
PD9052
PD9053
PD9055
PD9057
PD9058
PD9072
PD9073 BODY CLIPS(20)
BALL BEARINGS(2), d10XD15xW4
BT M. SCREW(20), M3x10
BALL BEARINGS(4), d8XD14xW4
WASHER(20), 4mm
E-CLIP(20), 4mm
CTP.M.SCREW(20), M3x8
CTP.M.SCREW(20), M3x10
LOCK NUT(10), M3
BT P.M. SCREW(20), M3x8
BT P.M. SCREW(20), M3x10
BT P.M. SCREW(20), M3x12
E-CLIP(20), 2.5mm
BALL BEARINGS(2), d5xD11xW4
BT P.M. SCREW W/W(20)
SET SCREW(20), M3x4
BT P.M. SCREW(20), M3x18
BODY CLIPS (20), 4mm
MOTOR W/DECAL SET
BT P.M. SCREW(20), M3x4
SKH.M SCREW(10), M4x12
SKH.M SCREW(10), M3x10
ANTENNA BAG
OUTDRIVE CUP SET
SOLID AXLE
DRIVE PINION&INPUT SHAFT
SPUR GEAR MOUNT W/B.B
SPUR GEAR HUB, 72T
PINION GEAR, 26T
MOTOR MOUNT
REAR SUSP. ARMS
FRONT SUSP. ARMS
UPPER LINK SET
SUSP. TOE PLATE
FRONT DOGBONES
REAR DOGBONES
MAIN DRIVESHAFT
CHASSIS
SERVO MOUNT
BATTERY BRACE
TOP PLATE
NYLON BUSHINGS
SHOCK SET
SHOCK BODY
SHOCK BOTTOM CAPS
SHOCK CLIPS
WHL HEX ADAPTER
CTP.M.SCREW(20), M2.5x6
SHOCK SPRING, BLACK, 21x1.8mm, 4COILS
BULKHEAD COVER
CTP.M.SCREW(20), M2.5x8
BT P.M. SCREW(20), M3x6
DIFFERENTIAL CASE
REAR BULK SET
FRONT BULK SET
DIFFERENTIAL GEAR SET
DRIVE PINION SET 13T
DIFF SPUR GEAR 34T
BUMPER SET
URETHANE BUMPER
25
R型插銷(20)
軸承零件包(2), d10XD15xW4
半圓頭內六角螺絲(20), M3x10
軸承零件包(4), d8XD14xW4
華司(20), 4mm
E型扣環(20), 4mm
平頭十字螺絲(20), M3x8
平頭十字螺絲(20), M3x10
止鬆螺帽(10), M3
圓頭十字螺絲(20), M3x8
圓頭十字螺絲(20), M3x10
圓頭十字螺絲(20), M3x12
E型扣環(20), 2.5mm
軸承零件包(2), d5xD11xW4
圓頭十字墊圈螺絲(20)
無頭內六角螺絲(20), M3x4
圓頭十字螺絲(20), M3x18
R型插銷 (20), 4mm
馬達零件包（540）
圓頭十字螺絲(20), M3x4
內六角螺絲(10), M4x12
內六角螺絲(10), M3x10
天線套管
傳動軸套
中差固定塊組
差速輪軸組
中央軸承座組
主齒輪組(72T)
馬達齒輪(26T)
馬達固定座
後擺臂
前擺臂
拉桿組
投影板
前傳動狗骨
後傳動狗骨
中央傳動軸
車底盤
伺服機座
電池夾片
二樓板
轉向支柱襯套
避震器組
避震器套筒組
避震器下座組
調整夾
傳動輪軸
平頭十字螺絲(20), M2.5x6
避震器彈簧(黑色), 4迴圈
差速箱下蓋板
平頭十字螺絲(20), M2.5x8
圓頭十字螺絲(20), M3x6
差速器本體
後差速箱上下蓋組
前差速箱上下蓋組
差速組齒輪
差速小傘齒(13T)
差速大傘齒(34T)
前防撞板
防撞泡綿
中文名稱
23
SPARROWHAWK VX PART 零件表
PD9057 DRIVE PINION SET 13T
差速小傘齒(13T)
PD9055 DIFFERENTIAL GEAR SET
差速組齒輪
PD9058 DIFF SPUR GEAR 34T
差速大傘齒(34T)
PD9053 FRONT BULK SET
前差速箱上下蓋組
PD9072 BUMPER SET
前防撞板
PD9074 SHOCK TOWER SET
避震器支架
PD9073 URETHANE BUMPER
防撞泡綿
PD9052 REAR BULK SET
後差速箱上下蓋組
PD9077 STEERING BLOCK SET
轉向臂
PD9078 CASTER BLOCK SET
C型座組
PD9080 OUTER HINGE PIN SET
軸承針組
PD9083 INNER HINGE PIN SET
擺臂軸
PD9086 SWING RACK SET
轉向曲柄組
PD9087 SWING POST SCREW
轉向軸
PD9090 HUB CARRIER SET
後輪座
PD9109 BODY POST SET
車殼支柱
PD9110 HXE ADAPTER SET
六角輪轂轉換座組
SLICK TIRE W/FOAM / 光頭胎
PD9134 , 26mm
PD7853 SHOCK CLIPS
調整夾
PD9051 DIFFERENTIAL CASE
差速器本體
PD7852 SHOCK BOTTOM CAPS
避震器下座組
24
SPARROWHAWK VX PART 零件表
21 20 19
(4)
(4)
(4)
(4)
(2)
PD0668 M3x10(20)
PD0973 4B (20)
PD9131 M2.6x10(20)
PD1244 M3B (20)
PD0874 d5xD10xW4(4)
PD1573 d5xD11xW4(2)
PD0458 d10xD15xW4(2)
PD0876 d8xD14xW4(4)
PD7475 M3x10B (20)
PD7469 M4x12B (20)
CT P.M.SCREW
平頭墊圈十字螺絲
PD1962 M3x4B (20)
PD9126 M4x10B (20)
SET SCREW
無頭內六角螺絲
CT P.M.SCREW
平頭十字螺絲
PD1569 4 (20)
PD0978 2.5 (20)
PD1683 M3x10B (20)
PD9133 M2x4B(20)
BT P. TAP SCREW
R型插銷
BT P.M. SCREW
圓頭十字螺絲
PD1532 M3x8B (20)
PD1533 M3x10B (20)
PD8205 M3x6B (20)
PD2488 M3x18B (20)
PD1534 M3x12B (20)
PD7339 M3x4B (20)
PD0388 CLIPS (20)
PD7193 HNLR5 (20)
PD7943 M2.5x8B(20)
PD1191 M3x8B(20)
PD1192 M3x10B(20)
PD9124 M2.5x12B(20)
PD7855 M2.5x6B(20)
(2)
(2)
PD7712 ANTENNA BAG
天線套管
(4) (2)
PART# DESCRIPTION NOTE
SPARROWHAWK VX PARTS LIST 零件表
PD9074
PD9077
PD9078
PD9080
PD9083
PD9086
PD9087
PD9090
PD9104
PD9105
PD9107
PD9109
PD9110
PD9124
PD9126
PD9131
PD9133 SHOCK TOWER SET
STEERING BLOCK SET
CASTER BLOCK SET
OUTER HINGE PIN SET
INNER HINGE PIN SET
SWING RACK SET
SWING POST SCREW
HUB CARRIER SET
BALL STUD, L
BALL STUD, S
STEERING SERVO HORN SET
BODY POST SET
HXE ADAPTER SET
CT P.M.SCREW(20), M2.5x12
SET SCREW(20), M4x10
CT P.M.SCREW(20), M2.6x10
BT P. TAP SCREW(20), M2x4
26
避震器支架
轉向臂
C型座組
軸承針組
擺臂軸
轉向曲柄組
轉向軸
後輪座
球頭座
球頭座
轉向拉桿緩衝組
車殼支柱
六角輪轂轉換座組
平頭十字螺絲(20), M2.5x12
無頭內六角螺絲(20), M4x10
平頭墊圈十字螺絲(20), M2.6x10
圓頭十字螺絲(20), M2x4
中文名稱
E-CLIP
E型扣環
SK.H.M SCREW
內六角螺絲
LOCK NUT
止鬆螺帽
BT.MACH. SCREW
半圓頭內六角螺絲
HOOK PIN (R) BAG
止鬆螺帽
WASHER
平墊圈
BALL BEARING
滾珠軸承
27
SPARROWHAWK VX OPTION PART 改裝配件
PD7871 SHOCK SPRING,(BL)
避震器彈簧(藍)21x1.6mm
PD7870 FRONT UNINI SHAFT
前傳動軸組
PD7872 SHOCK SPRING,(R)
避震器彈簧(紅)21x1.6mm
PD7869 REAR UNINI SHAFT
後傳動軸組
PD7873 ALUM THREAD SHOCK SET
避震器套筒組
PD7875 CFRP TOP PLATE
二樓板(碳纖板)
PD7874 STEEL MAIN DRIVESHAFT
中央傳動軸
PD7868 ALUM TURNBUCKLE SET
擺臂及轉向拉桿組
PD7876 ALUM HEX ADAPTER
鋁合金改裝六角輪骨轉換器
PD7877 AL BATT. STRAP SCREW
電池夾片螺絲
PD7878 CFRP BATT. STRAP
碳纖維電池夾板
PD7866 CFRP CHASSIS
車底板(碳纖板)
PD7867 BATT.BRACE&ACC
車底板附件組
PD7865 ALUM MOTOR MNT.
馬達固定座
PART# DESCRIPTION NOTE
SPARROWHAWK VX OPTION PARTS LIST 改裝零件表
PD7033
PD7034
PD7035
PD7036
PD7037
PD7039
PD7722
PD7723
PD7724
PD7865
PD7866
PD7867
PD7868
PD7869
PD7870
PD7871
PD7872
PD7873
PD7874
PD7875
PD7876
PD7877
PD7878
PD7968
PD7969
PD9082
PD9084
PD9085
PD9130
PD9140
PD9141
PD9142
PD9143
PD9144
PD9145
PD9146
PD9149
PD9154
1340
2705 馬達驅動齒19齒
馬達驅動齒20齒
馬達驅動齒21齒
馬達驅動齒22齒
馬達驅動齒23齒
馬達驅動齒25齒
鋁合金改裝轉向臂
鋁合金改裝C型座組
鋁合金改裝後輪座
馬達固定座
車底板(碳纖板)
車底板附件組
擺臂及轉向拉桿組
後傳動軸組
前傳動軸組
避震器彈簧(藍), 4迴圈
避震器彈簧(紅), 3.2迴圈
避震器套筒組
中央傳動軸
二樓板(碳纖板)
鋁合金改裝六角輪骨轉換器
電池夾片螺絲
碳纖維電池夾板
鋁合金改裝轉向搖臂
鋁合金改裝轉向曲柄
擺臂軸套
前投影板(0度)
後投影板(2.5度)
滾珠軸承 5x8x2.5mm
火燄貼紙,藍
火燄貼紙,黃
火燄貼紙,紅
碳纖維前防撞上板
碳纖維前避震器支架
碳纖維後避震器支架
碳纖維差速箱下蓋板
後投影板(2度/3度)
上擺臂拉桿組
旋轉調車架
LED 改裝燈組
29
MOTOR PINION GEAR, 19T
MOTOR PINION GEAR, 20T
MOTOR PINION GEAR, 21T
MOTOR PINION GEAR, 22T
MOTOR PINION GEAR, 23T
MOTOR PINION GEAR, 25T
ALUM STEERING BLOCK SET
ALUM CASTER BLOCK SET
ALUM HUB CARRIER SET
ALUM MOTOR MNT.
CFRP CHASSIS
BATTERY BRACE&ACC.
ALUM TURNBUCKLE SET
REAR UNINI SHAFT
FRONT UNINI SHAFT
SHOCK SPRING,21x1.6mm (BLUE), 4COILS
SHOCK SPRING,21x1.6mm (RED), 3.2COILS
ALUM THREAD SHOCK SET
STEEL MAIN DRIVESHAFT
CFRP TOP PLATE
ALUM HEX ADAPTER
ALUM BATTERY STRAP SCREW
CFRP BATTERY STRAP
ALUM STEERING BELLCRANK
ALUM STEERING SLIDER
SUSPENSION ARM MOUNT BUSHING
FRONT TOE PLATE, 0
REAR TOE PLATE, 2.5
BALL BEARING 5x8x2.5mm
FLAME DECAL,BLUE
FLAME DECAL,YELLOW
FLAME DECAL,RED
CFRP BUMPER TOP PLT
CFRP FR SHK TOWER
CFRP REAR SHOCK TOWER
CFRP BULK LOWER COVER
ALUM REAR TOE BLOCK 2 /3
ALUM UPPER ROD
ROTATING CAR STAND
LED LIGHTING KIT
中文名稱
JD7138 V2
PART#DESCRIPTION NO TE 中文名稱
PD8257
PD8258
PD8259
PD8260
PD8261
PD8262
PD8263
PD8264
PD8265
PD8286
PD8287
PD8288
PD8289
PD8290
PD8291 PAINTED Z-TUNE
CLEAR Z-TUNE W/DECAL
Z-TUNE DECAL SET
PAINTED BMW M6
CLEAR BMW M6 W/DECAL
BMW M6 DECAL SET
PAINTED AUDI TT
AUDI TT DECAL SET
CLEAR AUDI TT W/DECAL
PAINTED 350Z
CLEAR 350Z W/DECAL
350Z DECAL SET
PAINTED
XANAVI GT-R R34
CLEAR
XANAVI GT-R R34 W/DECAL
XANAVI GT-R R34
DECAL SET
完成車殼， Z-TUNE
透明車殼及貼紙，
Z-TUNE
貼紙，
Z-TUNE
完成車殼，
BMW M6
透明車殼及貼紙，
BMW M6
貼紙，
BMW M6
完成車殼，
AUDI TT
貼紙，
AUDI TT
透明車殼及貼紙，
AUDI TT
完成車殼車殼，
350Z
透明車殼及貼紙，
350Z
貼紙，
350Z
完成車殼車殼，
XANAVI GT-R R34
透明車殼及貼紙，
XANAVI GT-R R34
貼紙，
XANAVI GT-R R34
30
BOD Y SHELLS
車殼
PD9105 BALL STUD, S
球頭座
PD9107 STEERING SERVO HORN SET
轉向拉桿緩衝組
PD9104 BALL STUD, L
球頭座
PD7871-B HOCK SPRING, BLACK
避震器彈簧(黑色)21x1.8mm
PD7879 BULKHEAD COVER
差速箱下蓋版
(4)
28
SPARROWHAWK VX OPTION PART 改裝配件
PD9145 CFRP REAR SHOCK TOWER
碳纖維後避震器支架
PD9144 CFRP FR SHK TOWER
碳纖維前避震器支架
PD9154 ALUM.UPPER ROD
上擺臂拉桿組
NO.2705 LED LIGHTING KIT
LED 改裝燈組
NO.1340 ROTATING CAR STAND
旋轉調車架
PD9143 CFRP BUMPER TOP PLT
碳纖維前防撞上板
PD9142 FLAME DECAL,RED
火燄貼紙,紅
PD9146 CFRP BULK LOWER COVER
碳纖維差速箱下蓋板
PD9141 FLAME DECAL,YELLOW
火燄貼紙,黃
PD7722 ALUM STEERING BLOCK SET
鋁合金改裝轉向臂
PD7723 ALUM CASTER BLOCK SET
鋁合金改裝C型座組
PD7724 ALUM HUB CARRIER SET
鋁合金改裝後輪座
PD7968 ALUM STEERING BELLCRANK
鋁合金改裝轉向搖臂
PD7969 ALUM STEERING SLIDER
鋁合金改裝轉向曲柄
PD9082 SUSP.ARM MOUNT BUSHING
擺臂軸套
PD9130 BALL BEARING 5x8x2.5mm
滾珠軸承 5x8x2.5mm
PD9140 FLAME DECAL,BLUE
火燄貼紙,藍
AQ0802
AQ0803 AQ0804
AQ0801
PD9149 ALUM. REAR TOE BLOCK
後投影板(2 /3 )
PD9084 FRONT TOE PLATE
前投影板(0 )
PD9085 REAR TOE PLATE
後投影板(2.5 )
(8) (8) (8)
FIRE BLADE TIRE / 高速火炎輪胎
PD9158 ,26mm
5-SPOKE WHEEL / 5 爪輪轂組
PD6601-L C/BLUE 雙色電鍍藍 , 26mm
PD6601-P C/PURPLE 雙色電鍍紫 , 26mm
PD6601-Y C/YELLOW 雙色電鍍黃 , 26mm
PD6601-R C/ROUGE 雙色電鍍紅 , 26mm
SPRINT DRIFT TIRE / 疾速甩尾胎
PD7643 ,26mm
PD7644 ,30mm
P AR T# DESCRIPTION NO TE 中文名稱
HIGH GRIP TIRE / 高捉地力胎
PD1784 ,26mm
PULSE DRIFT TIRE / 脈衝甩尾胎
PD7645 ,26mm
PD7646 ,30mm
PD0635
PD0639
PD0855
PD1011
PD1011-S
PD6601-L
PD6601-P
PD6601-Y
PD6601-R
PD6679
PD6681
PD6682-B
PD6682
PD6736
PD7647
PD7648
PD7649
PD7650
PD7699
PD7700
PD1784
PD7643
PD7644
PD7645
PD7646
PD9158
PD9112
PD9113
PD9113-S
PD9134 8 SPK WHEEL (2), 26mm (GOLD)
8 SPK WHEEL
(2), 26mm (WHITE)
10 BBS WHEEL
(2) , 26mm (GRAY )
10 BBS WHEEL
(2) , 26mm (WHITE)
10 BBS WHEEL
(2) , 26mm (SILVER)
5 SPOKE WHEEL (2), 26mm (C/BLUE)
5 SPOKE WHEEL (2), 26mm (C/PURPLE)
5 SPOKE WHEEL (2)), 26mm (C/YELLOW
5 SPOKE WHEEL (2), 26mm (C/RED)
5 SPOKE WHEEL (2), 26mm (GOLD)
5 SPOKE WHEEL (2), 26mm (CHROME)
5 SPOKE WHEEL (2), 26mm (BLACK)
5 SPOKE WHEEL (2), 26mm (WHITE)
10 BBS WHEEL
(2) , 26mm ( CHROME )
FOAM TIRE SET (2), 26mm
FOAM TIRE SET (2), 30mm
RACING DISH WHEEL (2), 26mm (WHITE)
RACING DISH WHEEL (2), 30mm (WHITE)
10 SPK SPORT WHEEL (2), 26mm (WHITE)
10 SPK SPORT WHEEL (2), 30mm (WHITE)
HIGH GRIP TIRE (2), 26mm
SPRINT DRIFT TIRE (2), 26mm
SPRINT DRIFT TIRE (2), 30mm
PULSE DRIFT TIRE (2), 26mm
PULSE DRIFT TIRE (2), 30mm
FIRE BLADE TIRE (2), 26mm
10 SPK
WHEEL (2) , 26mm (BLACK)
8 SPK
WHEEL (2) , 26mm (BLACK)
8-SPK WHEEL
(2) , 26mm (SILVER)
SLICK TIRE W/FOAM
(2) , 26mm
8爪輪轂 (2) , 26mm (電鍍金 )
8爪輪轂
(2) , 26mm (白色 )
10
爪 BBS 輪轂 (2) , 26mm (灰色 )
10
爪 BBS 轂 輪轂 (2) , 26mm (白色 )
10
爪 BBS 轂 輪轂 (2) , 26mm (銀色 )
5爪輪轂組
(2), 26mm (雙色電鍍藍 )
5爪輪轂組
(2), 26mm (雙色電鍍紫 )
5爪輪轂組
(2), 26mm (雙色電鍍黃 )
5爪輪轂組
(2), 26mm (雙色電鍍紅 )
5爪輪轂組
(2), 26mm (電鍍金 )
5爪輪轂組
(2), 26mm (電鍍銀 )
5爪輪轂組
(2), 26mm (黑 色 )
5爪輪轂組
(2), 26mm (白 色 )
10
爪 BBS 輪轂 (2) , 26mm (鍍銀 )
高速海綿胎組
(2) , 26mm
高速海綿胎組
(2) , 30mm
蝶式輪轂
(2), 26mm (白 色 )
蝶式輪轂
(2), 30mm (白 色 )
10
爪輪轂 (2), 26mm (白 色 )
10
爪輪轂 (2), 30mm (白 色 )
高捉地力胎
(2), 26mm
疾速甩尾胎
(2), 26mm
疾速甩尾胎
(2), 30mm
脈衝甩尾胎
(2), 26mm
脈衝甩尾胎
(2), 30mm
高速火炎輪胎
(2), 26mm
10
爪輪轂 (2) , 26mm (黑 色 )
8爪輪轂
(2) , 26mm (黑 色 )
8爪輪轂
(2) , 26mm (銀色 )
光頭胎
(2), 26mm
5-SPOKE WHEEL / 5 爪輪轂組
PD6679 GOLD 電鍍金 , 26mm
PD6681 CHROME 電鍍銀 , 26mm
PD6682-B BLACK 黑色 , 26mm
PD6682 WHITE 白色 , 26mm
RACING DISH WHEEL / 蝶式輪轂
PD7649 WHITE 白色 , 26mm
PD7650 WHITE 白色 , 30mm
10-SPOKE WHEEL / 10 爪輪轂
PD7699 WHITE 白色 , 26mm
PD7770 WHITE 白色 , 30mm
PD9112 BLACK 黑色 , 26mm
(2) (2)
(2) (2)
(2) (2) (2) (2)
Insert Foam Included. Insert Foam Included.
31
WHEEL & TIRE OPTION P AR T LIST
輪胎與輪轂
8-SPOKE WHEEL / 8 爪輪轂
PD0635 GOLD, 電鍍金 , 26mm
PD0639 WHITE, 白色 , 26mm
PD9113 BLACK 黑色 , 26mm
PD9113-S SILVER, 銀色 , 26mm
(2)
32
(12)
(6)
No.2937 Ni-MH Battery Pack/Flat,
7.2V/2400mAh SC
No.2941 Ni-MH Battery
Pack/Flat, 7.2V/3600mAh SC
7.2V Ni-MH Battery Pack / Stick
電池
Electronic Speed Control
速控器
No.8050 Veloci RS
Receiver(TR 203A)
接收機
Digital Servo
數位伺服機
No.8128 Digital Standard / DS1313 No.8127 Digital High Torque / DS1015
Torque 4.8V/6V(oz-in)
Torque 4.8V/6V(Kg-cm)
Speed 4.8V/6V(sec/60
0 )
Gear
Bearing
Size LxWxH(in)
Size LxWxH(mm)
Weight(oz/gram)
161.1 / 201.4
11.6 / 14.5
0.138 / 0.108
M
2BB
1.65 x 0.81 x 1.56
41.8 x 20.6 x 39.6
2.328 / 66
Specifications
Torque 4.8V/6V(oz-in)
Torque 4.8V/6V(Kg-cm)
Speed 4.8V/6V(sec/60
0 )
Gear
Bearing
Size LxWxH(in)
Size LxWxH(mm)
Weight(oz/gram)
133.3 / 173.6
9.6 / 12.5
0.16 / 0.13
M
2BB
1.65 x 0.81 x 1.56
41.8 x 20.6 x 39.6
2.328 / 66
Specifications
Item No.
Frequency (MHz)
Channel
BEC
Modulation
Single Conversion
Channel Spacing
Battery Power
Current Drain
Dimensions (mm)
Weight (g/oz.)
ESC Continous Current
ESC Resistor AQ0649 / AQ0574 / AQ0650
26 / 27 / 40
2CH
No
AM(PPM)
455KHz
10KHz
4.8~6V
10mA@6V
35.6x26x15
10 / 0.32
***
***
Specifications
Item No.
Voltage range
Internal resistance
Momentary Load (1 sec)
Brief Load (30 sec)
Continuous Load (5 min)
BEC Voltage
BEC Current
Frequency
Reverse
Reverse Limit (sec)
Motor Limit
Over Load Protection
Setup Procedure
Mode Switch (recerse/brake)
Weight (g/oz.)
Dimension (mm)
Rec. Vehicle 8050
4.8~8.4V
0.004
400A
230A
170A
5V
1.5A
2.0 KHz
Yes
Yes (8 sec)
17+turns
Yes
Digital / Push Button
Yes
71 / 2.50
49 x 36 x 28
1/10 Car
Specifications
PD8257 PAINTED BODY SET
完成車殼，
SKYLINE Z-TUNE
PD8286 PAINTED BODY SET
完成車殼， NISSAN 350Z
PD8289 PAINTED BODY SET
完成車殼，
XANAVI GT-R (R34)
PD8258 CLEAR BODY W/DECAL
透明車殼及貼紙， SKYLINE Z-TUNE
PD8259 DECAL SET
貼紙， SKYLINE Z-TUNE
PD8287 CLEAR BODY W/DECAL
透明車殼及貼紙， NISSAN 350Z
PD8288 DECAL SET
貼紙， NISSAN 350Z
PD8290 CLEAR BODY W/DECAL XANAVI GT-R (R34)
透明車殼及貼紙
PD8291 DECAL SET XANAVI GT-R (R34)
貼紙
PD8260 PAINTED BODY SET
完成車殼， BMW M6
PD8261 CLEAR BODY W/DECAL
透明車殼及貼紙，
BMW M6
PD8262 DECAL SET
貼紙， BMW M6
PD8263 PAINTED BODY SET
完成車殼， AUDI TT
PD8265 CLEAR BODY W/DECAL
透明車殼及貼紙，
AUDI TT
PD8264 DECAL SET
貼紙， AUDI TT
OPTION AL ELECTR ONICS
選配電子產品
※ALUM=ALUMINUM
※CFRP=CARBON FIBER REINFORCED PLATE
※ALUM=ALUMINUM
※CFRP=CARBON FIBER REINFORCED PLATE
※ALUM=ALUMINUM
※CFRP=CARBON FIBER REINFORCED PLATE
(2)
Motor Pinion Gear 馬達驅動齒
PD7033 19T
PD7034 20T
PD7035 21T
PD7036 22T
PD7037 23T
PD7039 25T
4COILS / 4迴圈
HARD 硬
4COILS / 4迴圈 3.2COILS / 3.2迴圈
MID. 微硬
SOFT 軟
(4)
FR
FF
RR
RF
RR
RF
FOAM TIRE SET / 高速海綿胎組
PD7647 , 26mm
PD7648 , 30mm
(2)
Item No.
Transmitter
RF Module
Receiver
Servos
Accessories 8306
Specifications
8306-S1 8306-C1
COUGAR P3i
FM26/27/40/75 MHz
TR-402-F
N/A
ACE R/C S1903x1 ACE R/C S1016x1
Switch harness x 1, Battery case x 1, Mounting
Hardware and Frequency Flag Set x 1
No.8306
3CH Computrerized
Radio Control System
數位槍型遙控器
