INSTALLING BLOWER
ACCESSORY IN DIRECT-VENT
FIREPLACE SERIES BHDV,
(E)BDV, DDV, HDV, CDV, CHDV,
DVF(E), OR DVFH

Continued

12. Peel off the backing paper and stick the supplied wiring dia-

gram decal on the outer casing bottom approximately 3" to the
right of the blower speed control (Figure 26).

WARNING: Failure to position the parts in accor-

dance with supplied diagrams or failure to use only
parts specifically approved with this heater may result
in damage or personal injury.

13. Connect or reconnect gas supply following instructions given

in the owner's manual supplied with your fireplace.

WARNING: A qualified service person must con-

nect fireplace to gas supply. Follow all local codes.

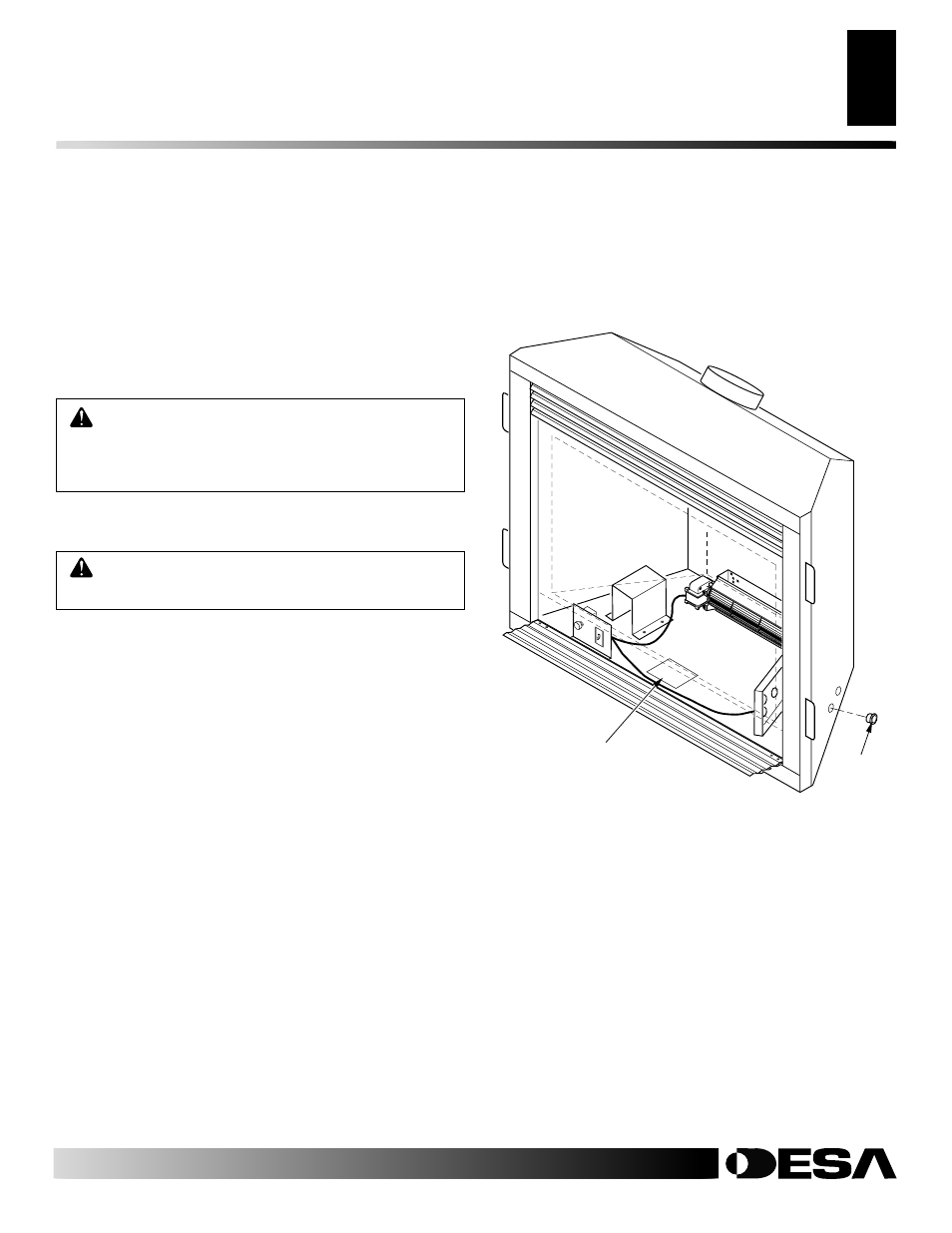

Figure 26 - Installing Plastic Bushing for Power Cord and
Locating Wiring Diagram Decal

Plastic
Bushing

Wiring Diagram Decal

INSTALLING BLOWER ACCESSORY IN DIRECT-VENT FIREPLACE SERIES

BHDV, (E)BDV, DDV, HDV, CDV, CHDV, DVF(E), OR DVFH
