Instruction Manual > 692-1600 Page 2 of 4
The following instructions apply to the 02 and Up
1. If you need additional access to the fuel injector connectors, you can remove the Idle Air
solenoid by removing the two 5/16’’ bolts holding it on and loosening the Torx #20 screw on
throttle cable bracket. Make sure to use locktite when refitting the two 5/16” bolts and correctly
position the o-ring when reattaching.
DOCUMENT NO. 0018 REV. A

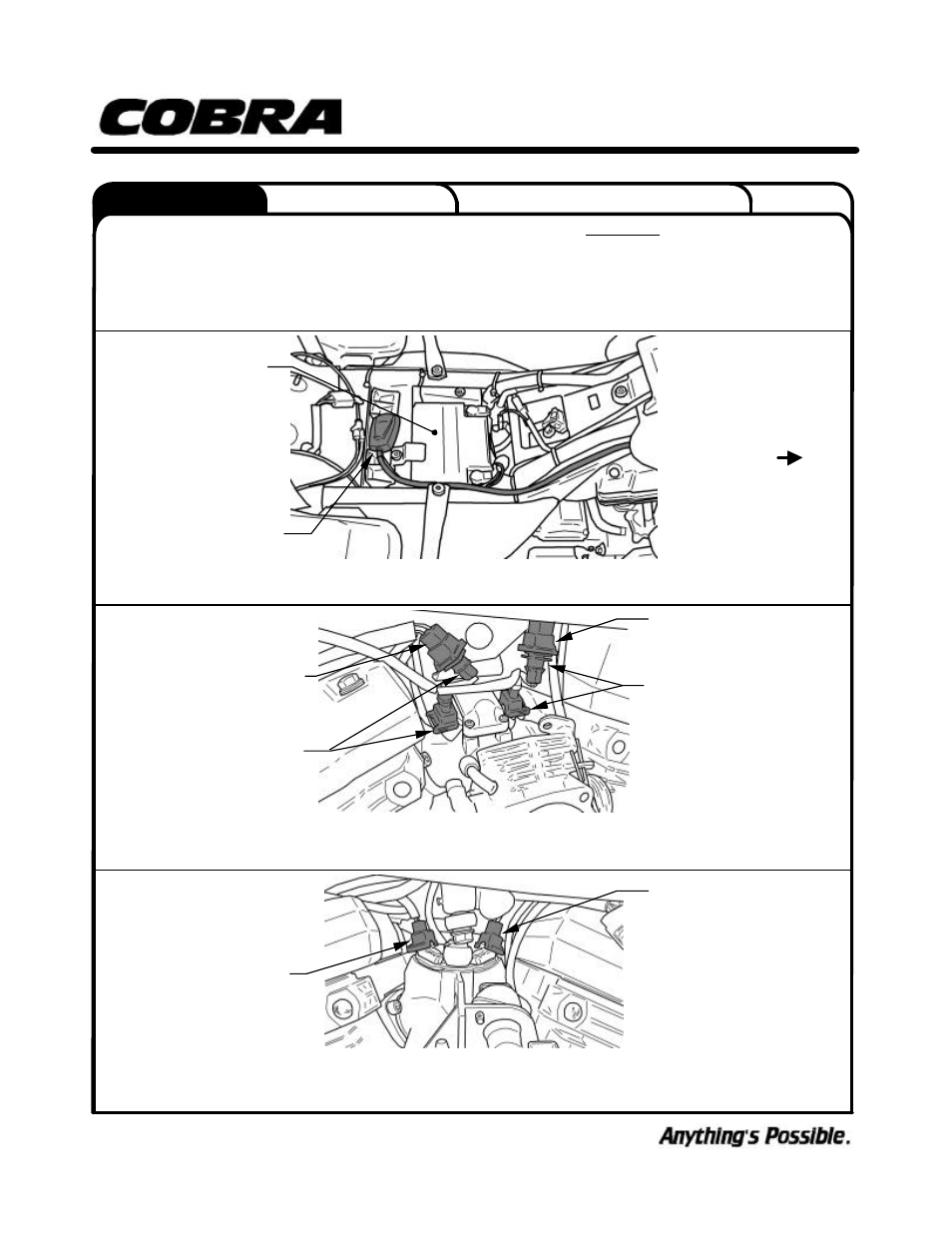

FIGURE 1
(02’ and Up shown, 95’ – 01’ similar)
FIGURE 2
(02’ and Up W/Fi2000 installed and Air Injector Solenoid removed)
FIGURE 3
(95’ – 01’ W/O Fi2000 installed)
Fi2000 MODULE
FRONT Fi2000 INJECTOR
CONNECTORS
ORGINAL FRONT HD
INJECTOR CONNECTOR
REAR Fi2000 INJECTOR
CONNECTORS
ORGINAL REAR HD
INJECTOR CONNECTOR
FRONT
BATTERY
ORGINAL REAR HD
INJECTOR CONNECTOR
ORGINAL FRONT HD
INJECTOR CONNECTOR
