15
Introduction

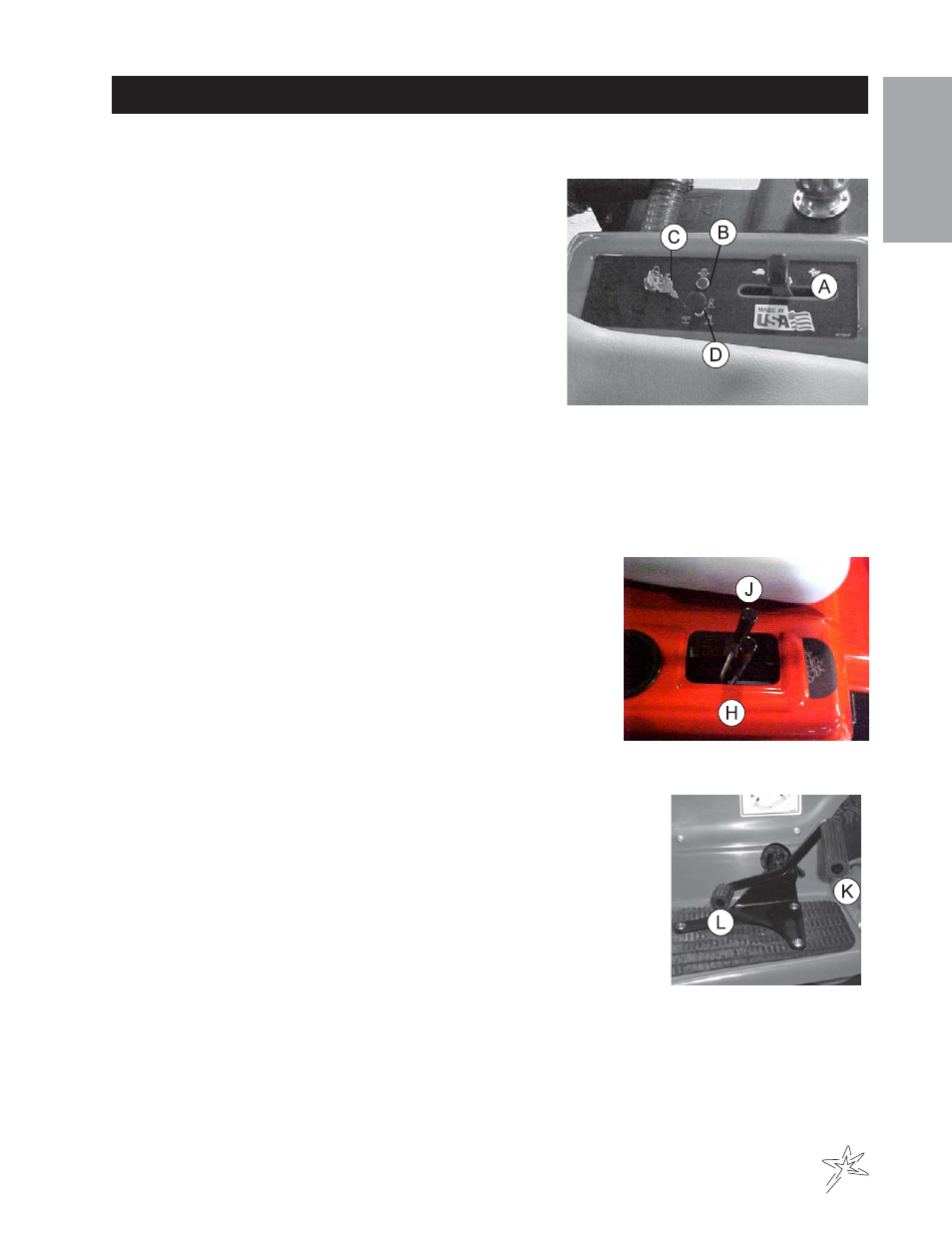

CONTROLS & INSTRUMENTS SUPER STAR
INSTRUMENTS LOCATED ON THE CONTROL PANEL
A. Hand Throttle - The hand throttle is used to regulate
engine speed.
B. Oil Light - The oil light should come on when ignition is
on without engine operating. The oil light will light when
the oil pressure is low. If oil light should come on, shut off
engine immediately and find the cause.
C. Ignition Switch - The ignition switch has three positions:
Off-Run-Start.
D. Choke - Pull choke control knob up to close choke plate
when starting a cold engine. A warm engine may not
require "choking" to start.
STEERING
Acquaint yourself with the steering before operating the machine. This machine is equipped with a tilt steering mecha-
nism. The lever to tilt the steering wheel is located at bottom of rubber boot on steering column. Hold the lever down
and adjust the steering wheel to a comfortable position.
RAKE LIFT LEVER
This lever (H) raises and lowers all rear attachments. To raise push forward,
to lower pull back. Release the lever when attachment is in proper position
and lever will return to neutral.
LIFT ASSEMBLY LEVER
This lever (J) raises and lowers all attachments under the center of the ma-
chine. To raise push forward, to lower pull back. Release the lever when at-
tachment is in proper position and lever will return to neutral.
SEAT ADJUSTMENT
Seat adjustment lever is located under front of seat on left side. It allows seat
adjustment forward or backward for operator's comfort. The seat also has the
start safety switch in it. To start the Super Star the operator must be sitting on
the seat.
RIGHT FLOORBOARD
Foot Pedal controls forward and reverse motion. Pushing down on the front of
pedal (K) will give you a forward motion and pushing down on rear pedal (L)
will give you a reverse motion. When pedal is released the hydrostatic trans-
mission centers and stops the vehicle. Ground speed is proportional to how
far the foot pedal is depressed.
HOUR METER/ VOLT METER
Located on the right front fiberglass cowling. The hour meter indicates hours of ma-
chine operation. The hour meter operates when ignition switch is on. The volt meter
indicates battery voltage. When starting the battery, voltage should not drop below 9 volts, with the key on, engine not
operating the voltage should be 12 volts. With engine operating at 3600 rpm the voltage should read around 14 volts.
