Introduction
The V2V-D2H-01 Converts DVI-D Video with S/PDIF
Stereo Digital Audio to HDMI.
Applications
• Home Theater
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studios
Features
• Converts One DVI+ SPDIF input signal to one
HDMI 1.1 signal
• Supports DVI-D input
• Supports audio SPDIF input
• HDMI output : Supports up to 1080p/60HZ, same
format as input
• HDCP 1.1 protocol compliant
• Supports CEC
• Audio formats supported : DTS-HD/Dolby-trueHD/
LPCM7.1/DTS/Dolby-AC3/DSD
• LED indication
• Supports output up to 60 feet over AWG26 cable
• No loss of quality
• Installs in minutes

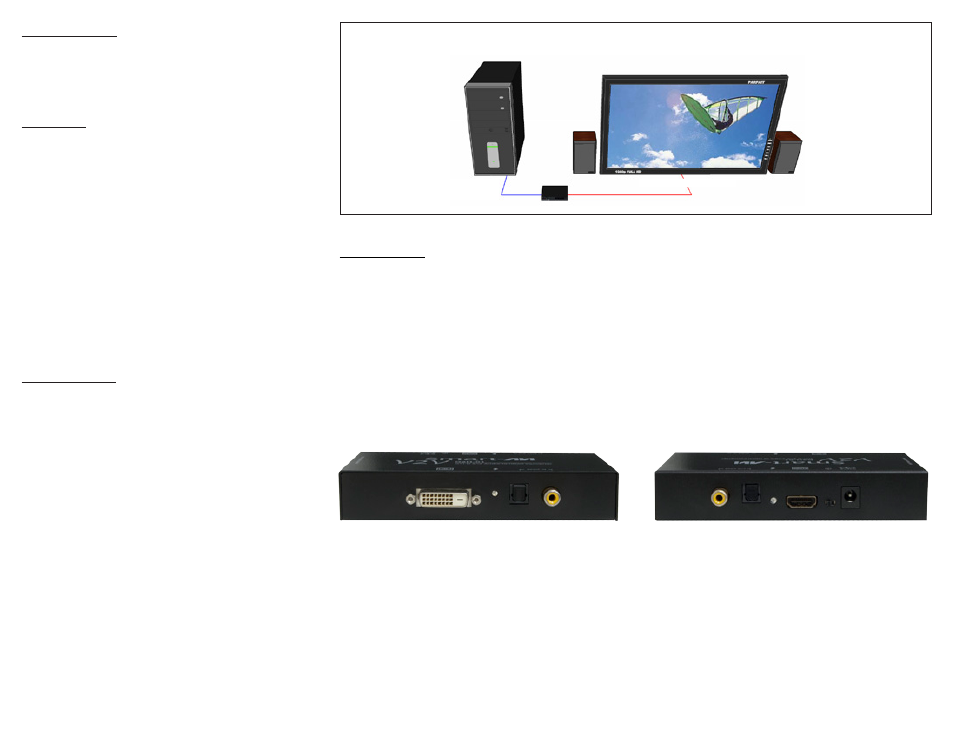

Product - Installation Diagram
Installation
1. Connect a DVI input device to the DVI input on the
V2V-D2H-01.
2. Connect a digital audio input device.
3. Connect a digital audio output device.
4. Connect an HDMI display to the HDMI output on
the V2V-D2H-01.
5. Connect the power cord to the V2V-D2H-01.
6. Power on the input devices and the display.
V2V-D2H-01
HDMI DISPLAY AND SPEAKERS DVI-D AND
AUDIO SOURCE
V2V-D2H-01 Front V2V-D2H-01 Rear
