Introduction
An HDMI cable carries the video and the audio in one
signal. However, many TVs and displays have poor
quality sound or no sound at all. With the HSA-100 HDMI
Separator you can separate your audio signal from the
HDMI and send it to external speakers, an audio receiver
without digital inputs, or amplifier without digital
inputs etc. The HDMI Separator supports optical or
analog L/R audio in all digital audio formats including
5.1/7.1 Surround.
Applications
• Security
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studio
Features
• Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.1
• Supports HDMI Sample Rates up to 192 kHz
• Supports Optical Sample Rate up to 48 kHz
• Supports TMDS clock frequency rate 225MHz
• Supports high-bit-rate (HBR) audio
• HDMI cable distance testing showed that with
1080p 8bit resolution, the input & output can run
up to 15 meters
• Low power consumption
Installation
1. Connect an HDMI input device to the HDMI IN
connector on the HSA-100.
2. Connect a digital audio output device (SPDIF) or
the stereo audio RCA outputs.
3. Connect an HDMI display device to the HDMI OUT
connector on the HSA-100.
4. Connect the power cord to the HSA-100.
5. Power on the input devices, speakers and the
display.

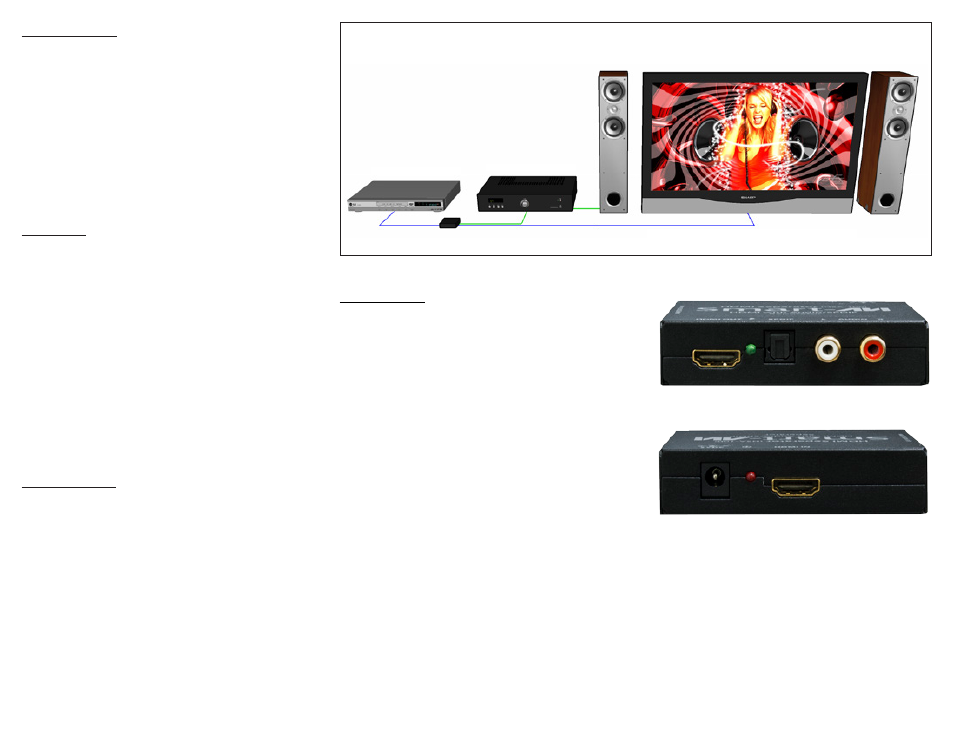

HSA-100 Front
HSA-100 Rear
Product - Installation Diagram
HSA-100 HDMI HDTV AND HOME THEATER SPEAKERS
HDMI VIDEO SOURCE AMPLIFIER
