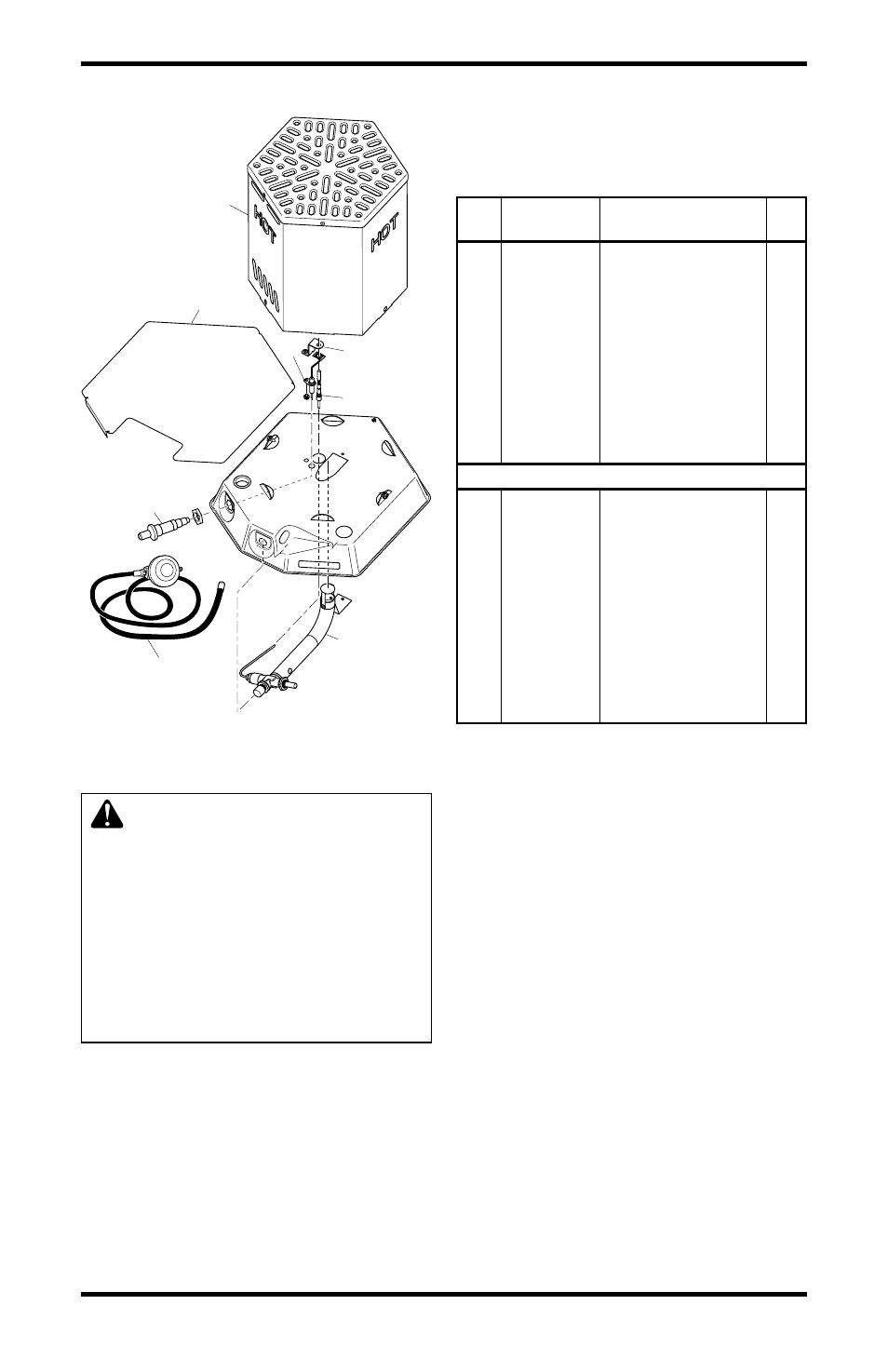

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
MODELS
RCCP25
TCC25
RCP25V
TC25V
REM25V
This list contains replaceable parts used in your
heater. When ordering parts, follow the instructions
listed under Replacement Parts of this manual.
5
6
2
1
4
7
8
3
REPLACEMENT PARTS
WARNING: Use only original
replacement parts. This heater
must use design-specific parts.
Do not substitute or use generic
parts. Improper replacement
parts could cause serious or fa-
tal injuries. This will also protect
your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), either
contact your nearest Parts Central or call DESA
Heating Products (US) at 1-866-673-6040 or
DESA Industries (CAN) at 1-905-826-8010.
When calling DESA, have ready
• your name and address
• how heater was malfunctioning
• purchase date
• model and serial numbers of your heater
In most cases, we will ask you to return the part to
the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), either con-
tact your nearest Parts Central listed in the Autho-
rized Service Center booklet supplied with heater or
call DESA Heating Products (US) at 1-866-673-6040
or DESA Industries (CAN) at 1-905-826-8010 for
referral information.
When calling DESA, have ready
• model number of your heater
• the replacement part number
KEY PART
NO.
NO. DESCRIPTION QTY
1 101880-01 Shell Assembly 1
2 101864-01 Burner Assembly Kit 1
3 102445-01 Piezo Ignitor w/ Nut 1
4 103933-01 Thermocouple
Bracket
1
5 101878-01 Electrode Ignitor 1
6 099236-01 Thermocouple Kit 1
7 112776-01 Hose & Regulator
Assembly
1
8 112392-01 Base Shield 1
PARTS AVAILABLE - NOT SHOWN
111677-04 RCCP25 Decal 1
111677-05 RCP25V Decal 1
111677-06 REM25V Decal 1
102597-02 TCC25 Decal 1
102597-03 TC25V Decal 1
111348-04 Warning Tag 1
111348-06 Warning Tag 1
111348-05 Operation Tag 1
111348-07 Operation Tag 1
112398-01 US Rating Label 1
112398-02 CAN Rating Label 1
