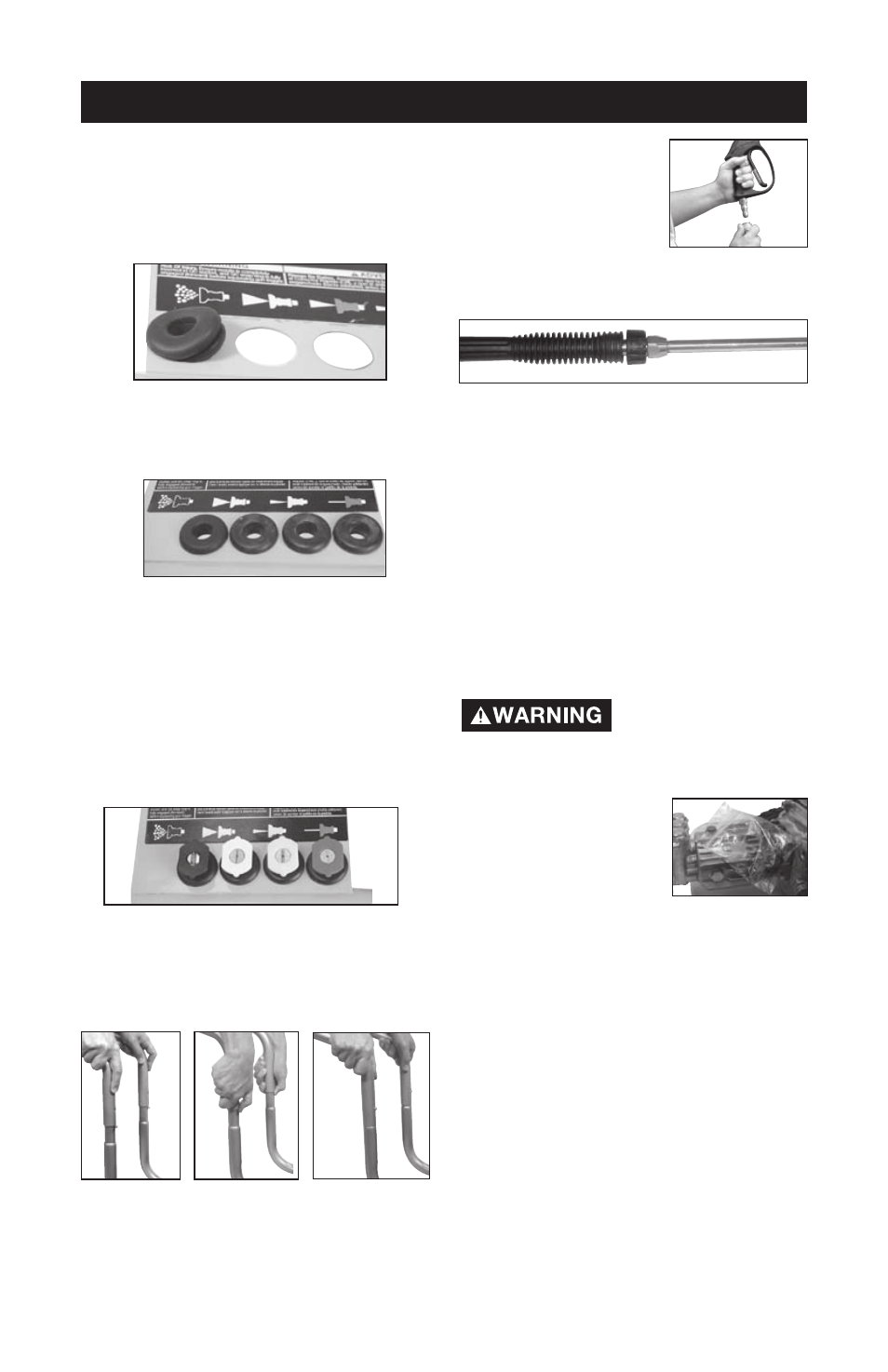

ASSEMBLY INSTRUCTIONS
5. Connect wand to gun. Tighten
securely.
4. Attach high
pressure hose
to gun. Tighten
securely.
3. Place handle assembly onto
frame, depress the snap buttons,
and slide the handle assembly onto
the frame until snap buttons snap
into place.
1. To Assemble Quick Connect
Grommets:
a. Squeeze grommet and place
into hole, fitting groove to
rim.
b. Push grommet into place.
c. Repeat steps until all
grommets are assembled.
2. To Assemble Quick Connect
Nozzles:
a. Remove four colored quick
connect nozzles from plastic
bag and insert them into
correct grommet. NOTE:
Nozzles are color coded to
match colored nozzles on
panel.
NOTE: The high pressure pump was
filled with oil at the factory. The oil in
the high pressure pump was designed
to last the life of the pump. If there is
a problem with the pump contact an
Authorized Service Center.
6. Add engine oil (supplied)
to engine. Refer to Engine
Owners Manual supplied by
engine manufacturer for correct
procedure.
NOTE: There will be a slight amount of
oil in the engine from factory testing.
The shipping plug
must be removed
and replaced with the dipstick/oil
plug before operating pressure
washer.
7. Using an 11/16"
wrench, remove
shipping plug
from pump
by turning it
counterclockwise. Discard plug.
8. Remove dipstick/oil plug from
plastic bag and install into pump,
tighten securely.
