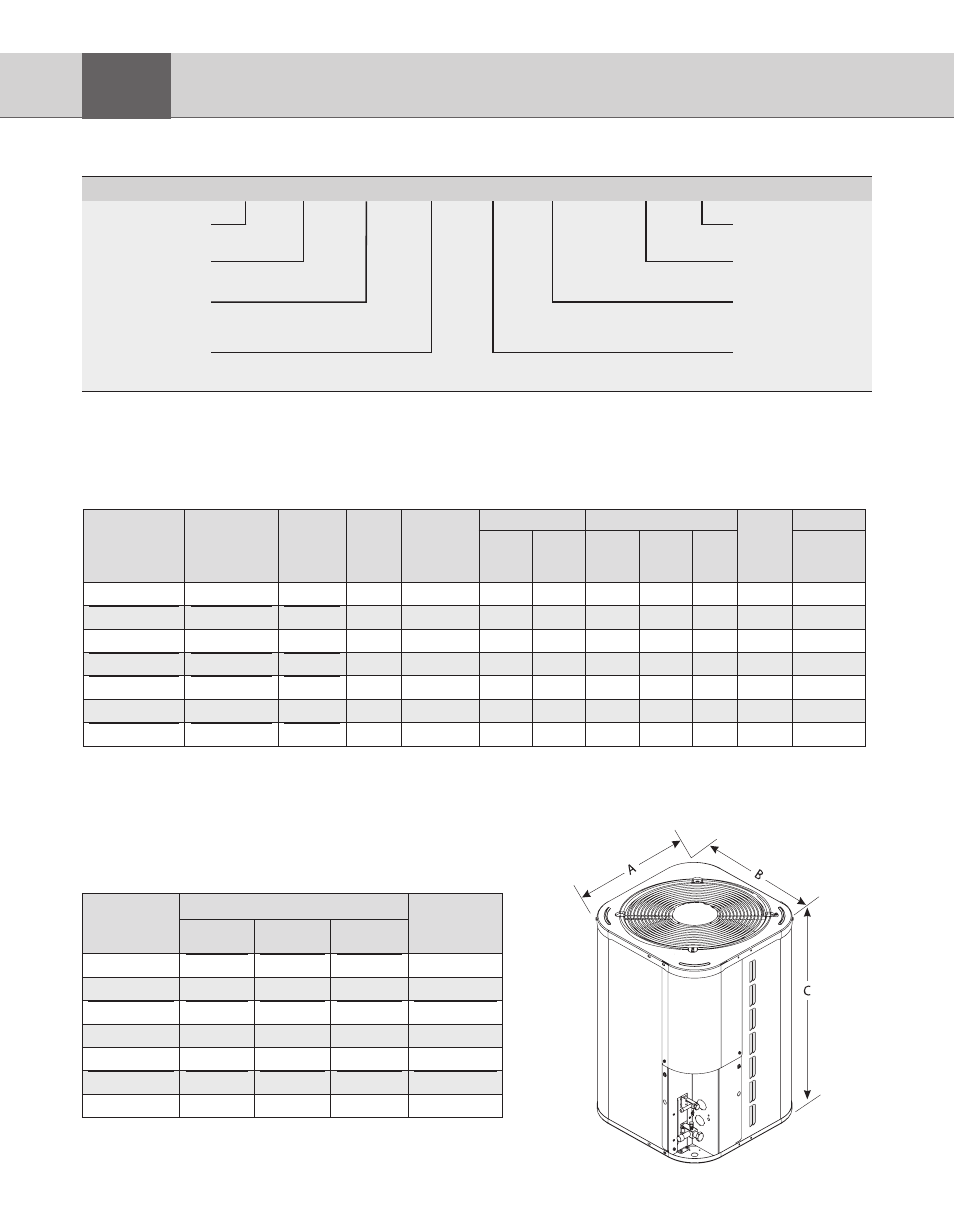

Page 2: Dimensions (in.) and sound ratings, 2hp14 split system heat pump
2HP14 Split System Heat Pump
seer
14
2HP14 Split System Heat Pump
seer
14
2
HP
14
B
36
P
-
1
A
Model Number Guide
Refrigerant – 2 = R22
AC = Condenser
HP = Heat Pump
14 - 14 SEER Nominal
Family / Coil Protection
B = Non-Louvered
L = Louvered
A = Service Level
Revision Code
Voltage
P - 208-230v/60hz
Single Phase
Nominal Capacity
36 - 36,000 Btuh
Model
Voltage/ Hz/
Phase
Voltage
Range
Min.
Circuit
Amp.
Maximum
Over
Current
Device
(amps)
Compressor
Fan Motor
Refrig.
Charge
(oz.)
:
Weight (lbs.)
Rated
Load
(Amps)
Locked
Rotor
(Amps)
Full Load
Amps
Rated
HP
Nom.
RPM
Wire Guard/
Louvered
2HP14*18P
208-230/60/1
197 - 253
11.1
20
8.3
41
0.7
1/10
1075
139
162/174
2HP14*24P
208-230/60/1
197 - 253
14.6
25
10.3
56
0.7
1/10
1075
131
175/187
2HP14*30P
208-230/60/1
197 - 253
16.0
25
12.2
61
0.8
1/5
1075
160
187/200
2HP14*36P
208-230/60/1
197 - 253
18.4
30
13.5
73
0.8
1/5
1075
177
195/208
2HP14*42P
208-230/60/1
197 - 253
22.2
35
16.5
95
1.4
1/4
1075
188
222/239
2HP14*48P
208-230/60/1
197 - 253
23.7
40
18.0
104
1.4
1/4
1075
273
224/241
2HP14*60P
208-230/60/1
197 - 253
26.0
40
19.2
137
2.0
1/3
1075
252
275/292
Electrical and Physical Data
* = B, L
Dimensions (in.) and Sound Ratings
Model
Dimensions
B, L
Sound Rating
(dBa)
A - width
(in.)
B - depth
(in.)
C - height
(in.)
2HP14*18P
30-3/4
30-3/4
25.5
78
2HP14*24P
30-3/4
30-3/4
25.5
79
2HP14*30P
30-3/4
30-3/4
29.5
79
2HP14*36P
30-3/4
30-3/4
29.5
79
2HP14*42P
30-3/4
30-3/4
41.5
78
2HP14*48P
30-3/4
30-3/4
41.5
78
2HP14*60P
30-3/4
30-3/4
41.5
78
* = B, L
