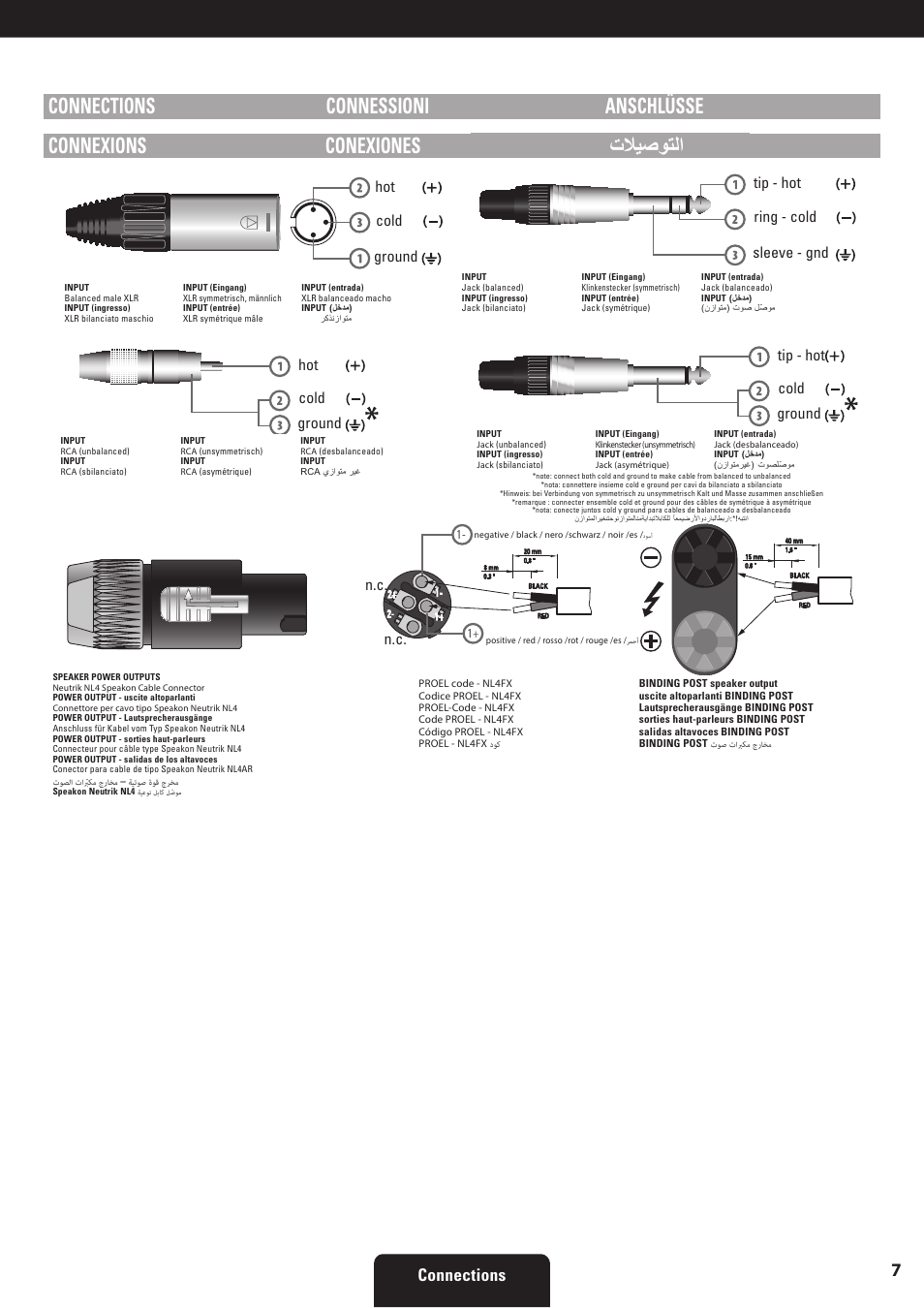

Connections, Sleeve - gnd tip - hot ring - cold, Ground hot cold – Proel HPX series User Manual

Page 7: Ground tip - hot cold, Positive / red / rosso n.c, Negative / black / nero, Channel 1 positive canale 1 positivo, Channel 1 negative canale 1 negativo, Output 1, Bridge positive n.c

Text mode
Original mode

Connections, Sleeve - gnd tip - hot ring - cold, Ground hot cold | Ground tip - hot cold, Positive / red / rosso n.c, Negative / black / nero, Channel 1 positive canale 1 positivo, Channel 1 negative canale 1 negativo, Output 1, Bridge positive n.c | Proel HPX series User Manual | Page 7 / 47
