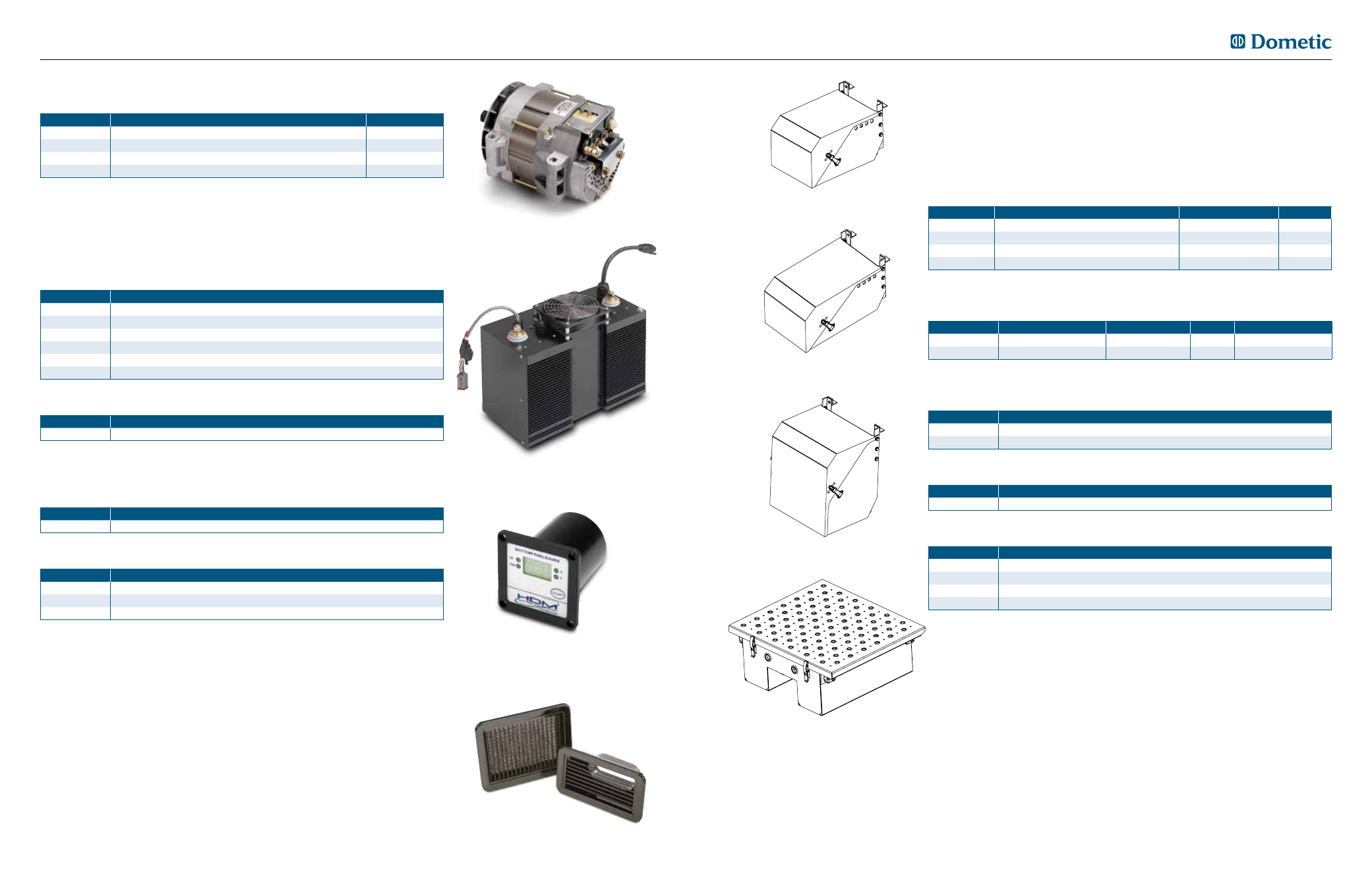

Air Conditioning and Heating Accessories for Truck HVAC Systems by Dometic
Alternator
Inverter/charger model #4220507 shown
Fuel gauge model #4220506 shown
3
2
Leece/Neville alternators are high-capacity for rapid and full recharging of
batteries.
Dometic Model
Description
Battery Profile
710035063
270 amp pad mount with internal regulator
4 or less batteries
710035089
270 amp J180 mount with internal regulator
4 or less batteries
710035096
320 amp pad mount using an internal regulator
5 or more batteries
710035095
320 amp J180 mount using an internal regulator
5 or more batteries
Inverters change DC current into AC current. Dometic has partnered
with HDM, an experienced inverter manufacturer, to provide a series of inverters
that will allow a Dometic system to start and run efficiently. Dometic/HDM inverters
are available as an inverter only or an inverter/charger with a shorepower pass-
through. The efficiency of this inverter approaches 90% and will not degrade as it
powers the system over time.
Dometic Model
Description
4220507
Inverter/charger, 2000 watts and 50 amp charger, Group 31 battery size
4220505
Inverter only, 2000 watts, Group 31 battery size
4220515
Inverter only, 2000 watts, no switch for Day Cabs, Group 31 battery size
4220516
Inverter only, 1800 watts, Group 31 battery size
4220518
Inverter only, 1800 watts, open frame – not for air conditioning; house loads only
4220517
Inverter only, 350 watts, ideal for TVs, computers, and other light loads
The Circuit Breaker protects the inverter and cables connected to the inverter.
Dometic Model
Description
4123420
Circuit breaker – 200 amp DC
The Battery-Fuel Gauge indicates the state of the battery system. The toggle
allows one to monitor: a) voltage, b) current, c) capacity remaining, and d) hours
remaining.
Dometic Model
Description
4220506
Battery fuel gauge (DOM/HDM) 2 kW
Diesel-Fired Heater options:
Dometic Model
Description
710035050
Espar D2 Airtronic, controlled only by Dometic HVAC Controller
710035067
Espar D2 Airtronic, with separate control
710035055
Espar D5 Hydronic Heater
Discharge and Return Air Grilles are available in different sizes for a variety
of applications. All grilles are black and compliment truck interiors. They are easy
to install, with mounting frames and snap-on covers. Each system installation
requires at least one discharge grilled and one return air grille. The grilles connect
to the system with flexible ducting. Please refer to the Auxiliary Remote (L-
2317) and Self-Contained (L-2327) HVAC Systems spec sheets for a chart of
recommended duct and minimum grille sizes for various system capacities. Price
sheets list available sizes.
Battery boxes by Dometic provide a dry and secure place for the batteries
providing power to Dometic HVAC Systems. Ruggedly constructed of aluminum,
Dometic battery boxes are attached with an extremely strong clamping device and
are installed in minutes. They are available empty, or loaded and assembled with
Group 31 AGM batteries, inverter, circuit breaker, holddowns and all connecting
cables. Surfaces made from 1/4" and 1/8" 5052-H32 aluminum; clamps and
channels made from 6061-T6 aluminum; steel angle iron made from 1/4" steel;
hardware is metric equivalent of Grade 8.
Dometic Model
Description
Dimensions (W x H x D)
Weight
710035107
Battery box, holds 6 Gp. 31 AGM batteries, 2-levels
25.9
" x 26.3" x 20.6"
73 lbs.
710035108
Battery box, holds 4 Gp. 31 AGM batteries, 1-level
20.4
" x 15.1" x 30.9"
57 lbs.
710035109
Battery box, holds 3 Gp. 31 AGM batteries, 1-level
20.4
" x 15.1" x 27.4"
52 lbs.
710035119
Battery box, in-frame, holds 4 Gp. 31 AGM batteries
29.7
" x 12.4" x 33.7"
55 lbs.
Dometic specifies and recommends Group 31 batteries from the
following manufacturers. Use only batteries with 3/8” posts.
Dometic Model
Description
Manufacturer P/N
CCA
RC min @ 80 F
1066003
Exide GP 31 AGM Battery
XRF31D
925
200
1066004
Deka GP 31 AGM Battery
8A31DT
800
190
The Battery Separator prevents backflow of current between two banks.
There will be no voltage drop across the separator.
Dometic Model
Description
4192000
Battery separator 200 amp bi-directional
4192001
Battery separator 200 amp uni-directional
Dometic’s Battery Security Kit ensures a firm electrical connection.
Dometic Model
Description
710035069
Battery security kit for 4 batteries; contains special lock nuts and grease
Electrical Wiring Kit options:
Dometic Model
Description
4163713
Shorepower inlet with cable to inverter connections
4163714
Receptacle and “Y” to inverter and receptacle
4163710
Extension kit, inverter to HVAC, 13.5
'
710035049
Shorepower cord, 50
', 10.2, 20 amp rated
Battery Box model #710035109 shown
Battery Box model #710035108 shown
Battery Box model #710035107 shown
Battery Box model #710035119 shown
Supply and discharge
air grilles shown
