Installing the water heater:
For increased energy efficiency, use pipe
insulation. Please install the insulation
according to the diagram above, making sure to insulate all the way to the top. Do not
cover any drain or pressure relief valve(s).
Do’s
q
Do follow all installation instructions
covered in this manual.
q
Do check inlet gas pressure to ensure
that it is within the range specified on
the rating plate.
q
Do provide adequate air for combustion
and ventilation as discussed in the
Instruction Manual and the National Fuel
Gas Code (CAN/CGA B149 in Canada).
q
Do maintain proper clearances to
combustibles and non-combustibles as
specified on the nameplate.
q
Do ensure that the venting system complies
with the guidelines found in the Instruction
Manual and National Fuel Gas Code
(CAN/CGA B149 in Canada).
q
Do contact local gas company to ensure gas
meter and gas piping are adequately sized.
q
Do use teflon tape on water line
connections and fittings.
Don’ts
q
Don’t block or restrict Air Intake
Opening located on the front cover
of the water heater.
q
Don’t remove the front cover unless
absolutely necessary. This should only be
done after being examined by a qualified
service technician.
q
Don’t install this product where standing
water may occur.
q
Don’t use pipe dope on water line
connections and fittings.
During Installation of this water heater…
Hot and Cold Pipe Insulation Installation
Insulation Blankets
Insulation blankets, available to the general
public for external use on gas water heaters,
are not necessary. The purpose of an
insulation blanket is to reduce the standby
heat loss encountered with storage tank
heaters. This water heater does not store water
making an insulation blanket unnecessary.
The manufacturer’s warranty does not cover
any damage or defect caused by installation,
attachment or use of any type of energy
saving or other unapproved devices (other
than those authorized by the manufacturer)
into, onto or in conjunction with the water
heater. The use of unauthorized energy saving
devices may shorten the life of the water
heater and may endanger life and property.
The manufacturer disclaims any responsibility
for such loss or injury resulting from the use
of such unauthorized devices.
CAUTION: If local codes require the
application of an external insulation
blanket to this water heater, pay careful
attention to the following so as not to
restrict the proper function and operation
of the water heater:
l Do not cover the air inlet, flue outlet or
operating and warning labels attached to
the water heater or attempt to relocate them
on the exterior of insulation blanket.
WARNING: If local
codes require external
application of insulation
blanket kits the
manufacturer’s
instructions included
with the kit must be
carefully followed.

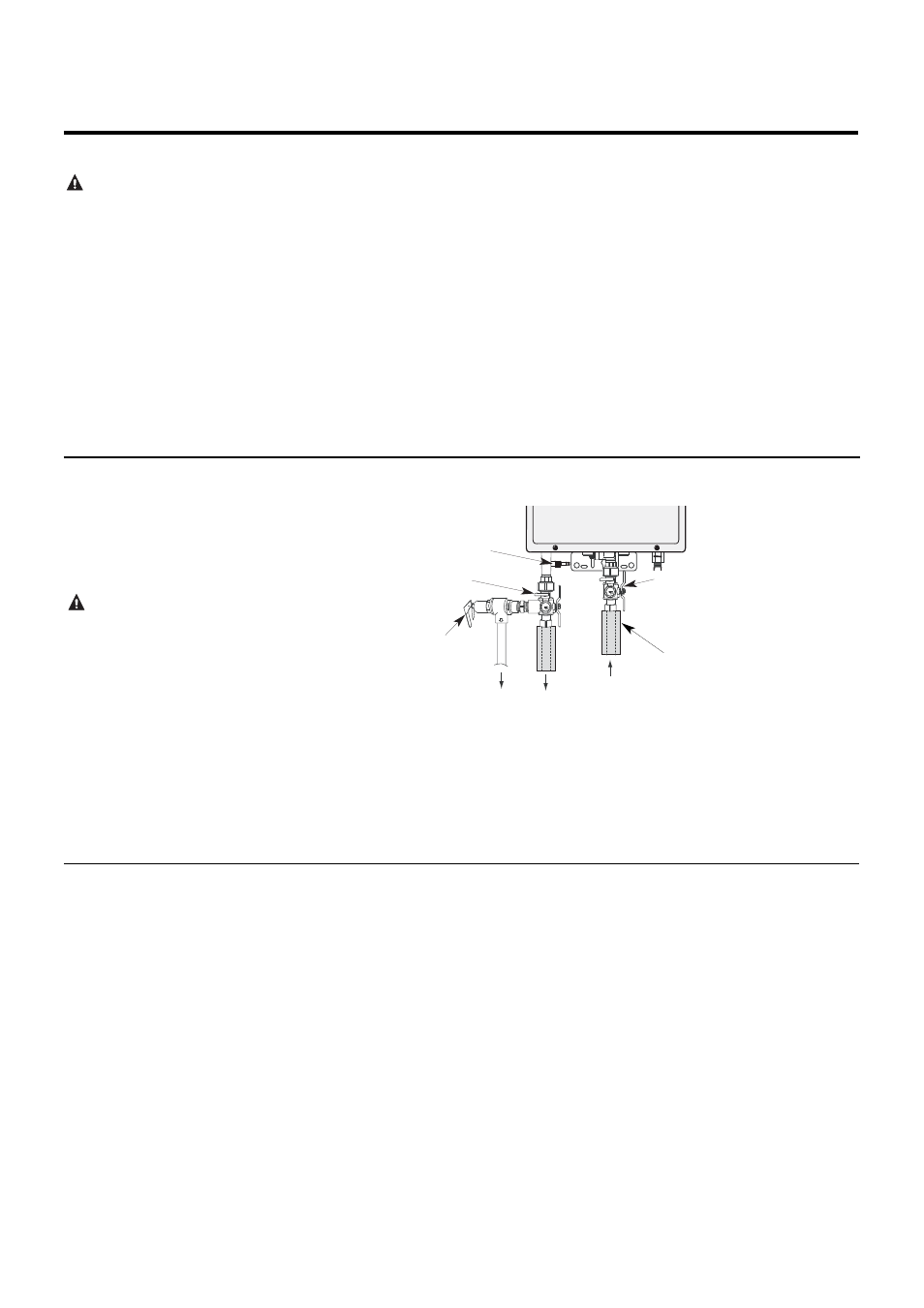

NOTICE: The hot and cold
pipes should be insulated as
shown to provide additional
freeze protection.
Water Inlet
Pressure Relief
Valve
Drain Valve
Hot Water Service
Valve Cold Water
Service Valve
WARNING: In case the
pipe insulation is not rated
for the appropriate
weather conditions install
electric heat tracing or
equivalent to prevent
freezing of the pipes. Do
not insulate or block drain
valve on the hot outlet
fitting. If the pipes are
allowed to freeze, the water
heater and the pipes may
malfunction or leak due to
freezing water.
Pipe Insulation
