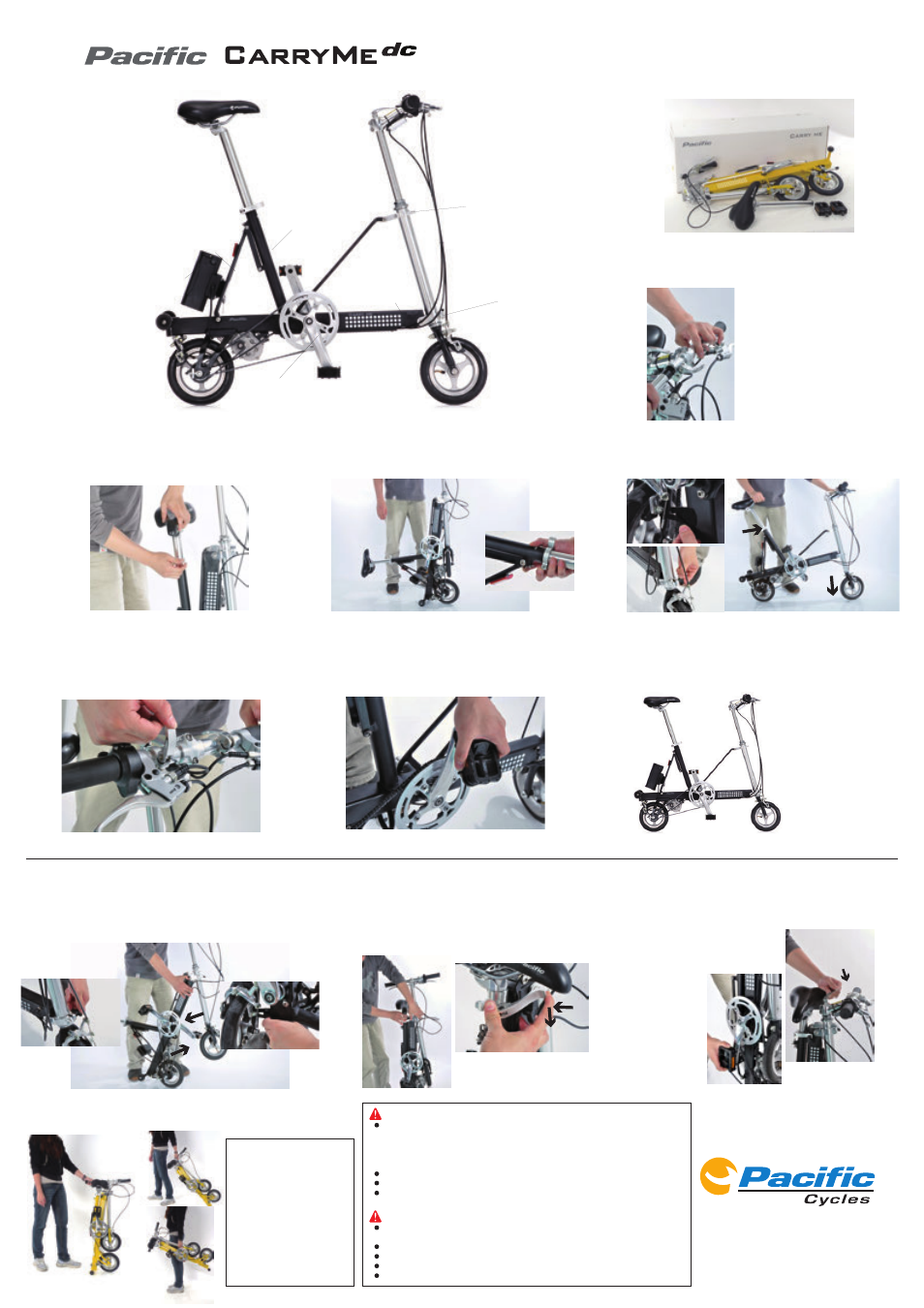

Assembly Procedures
Step 1:
Unpack the box – a 95% assembled bike, a seat
assembly, a pair of pedals and battery box(not shown).
Step 2:
Stand the bike up on its rear wheel and trolley
wheels. Insert both handlebar ends into the center
tube, close the QR levers.
Step 3:
Note:
1) Do not raise the seat higher than the minimum insertion mark.
2) QR hook does not need turned to release QR lever.
Step 4:
Swing the seat tube backwards. Lock the seat stays
to the seat tube.
Step 5:
Open the velcro strip, slide the head tube clamp
toward the bottom of the head tube, and tighten
the wing bolt with your fingers.
Step 6:
Open the QR lever on top of the stem, raise the
stem to desired height, and close the QR lever. -
Step 7:
Install the pedals. Turn the right pedal clockwise
and the left pedal counterclockwise to tighten.
Step 8:
Adjust the height and alignment of handlebar
and seat.
How to fold
Step 1:
Loosen the head tube clamp bolt one turn, slide the
head tube clamp to top by pushing the seat backward,
attach the head tube to the frame by velcro.
Step 2:
Un-lock the seat stays from the seat tube, pull the
seat toward the handlebar, open the seat QR lever,
lower the seat and turn it side-ways, latch the QR
lever to the frame.
Step 3:
Open the stem QR lever, lower the stem and turn
the handlebar sideways, close the QR lever.
Step 4:
Fold the pedals.
You are now ready to pull/push it or carry it!
Don’ts!
• Don’t exceed the maximum
load limits.
• Don’t carry a person or a pet
on the rear carrier.
• Don’t perform stunt riding.
• Don’t jump over curves.
• Don't raise the handlebar
stem beyond the height
limit.
• Don’t raise the seat post
beyond the height limit.
• Don’t over stress any of the
QR levers.
• Don’t ride it off-road.
236 Hsia Chuan Tze, Yung An,
Hsin Wu, Taoyuan, Taiwan
Tel: +886-3-4861231 Fax: +886-3-4861215
Web: http://www.pacific-cycles.com
Email: [email protected]
Important Safety Checklist!
Check and make sure that all clamps are properly tightened.
1) The handlebars should be tight with no play.
2) The head tube clamp should be fully tightened not allowing rotation or play.
3) The seat stay clamp should be fully tightened (step 4).
4) The seat post clamp should be fully tightened not allowing any rotation or sliding.
Do not raise the handlebar stem and seat post up beyond the maximum insertion mark.
Always wear a helmet and abide by all traffic regulations and courtesies!
Rear carrier max. loading: 10kg / Average speed: 13km/h
Max. height: 185cm / Max. loading: 80kg
Important Maintenance Checklist!
1st service inspection after at most 300 km or at latest one months after purchase,
repeat every 3 months.
Parts need lubrication: chain, headset, bearings.
Parts prohibit lubrication: seatpost, seat tube, adjustable stem, rims.
Repeat lubrication every half month or after at most 150 km ride.
Apply lubrication immediately after washing or riding in rainy day.
Owner manual
Handlebar
Stem
Extension
stem
Headtube
Front carrier /
Bottle cage adaptor
mount
Battery
Seat clamp
QR hook
Headtube clamp
Foldable pedal
Crank set(STD)
Seat tube
Seat post
Seat clamp QR
Saddle
Seat stay
Front wheel
Rear wheels
Trolly wheels
QR lever
Motor
Velcro strap
(at left side)
Rotate the seat tube QR lever up and out from
behind the QR Hook on the frame. Open the QR
Lever on the seat tube, insert the seat post and
close the QR lever.
Seat stay clamp
Note:
Do not raise the seat
higher than the
minimum insertion mark.
Note:
No need to turn
the QR hook.
insert fully until
insertion mark disappears
