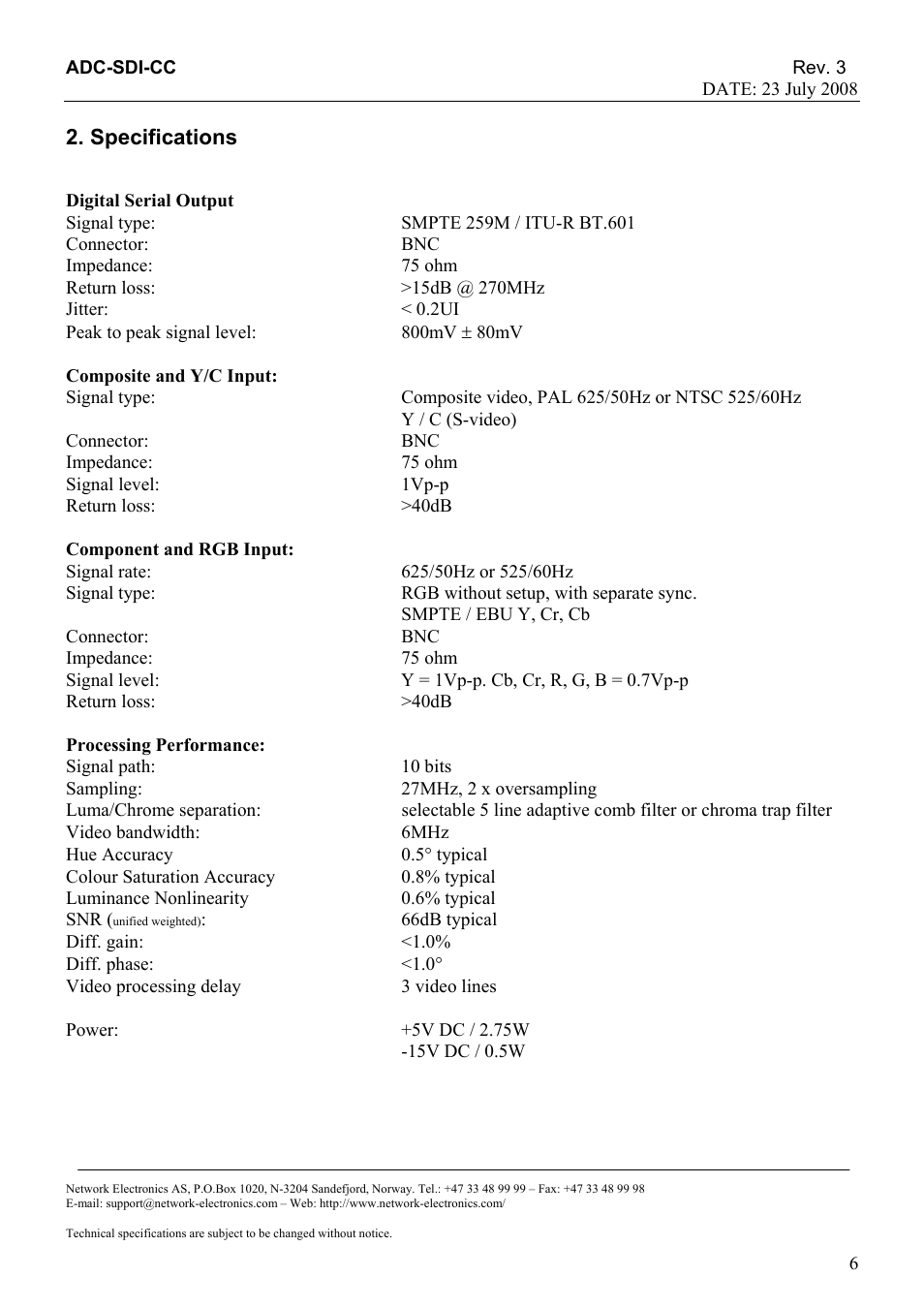

Specifications, Digital serial output, Signal type: smpte 259m / itu-r bt.601 – Nevion ADC-SDI-CC User Manual
Page 6: Connector: bnc, Impedance: 75 ohm, Return loss: >15db @ 270mhz, Jitter: < 0.2ui, Peak to peak signal level: 800mv 80mv, Composite and y/c input, Y / c (s-video)
