3

Configuration

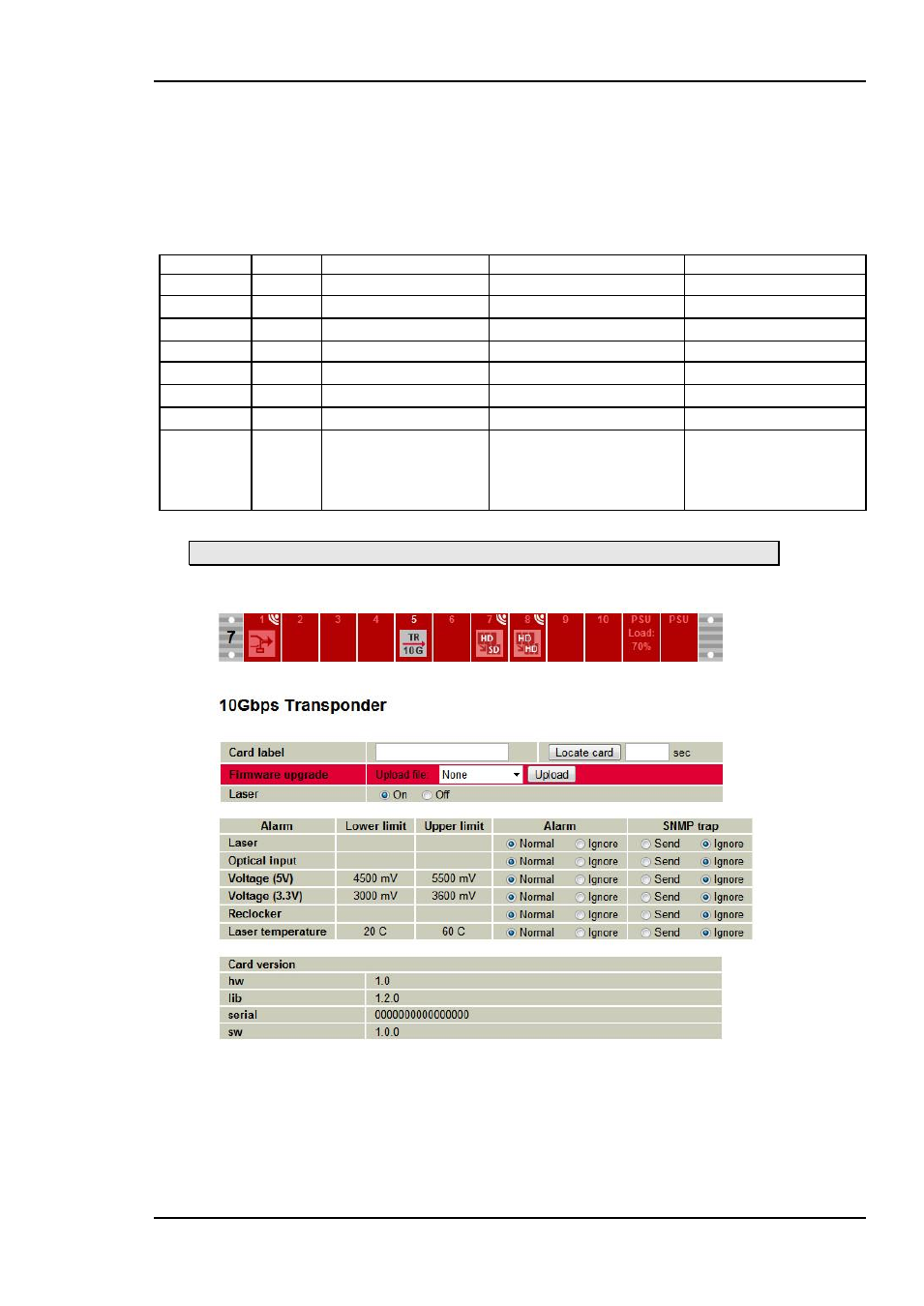

The correct configuration can either be set with a DIP switch or with the GYDA Control
System. The layout of 10G-TR-C1XXX is shown in the drawing below with the DIP
switch to the upper left position.

Switch #

Label

Function, DIP = ON

Function, DIP = OFF

Comment

1

1

Laser enable

Laser disable

2

2

n/a

3

3

n/a

4

4

n/a

5

5

n/a

6

6

n/a

7

7

n/a

8

OVR

Override GYDA
control.
Configuration with
DIP switch

GYDA control.
Configuration with
GYDA

Select configuration
from GYDA

All DIP switches are off when pointing towards the release handle.

Figure 3: Multicon GYDA System Controller settings (optional)
