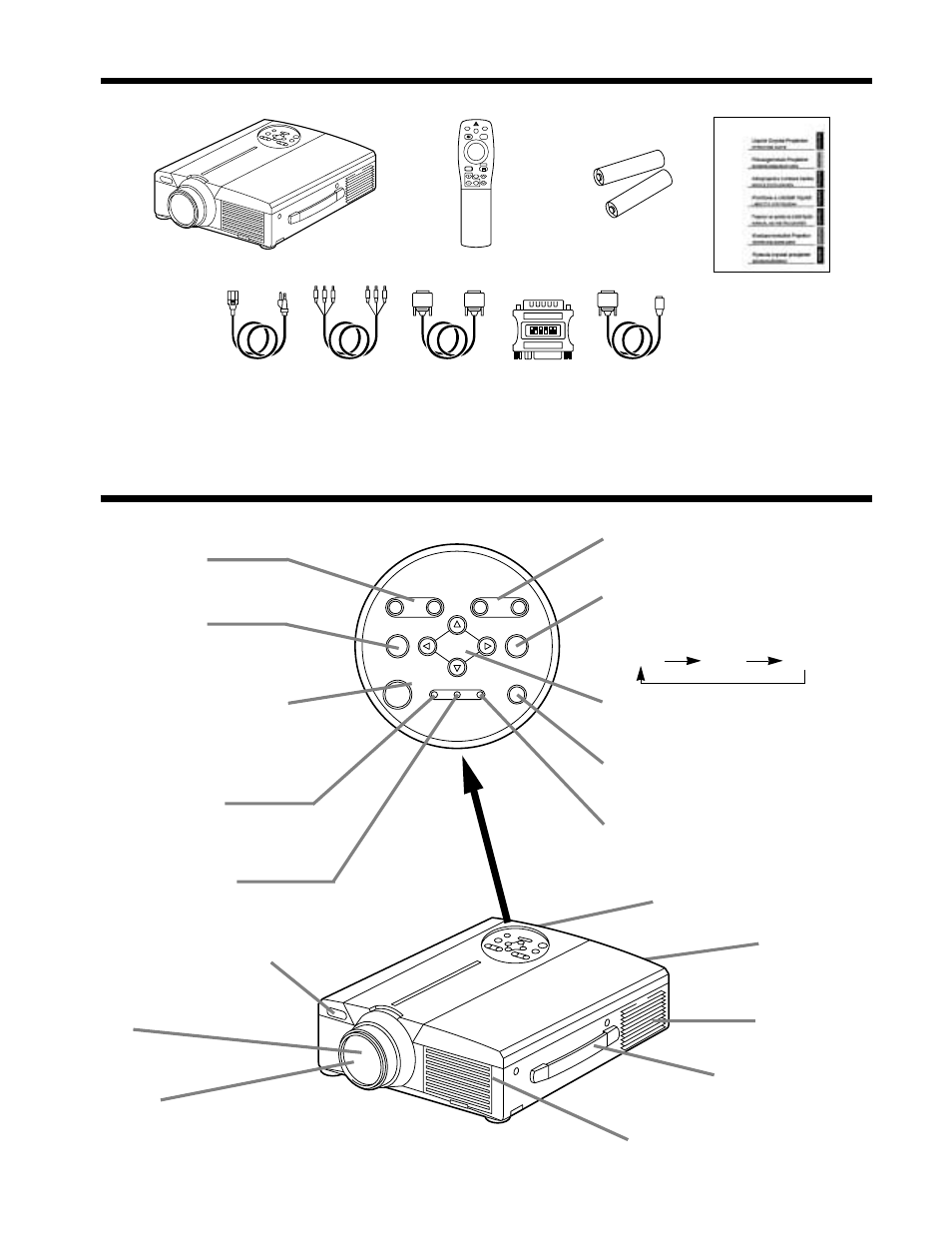

Checking the package Contents
Make sure all of the following items are included in the package. If anything is missing, please contact your
dealer.
• Use the remote control in front of the remote control photoreceptor at a distance
of about 5 m or less and an angle of 30 degrees to the left or right of the center.
Main unit
STANDBY / ON button
Press this button to turn the power on
and off. When turned off, the projector
enters standby status. Refer to page 13
- 14 for details.
MUTE button
This button turns the sound on and
off. Press once to turn the sound off;
then press again to turn the sound
back on.
ZOOM button
Used to adjust the size of the
image. (Refer to page 13.)
POWER indicator
This indicator lights or blinks during standby
and during operation. Refer to page 33 for
details.
TEMP indicator
This indicator lights or blinks when the internal
temperature of the projector rises and when
the fan malfunctions. Refer to page 33 for
details.
Remote control photoreceptor
Lens
Lens cap
Speaker
Cooling fan
(intake side)
Cooling fan
(exhaust side)
Handle
c d
VIDEO
STANDBY/ON
RGB
POSITION
LASER
MENU
RESET
MAGNIFY
FREEZE
OFF VOLUME
Projector unit
3-Conductor
video/Audio cable
RGB cable
(15-15 pin M/M)
Mac adapter
with dip switch
Mouse cable × 3
Power Cord
110V-US
220-UK, Europe
Remote control
Remote control
Batteries
User’s Guide (this document)
ZOOM FOCUS
MUTE INPUT
MENU
POWER TEMP LAMP
STANDBY/ON
RESET
Speaker
RESET button
Used to reset the initial settings.
Refer to page 17 for details.
LAMP indicator
This indicator lights or blinks when the lamp is
off. Refer to page 33 for details.
INPUT button
Press this button to switch the input. The input
changes in the following sequence each time
this button is pressed.
MENU button
Displays the image menu. Refer to page 17 -
21 for details.
FOCUS button
screen. (Refer to page 13.)
RGB1 RGB2 VIDEO
