Dayton DDEMR23322 User Manual

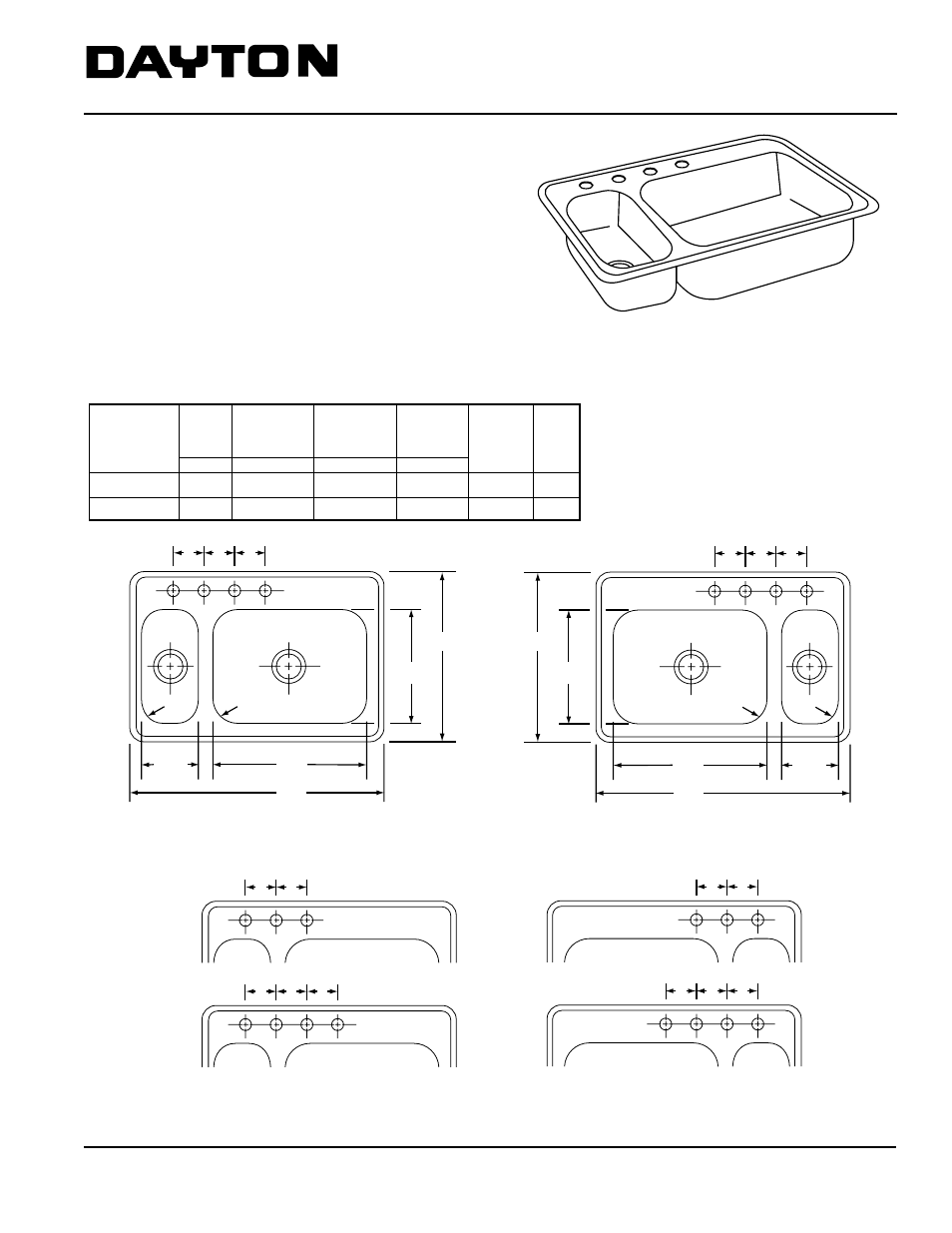

Elkay, Dayton, Hole drilling configurations
Model DDEMR233224 Illustrated
4"
7-1/2"
21"
33"
15-3/4"
22"
4"
4"
3" R
3" R
Model DDEMR23322R4 Illustrated
4"
7-1/2"
21"
33"
15-3/4"
22"
4"
4"
3" R
3" R
GENERAL
Sink bowls are formed of #22 gauge, nickel bearing stainless
steel. Self-rimming.
DESIGN FEATURES
Bowl Depth: 7" (large bowl), 5-1/8" (disposer bowl).
Coved Corners: 3" vertical and 2-1/4" horizontal (large bowl),
1-3/4" horizontal (small bowl).
Finish: Exposed surfaces are polished to a satin finish with
highshine bowl radius.
Underside: Fully undercoated to prevent condensation and
deaden sound.
OTHER
Drain opening: 3-1/2".
NOTE: Unless otherwise specified, sink is furnished with 4
faucet holes as shown.
These sinks do NOT comply with ASME A112.19.3-2000.
Model DDEMR233224
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
Elkay
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2007 Elkay
(Rev. 1/07)
2-33D
elkayusa.com
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Dayton
®
Double Bowl Sink
Models DDEMR23322 and DDEMR23322R
S P E C I F I C AT I O N S
Cutout in
No. of
Countertop
1
1
/
2
" Dia.
Inside
Inside
(1
1
/
2
" Radius
Faucet
Minimum
Model
Overall
Left Bowl
Right Bowl
Corners)
Holes
Cabinet
Number
L
W
L
W
D
L
W
D
L
W
4" Centers
Size
DDEMR23322
33
22 7
1
/
2
15
3
/
4
5
1
/
8
21 15
3
/
4
7
32
3
/
8
21
3
/
8
3 or 4
36
DDEMR23322R
33
22
21 15
3
/
4
7
7
1
/
2
15
3
/
4
5
1
/
8
32
3
/
8
21
3
/
8
3 or 4
36
SINK DIMENSIONS (INCHES)*
*
Length is left to right. Width is front to back
.
4"
4"
4"
4"
4"
4"
4"
4"
4"
4"
3
3
4
4
HOLE DRILLING CONFIGURATIONS
