Dimplex MCN20 - Manual

3 screws
controls thermostat
knob
500
min. 517
616
250
76
52
glass shelf
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE.
Dimensions
(millimetres)
Installation and Operating Instructions
Dimplex Michigan Fire
Model : MCN20 08/19118/3 Issue 3
General
Unpack the heater carefully and retain the packaging for
possible future use, in the event of moving or returning the
fire to your supplier. Loose coals and pebbles are packed
separately within the carton.
The heater is designed for use inset into a 407mm (16") or
457mm (18") wide by 559mm (22") high fireplace opening
see also section “Installation in a fire place opening”.
A 2kw fan heater discreetly positioned in the canopy of the
fire provides heating in cold weather. Switching allows half
or full heat. The manual controls are located in the canopy
(see Fig. 1) and the remote control is packed separately in
the carton.
Before connecting the heater check that the supply voltage
is the same as that stated on the heater.
Please note: Used in an environment where background
noise is very low, it may be possible to hear the motor
which operates the flame effect. This is normal and
should not be a cause for concern.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED.
This heater must be used on an AC ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety warnings and
operating instructions.
For your convenience, the heater is fitted with a rewireable
plug incorporating a 13 amp fuse. In the event of replacing
the fuse in the plug supplied, a 13 amp fuse approved by
ASTA to BS1362 must be used.
Installation in a Fireplace Opening
At the rear of the fire, two adjustable supports are provided
for levelling the fire where the base of the fireplace opening is
raised above the level of the hearth.
Adjust by removing the two screws holding each bracket in
position, then refit the bracket and the two screws in the
required position.
The metal surround may be removed to allow the fire to be
fully inset.
Note: The fire must be positioned a minimum distance of
500mm from a wall as indicated in Fig. 1.
Important Safety Advice:
When using electrical appliances, Basic precautions
should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the
following:
•••••
If the appliance is damaged, check with the
supplier before installation and operation.
••••• Do not use outdoors.
••••• Do not use in the immediate surroundings of a
bath, shower or swimming pool.
••••• Do not locate the heater immediately below a fixed
socket outlet or connection box.
••••• Do not cover the heater. Do not place material or
garments on the heater, or obstruct the air
circulation around the heater, for instance by
curtains or furniture, as this could cause
overheating and a fire risk.
••••• This appliance is not intended for use by children
or other persons without assistance or
supervision if their physical, sensory or mental
capabilities prevent them from using it safely.
Children should be supervised to ensure that they
do not play with the appliance.
••••• In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance
must not be supplied through an external
switching device, such as a timer, or connected
to a circuit that is regularly switched on and off
by the utility.
••••• Ensure that furniture, curtains or other
combustible material are positioned no closer
than 1 metre from the heater.
••••• In the event of a fault unplug the heater.
••••• Unplug the heater when not required for long
periods.
••••• Although this heater complies with safety
standards, we do not recommend its use on deep
pile carpets or on long hair type of rugs.
••••• The appliance must be positioned so that the plug
is accessible.
••••• If the supply cord is damaged it must be replaced
by the manufacturer or service agent or a similarly
qualified person in order to avoid a hazard.

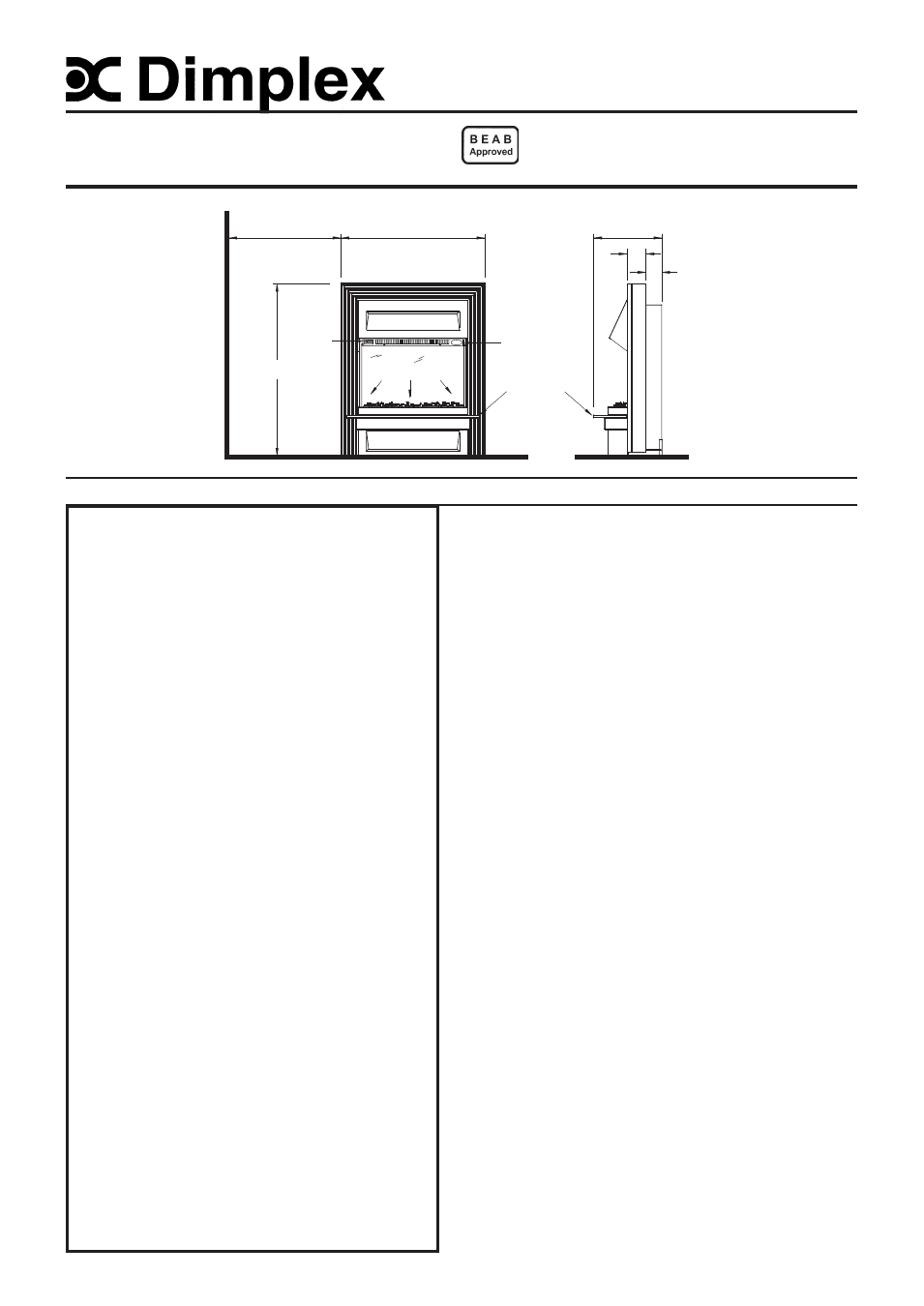

Fig. 1
