Dynabrade PD0502 - Manual (Page 4)

Right Angle Mini-Orbital Sander

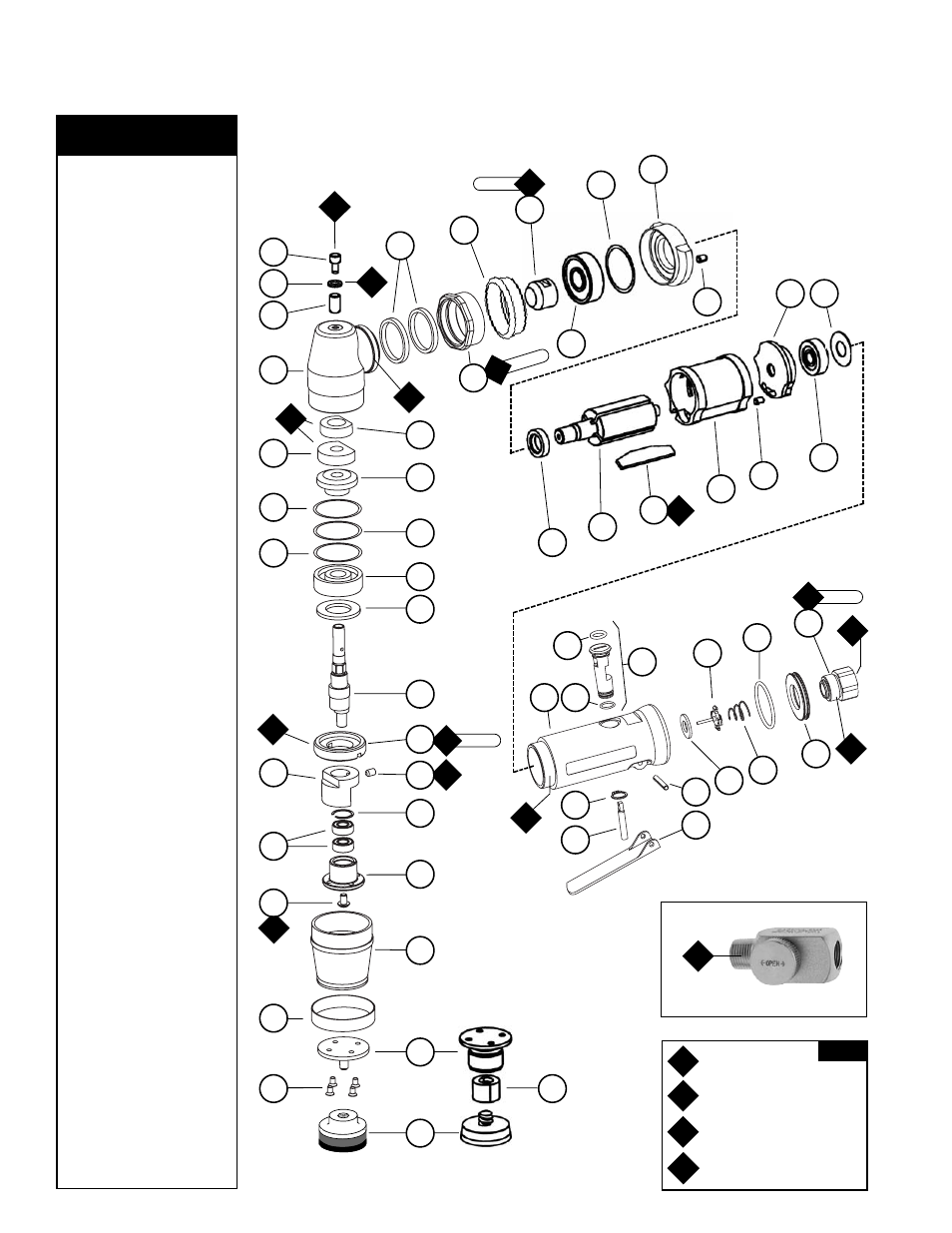

Complete Assembly
Index Key
No. Part # Description
1 54088 Pad - Mdl: 58035
54018 Pad - Mdl: 58037
54031 Pad - Mdl: 58038
2 97175 Screw (4)
3 95615 Roloc ® Shell
4 30701 Plate - Mdl: 58035, 37
30721 Plate - Mdl: 58038
5 30709 Boot Clamp
6 30700 Boot
7 97174 Screw
8 30702 Balancer Shaft
9 30705 Bearing (2)
10 97172 Snap Ring
11 97173 Set Screw
12 30703 Counterweight
13 02035 Lock Ring
14 30704 Shaft
15 01486 Felt Silencer
16 54520 Bearing
17 97118 Shim
18 97117 Shim
19 97116 Shim
20 Gear
02597 Mdl: 58035
02623 Mdl: 58037, 58038
21 02044 Bottom Wick
22 02045 Top Wick
23 02052 Housing
24 02033 Needle Bearing
25 02041 Gear Oil Plate
26 01040 Gear Oil Fitting
27 01728 Felt Silencer (2)
28 01461 Lock Nut
29 01547 Collar
30 Pinion
02598 Mdl: 58035
02624 Mdl: 58037, 58038
31 02649 Bearing
32 54529 Shim (3/pkg.)
33 01478 Front Bearing Plate
34 50767 Pin (2)
35 01479 Spacer
36 02037 Rotor
37 01480 Blades (4/Pkg.)
38 01476 Cylinder
39 02676 Rear Bearing Plate
40 02696 Bearing
41 02679 Shield
42 01448 Throttle Lever
01462 Safety Lock Lever
43 01449 Valve Stem
44 95558 Retaining Ring
45 12132 Pin
46 30710 Housing - Mdl: 58035
30712 Housing - Mdl: 58037
30713 Housing - Mdl: 58038
47 95730 O-Ring
48 01469 Speed Regulator
Assembly
49 01024 O-Ring
50 01464 Seal
51 01472 Tip Valve
52 01468 Spring
53 96065 O-Ring
54 53190 Block Plate
55 01494 Inlet Bushing
2
5
6
8
9
10
12
14
15
16
17
18
19
21
24
23
25
27
29
31
35
46
49
47
45
44
43
42
48
50
52
54
51
53
38
34
40
39 41
36
32
33
34
26
20
22
Adhesive: A
4
= Loctite #680
A
8
= Loctite #567
Torque: N•m x 8.85 = In. - lbs.
Oil: O
1
= Air Lube
W Wicking: W
1
= Gear Oil
O
A
T
KEY
A
8
A
8
A
8
O
1
O
1
W
1
A
4
A
8
W
1
A
8
A
8
A
8
17 N•m T
23 N•m T
23 N•m T
34 N•m
T
4
95745 Flow Control Assembly (1/4" NPT)
Optional Accessory
37
11
7
30
28
13
55
Models:
58035 – 15,000 RPM
58037 – 12,000 RPM
58038 – 12,000 RPM
4
3
1
