4

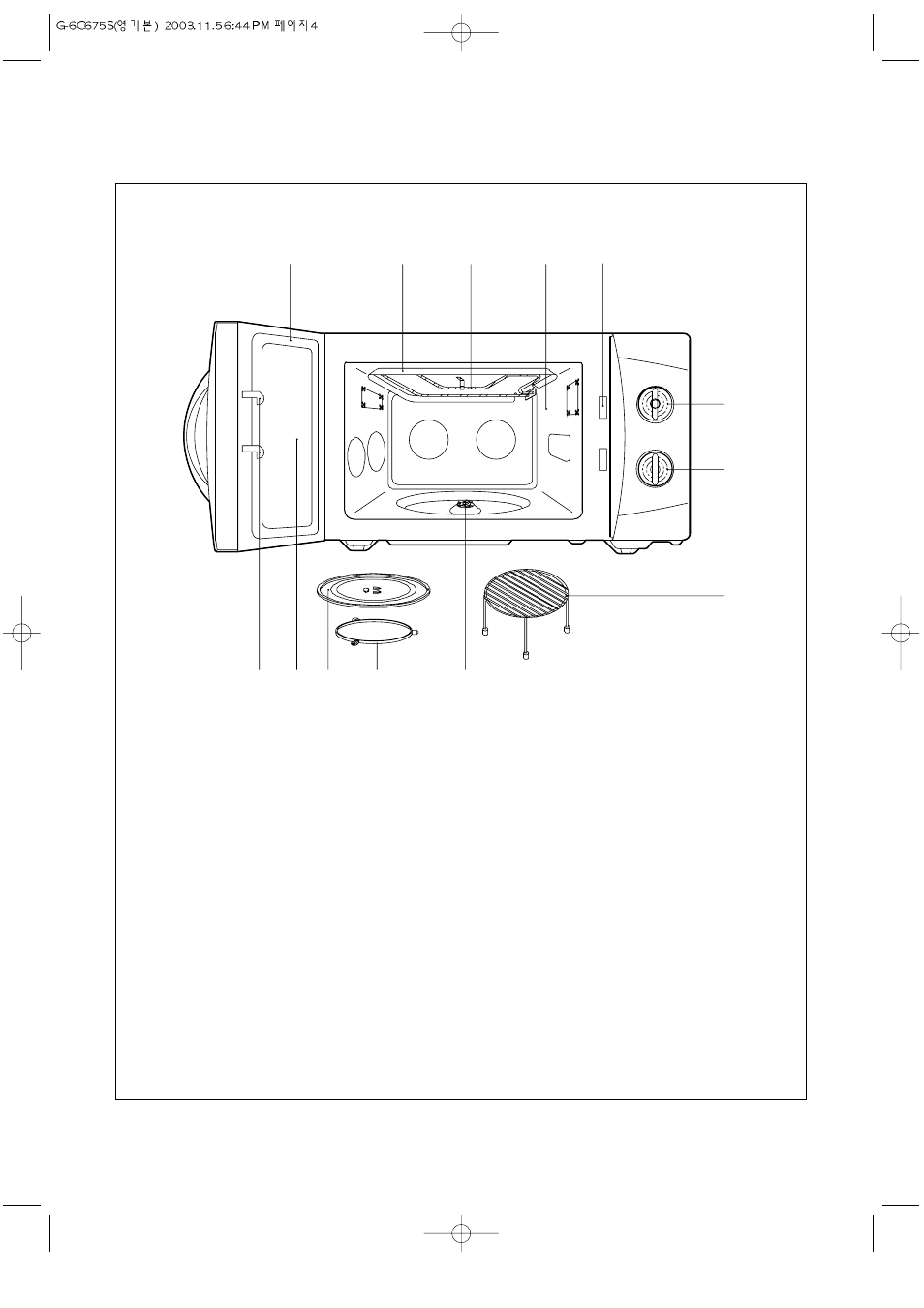

FEATURES DIAGRAM

1

2

3

4

5

6

7

8

e w q 0

9

1

Door seal - Door seal maintains the
microwave energy within the oven cavity and
prevents microwave leakage.

2

Reflector (Insulator Heater)

3

Heating Element

4

Oven cavity

5

Safety interlock system

6

Knob V.P.C - Used to select a microwave
power level.

7

Knob timer - Used in setting cooking time for
all functions.

8

Metal Rack

9

Coupler - This fits over the shaft in the
center of the ovens cavity floor. This is to
remain in the oven for all cooking.

0

Roller guide - This must always be used for
cooking together with the glass cooking tray.

q

Glass cooking tray - Made of special heat
resistant glass. Food in a proper receptacle is
placed on this tray for cooking.

w

Door viewing screen - Allows viewing of

food. The screen is designed so that light can
pass through, but not the microwave.

e

Door hook - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will immediately stop operating.
