QH32DVR4C User’s Manual
9
Chapter 3: Operational Instructions
3.1 Front Panel

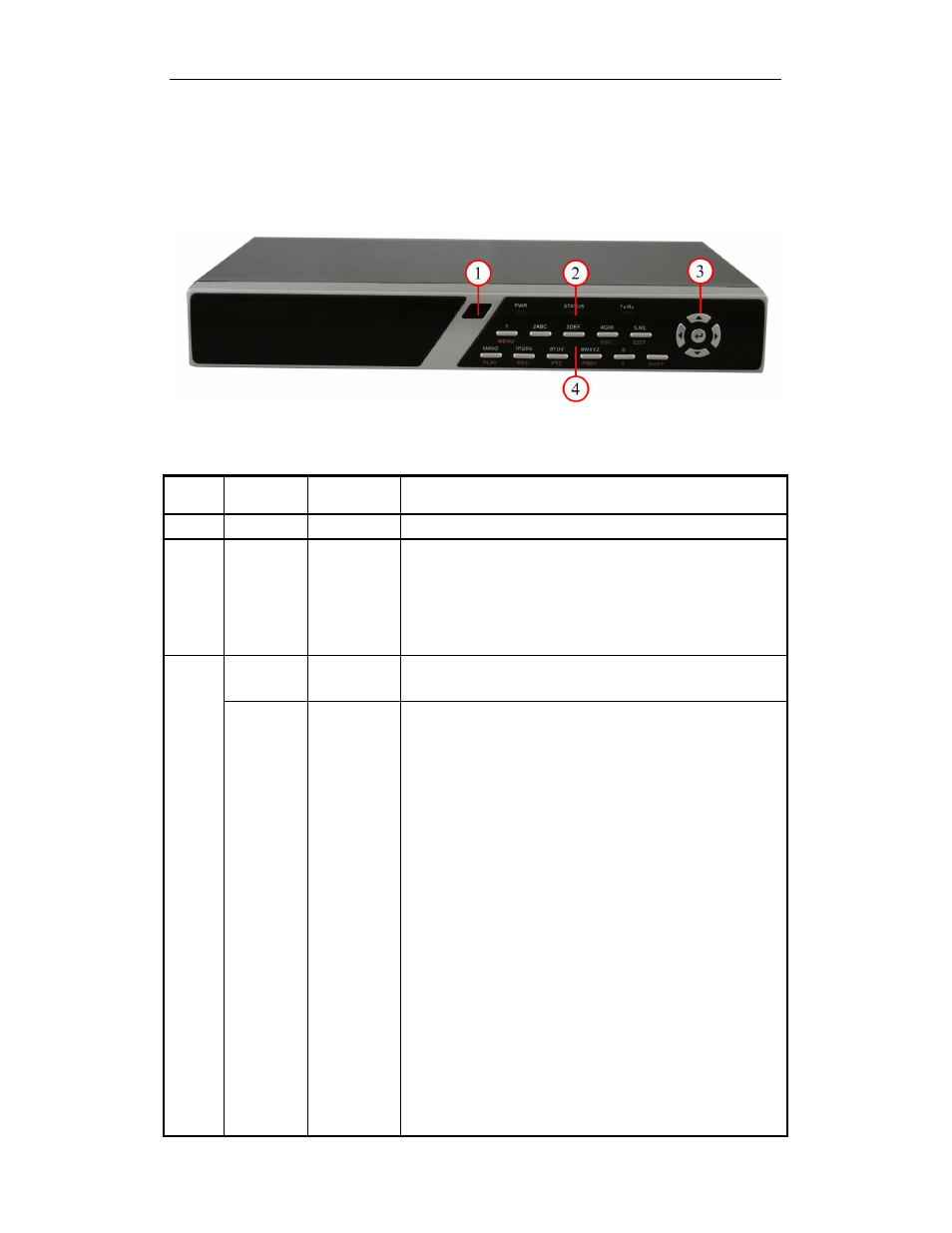

Fig 3-1 Front Panel
Form 3-1 Items on Front Panel
Index Type Name Description
1 Light IR receiver for remote control.
2 Status
Lights
Power
STATUS
Tx/Rx
Green means DVR is working; Red means DVR is powered
off;
Green means you can use IR remote control.
Blinking means data is transmitting.
4 Numeric
Keys
Input number, lower case, upper case character and
symbols.
Function
Keys
MENU
2
3
ESC
EDIT
PLAY
REC
PTZ
PREV
A
1.
Switch preview mode in menu;
2.
Brush control short key 【WIPER】.
3.
Press 【MENU】for more than 5 seconds to cancel
button beep sound.
【ZOOM-】in PTZ control.
【ZOOM+】in PTZ control.
Cancel and back to parent menu.
1.
In edit state, delete the current cursor character;
2.
【IRIS+】in PTZ control;
3.
Select or × to enable or disable.
1.
Local playback;
2.
【AUTO】in PTZ control.
