Directed Audio CSX650 User Manual

Page 6

WOOFER INSTALLATION

Review the

Installation Precautions

section of this guide before proceeding.

1. Place the cutout template against

the mounting surface in the desired
location for the woofer.

2. Draw the speaker hole and

mounting screw locations on the
panel with a marker.

The CSX650 woofer requires a
5-1/2" hole.

3. Remove the cutout template and

carefully cut the speaker hole to the
proper size. If there is a pre-existing
hole that is undersize, mark it and
cut it to the proper size. If the hole is
oversize, it is recommended that a
spacer be built to compensate.

4. Pre-drill the holes for the mounting

screws using a 1/8" drill bit.

5. Route the supplied wires through

the speaker location to the
crossover.

6. Install the screw speed clips if not

installing into a metal panel.

7. Connect the speaker wire to the

woofer taking care to observe
proper speaker polarity.

8. Place the woofer into the hole and

attach woofer and grill as shown
below using the supplied screws.
Take care at this time not to slip
with a tool while mounting or the
speaker could be damaged.

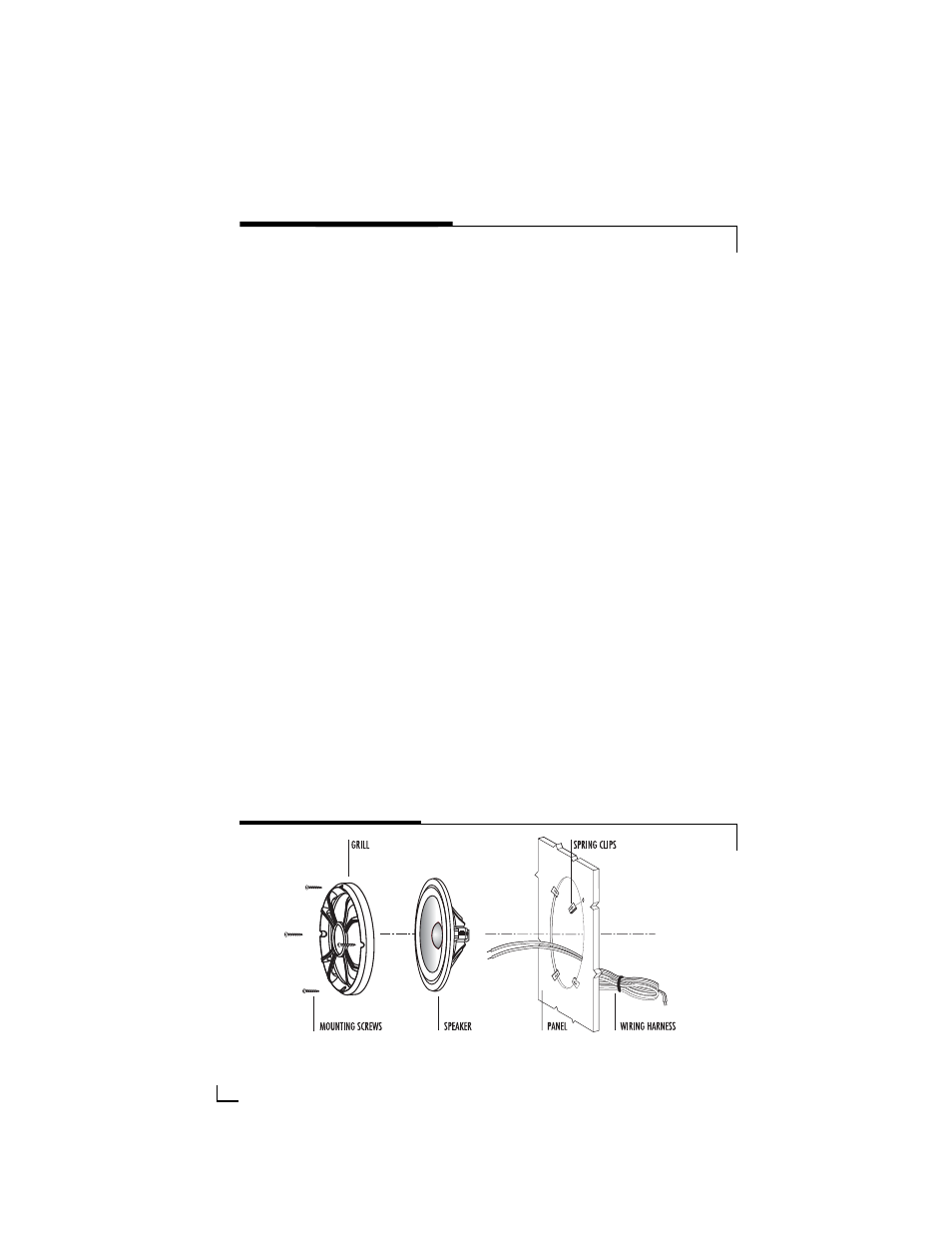

FIGURE 1—WOOFER INSTALLATION
