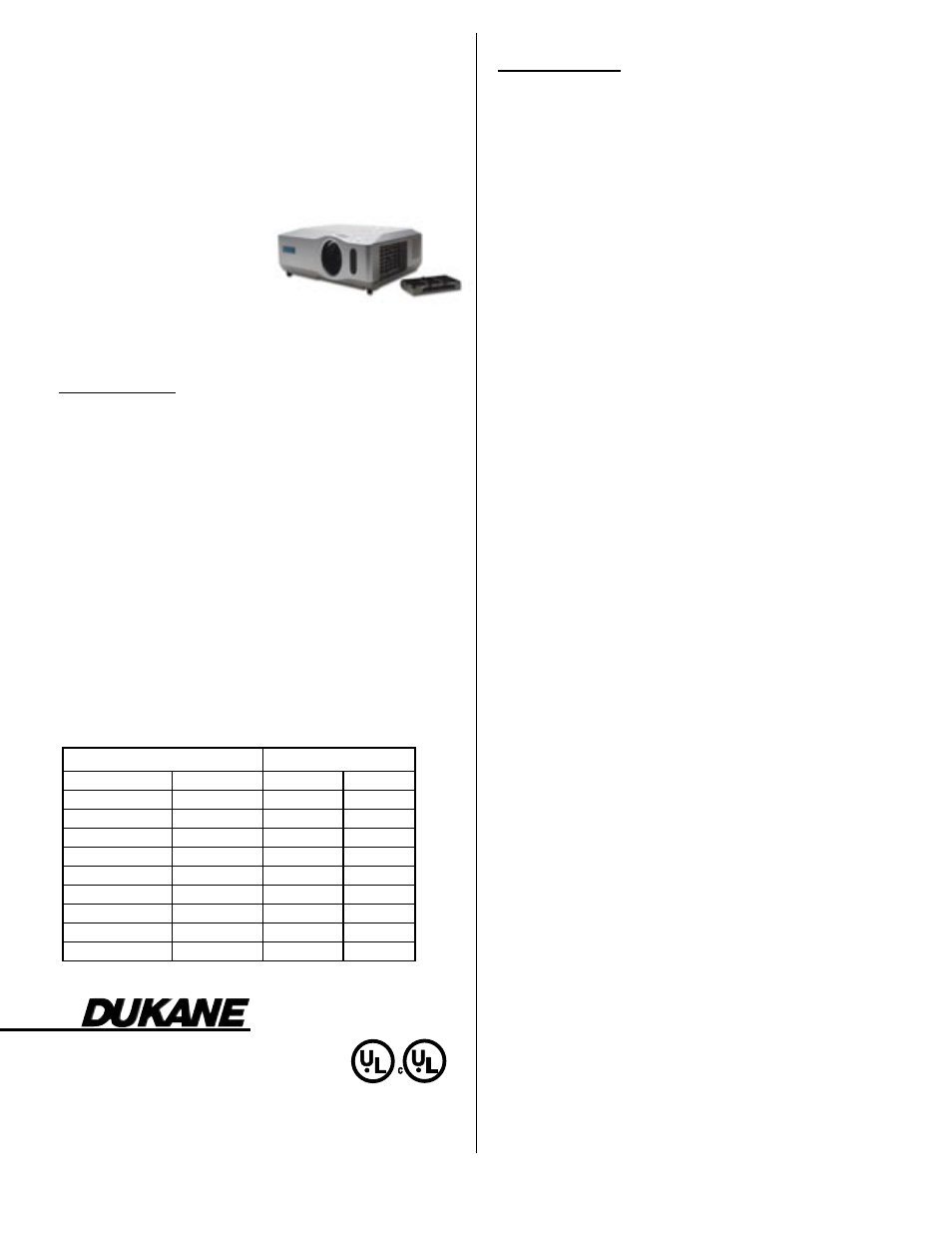

The ImagePro 8755G is a portable LCD projector that
can be used in a variety of applications. With sufficient
brightness for most classrooms and conference rooms
the 8755G is designed to be reliable and easy to
maintain.
Lamp and filter access points
are conveniently located and
new security options make
this projector a wise multime-
dia investment. Filter clean-
ing recommended at 400-500 hour intervals. Simple
one click to remove filter.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
ImagePro 8755G
Portable LCD projector
Specifications 8755G
Image Element 0.63” polysilicon active-matrix TFT x3
Brightness 2200 ANSI lumens
(1800 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400:1
Scanning Frequency fh 15 -106 kHz, fv 50-120 Hz
Lens Manual zoom (F1.6 – 1.8), 1.2X
Lens Throw Ratio 1.46 –1.75:1 throw distance to
image width
Keystone Correction Digital, vertical +/-30 deg
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, SXGA, UXGA
Compatibility Compressed PC and MAC13” and
MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM,
PAL-M, PAL-N,
Component Video, HDTV (1080i, 720p, 576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 220W UHB
Lamp Life 2000 hours (typical) 3000 hours
(whisper mode)
Audio 1 speaker 7 watt
Throw Distance 34” to 423”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack
(1) RCA x 2 (for video)
Outputs, Audio (1) Stereo mini jack
Outputs, Monitor RGB, 15 pin D-sub
Outputs, Control RS-232, 9 pin D-sub
USB Mouse control
Security Kensington lock slot & Security Bar
Fan Level 39dB, ultra quiet
34dB in Whisper Mode
Operating Temperature 41-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 330 watt
Size (WxHxD) 13.4” x 3.9” x 10.6”
Weight 7.7 lbs.
Shipping Weight 17 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power cord,
RGB cable, RCA video cable,
operators manual and soft carry case.
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8755G
Ceiling Mount, Universal; RPM-U
Filter; MU04951
Key features:
• XGA (1024 x 768) resolution
• 2200 ANSI lumens of brightness
• Whiteboard & Blackboard Modes
• Easy maintenance in ceiling mount with lamp access on
top & filter access on side
• Monitor loopthrough & remote mouse control
• Remote control with "My Buttons"
• Built-In Anti-theft security
• Input source naming
• Auto Vertical keystone correction
• HDTV ready & progressive scan
• Kensington lock slot & security bar
• Five Year Warranty and
One Year Peace of Mind Service
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program. 5
YR
8755G Projection Table
Throw Ratio (distance to width), 1.46 1.75
#070018 ImagePro is a registered trademark of Dukane Corporation
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.8 3.4
60 48 5.8 7.0
80 64 7.8 9.3
100 80 9.8 11.7
120 96 11.7 14.1
150 120 14.7 17.6
200 160 19.5 23.5
300 240 29.3 35.3
